Plan No.201647

Built-in Gazebo

A built-in gazebo on the front corner expands the usable porch area and gives this home a unique look. The main floor of this plan features 9'-0" high ceilings to add more volume to this already open design. See also similar plans 201940 & 202940. MATERIALS LIST AVAILABLE FOR SLAB ONLY

Specifications

Total 1597 sq ft

  • Main: 1597
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 1569
  • Garage: 486

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 52'0
  • Depth: 58'0

Roof

  • Max Ridge Height: 26'3
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7.00/12
  • Secondary Pitch: /12

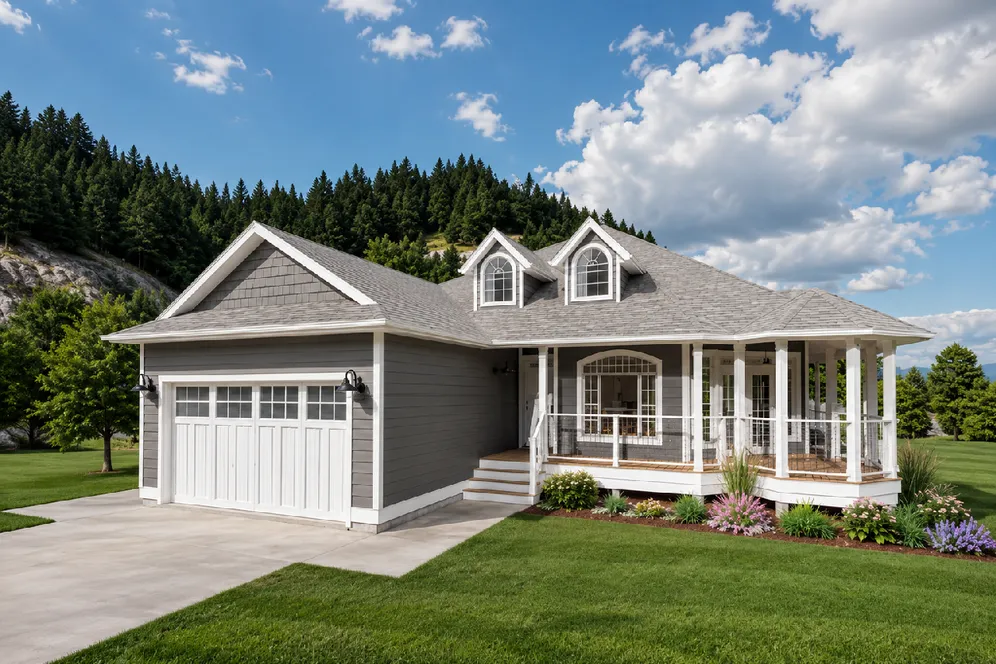

Full Rendering – westhomeplanners.com

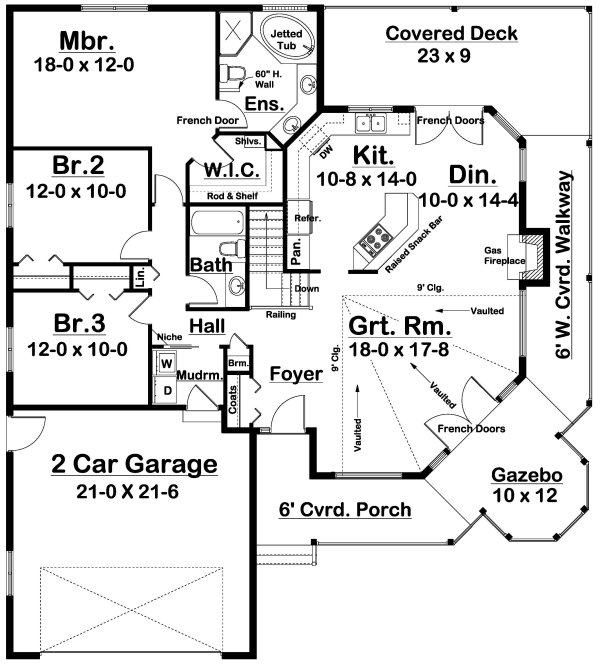

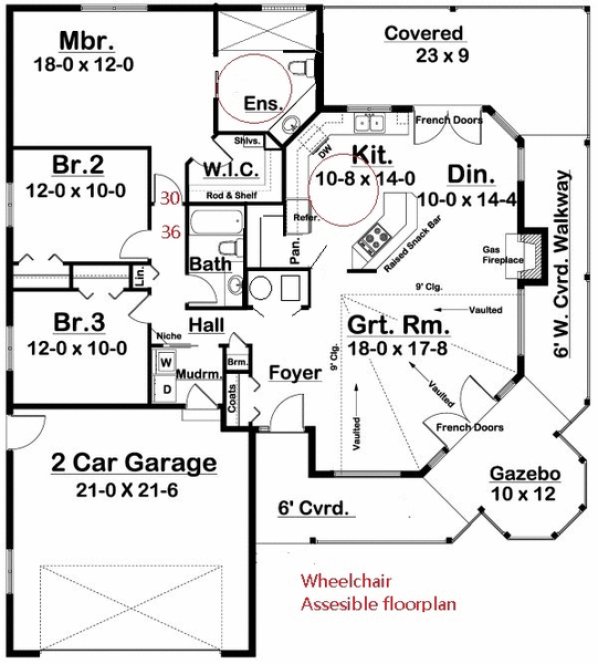

MAIN Plan – westhomeplanners.com
Alt. Slab/Crawlspace – westhomeplanners.com
Master Bedroom – westhomeplanners.com
Great Room – westhomeplanners.com
Dining – westhomeplanners.com
Ensuite Bath – westhomeplanners.com
Kitchen – westhomeplanners.com
Bedroom 3 – westhomeplanners.com
Family Bathroom – westhomeplanners.com
Bedroom 2 – westhomeplanners.com

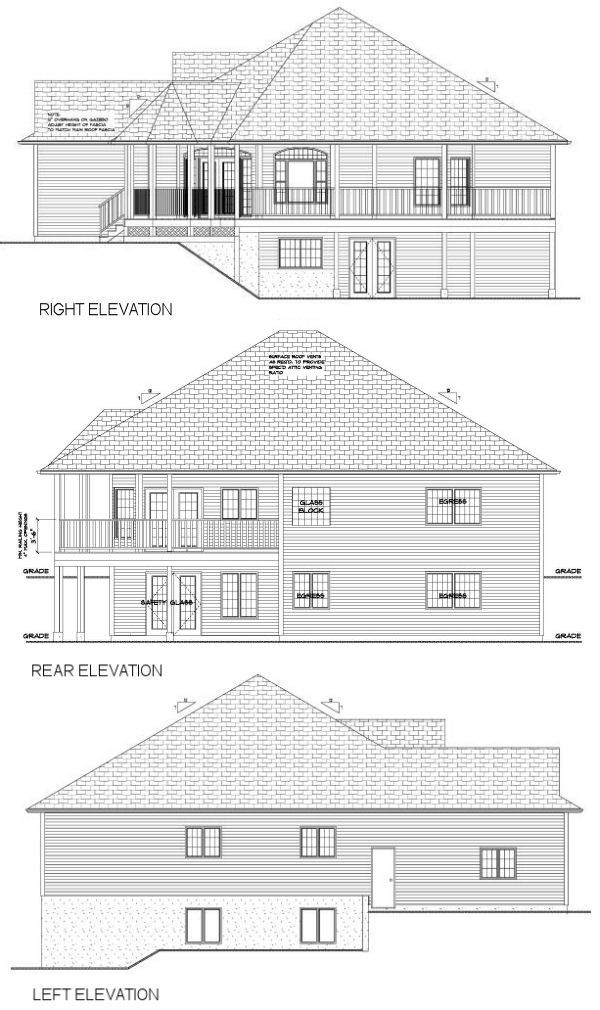

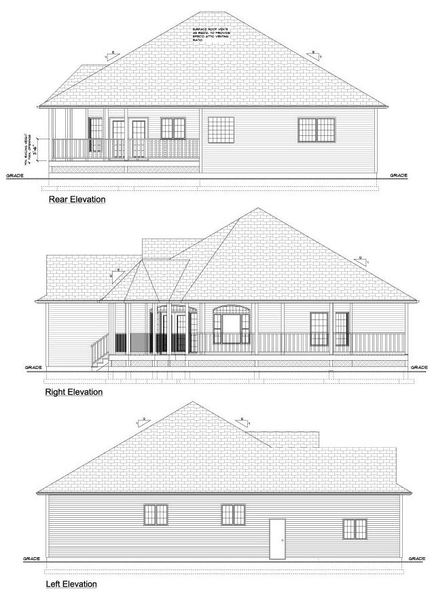

REAR Elevation – westhomeplanners.com
LEFT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
