Plan No.195256

Craftsman Style Duplex

This side by side Craftsman style duplex features a modern and open layout designed for comfortable living. The master bedroom is complete with a walk-in closet and en suite, and the two other bedrooms make it perfect as a home for family life. Each unit features its own single car garage, laundry room, and main floor powder room. An optional unfinished basement foundation also gives the option of a recreation room or extra bedrooms. Total Living Area: Main Floor Area – 1176 sq.ft.; Second Floor Area – 1668 sq.ft.; Basement Area – 1176 sq.ft.; Garage Area – 492 sq.ft.

Specifications

Total 2844 sq ft

  • Main: 1176
  • Second: 1668
  • Third:
  • Loft/Bonus:
  • Basement: 1176
  • Garage: 492

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 41'0
  • Depth: 46'0

Roof

  • Max Ridge Height: 31'6
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12

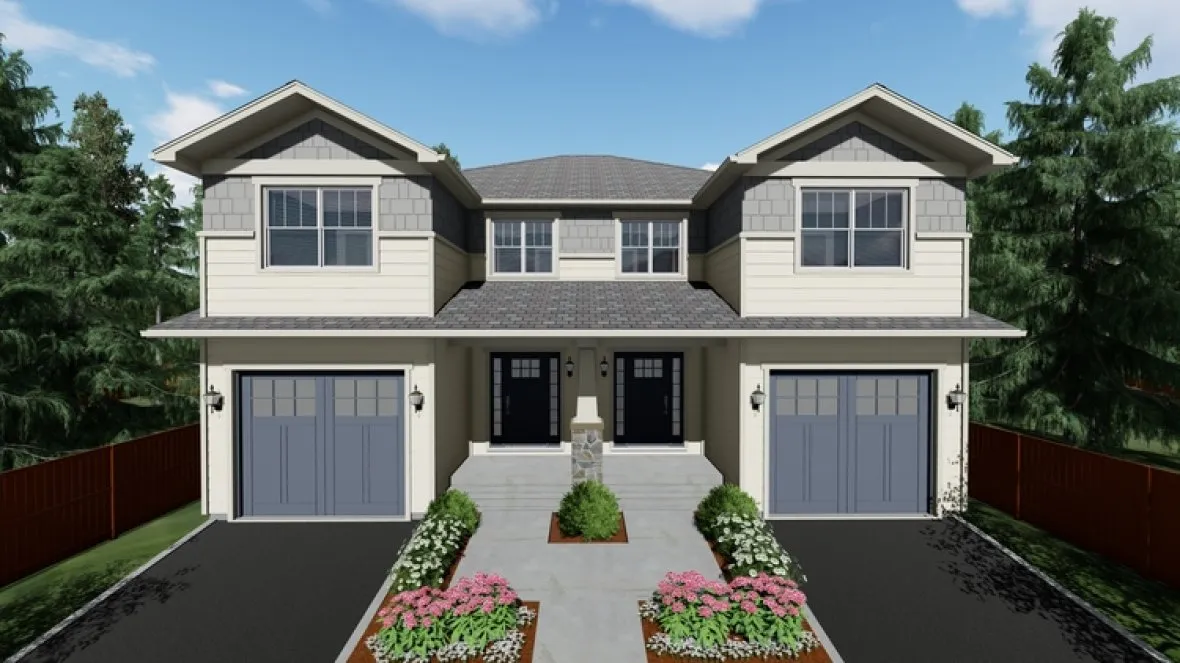

Full Rendering – westhomeplanners.com

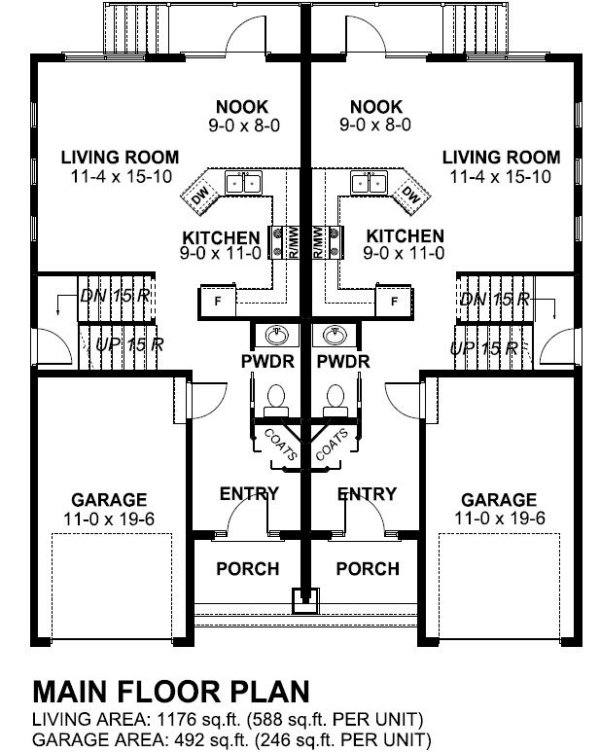

MAIN Plan – westhomeplanners.com

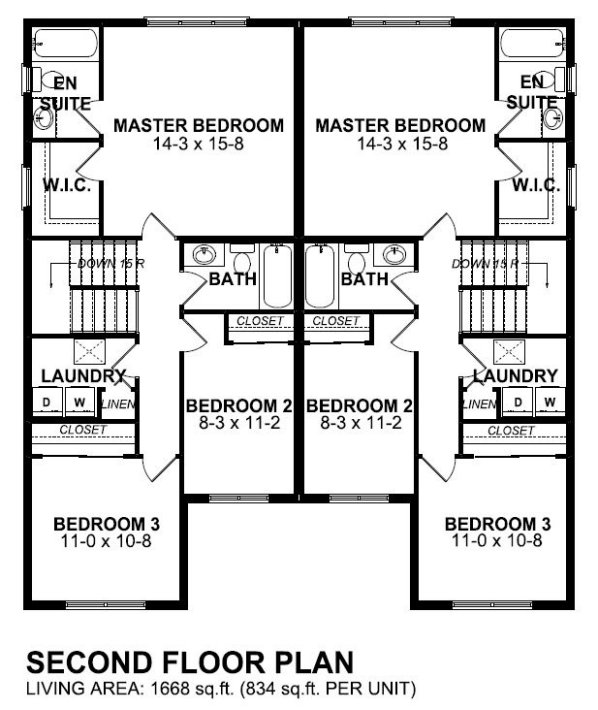

SECOND Plan – westhomeplanners.com

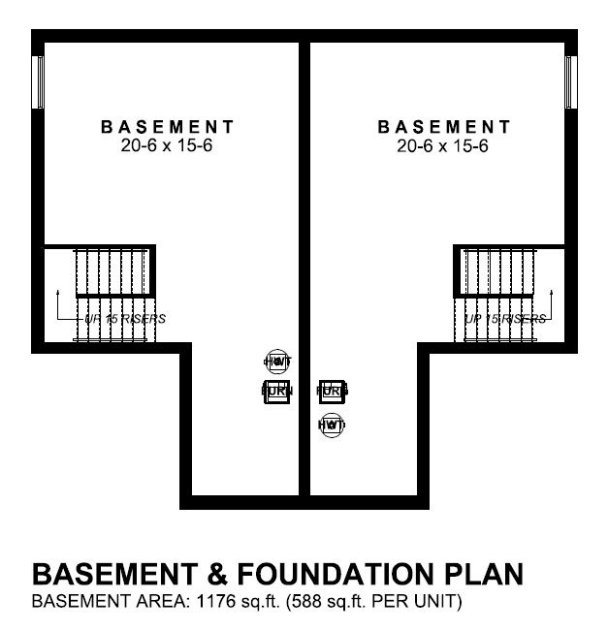

BASEMENT Plan – westhomeplanners.com

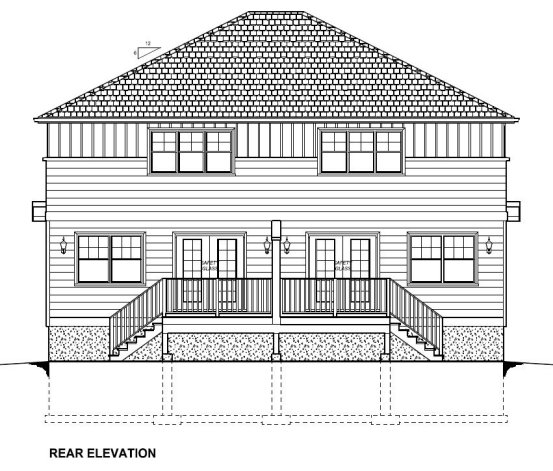

REAR Elevation – westhomeplanners.com

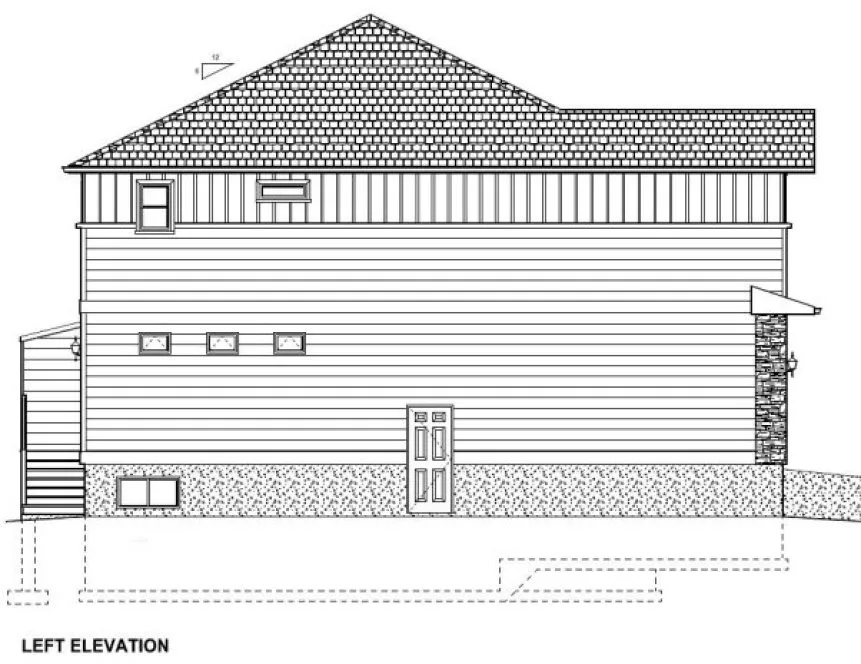

LEFT Elevation – westhomeplanners.com

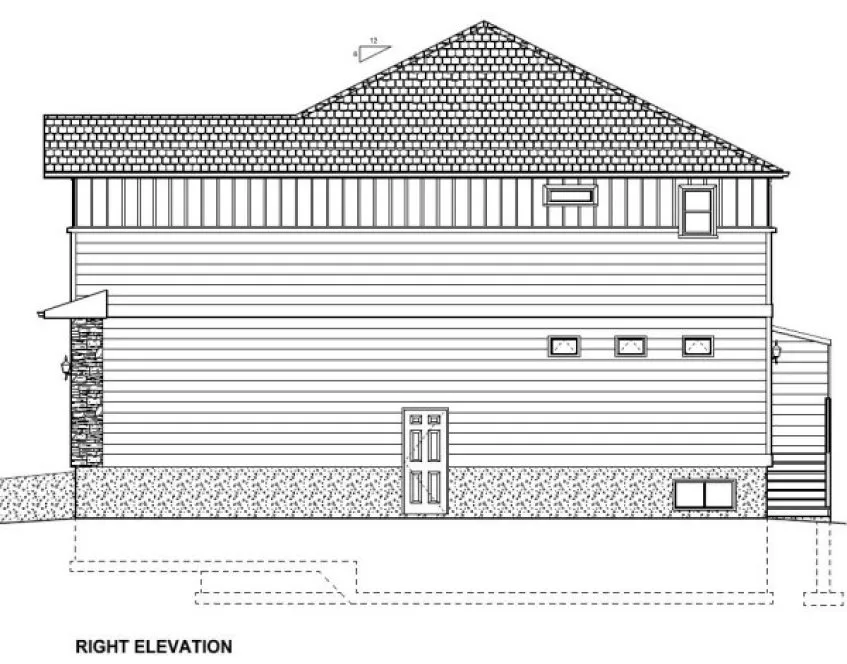

RIGHT Elevation – westhomeplanners.com
FRONT Elevation – westhomeplanners.com
