Plan No.510422

Dining Room with Sundeck

Abundant windows and sliding glass doors take advantage of views in this vacation home. A full deck wraps around to a covered side entry. Vaulted ceilings throughout the living and dining rooms and the large upstairs bedroom give a feeling of spaciousness to the plan and allow for tall, bright windows. The galley-style kitchen is open to the dining room. Two bedrooms line the rear of the plan an owners bedroom and a secondary bedroom. They share the full bath, as does Bedroom 3. Convenient storage is found under the stairs.

Specifications

Total 1140 sq ft

  • Main: 878
  • Second: 262
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 35'0
  • Depth: 31'0

Roof

  • Max Ridge Height: 26'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

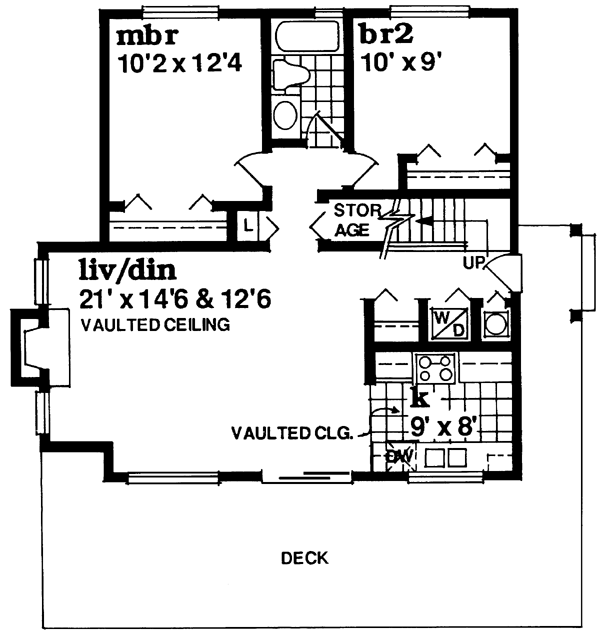

MAIN Plan – westhomeplanners.com

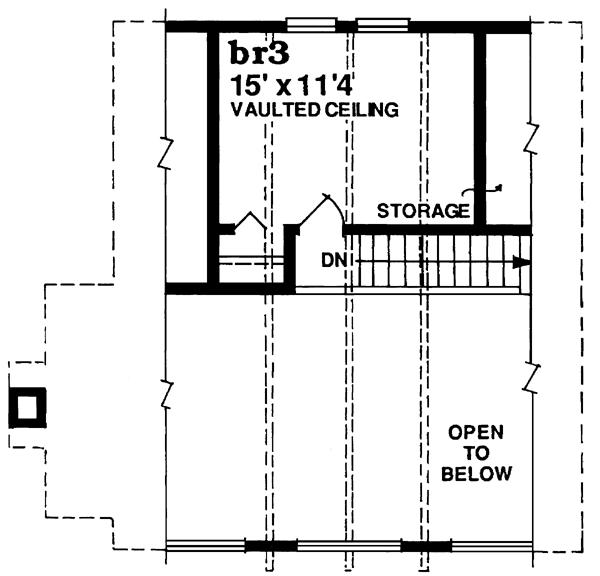

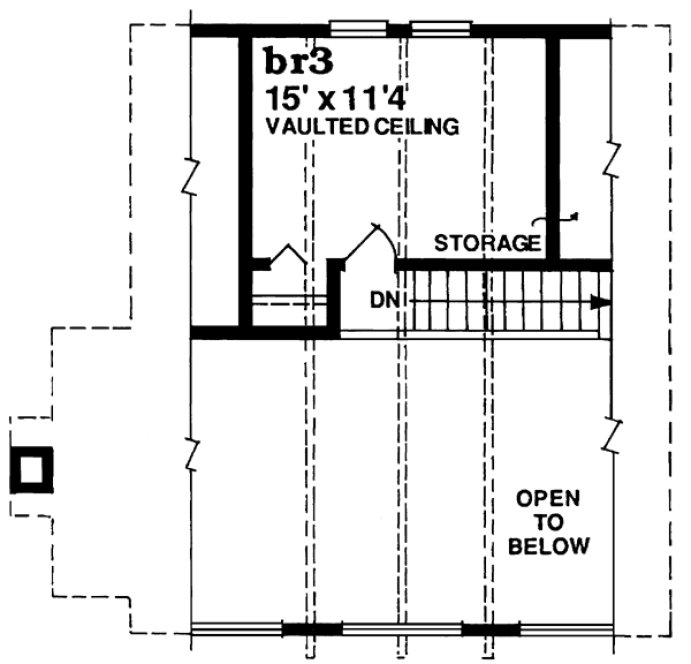

SECOND Plan – westhomeplanners.com

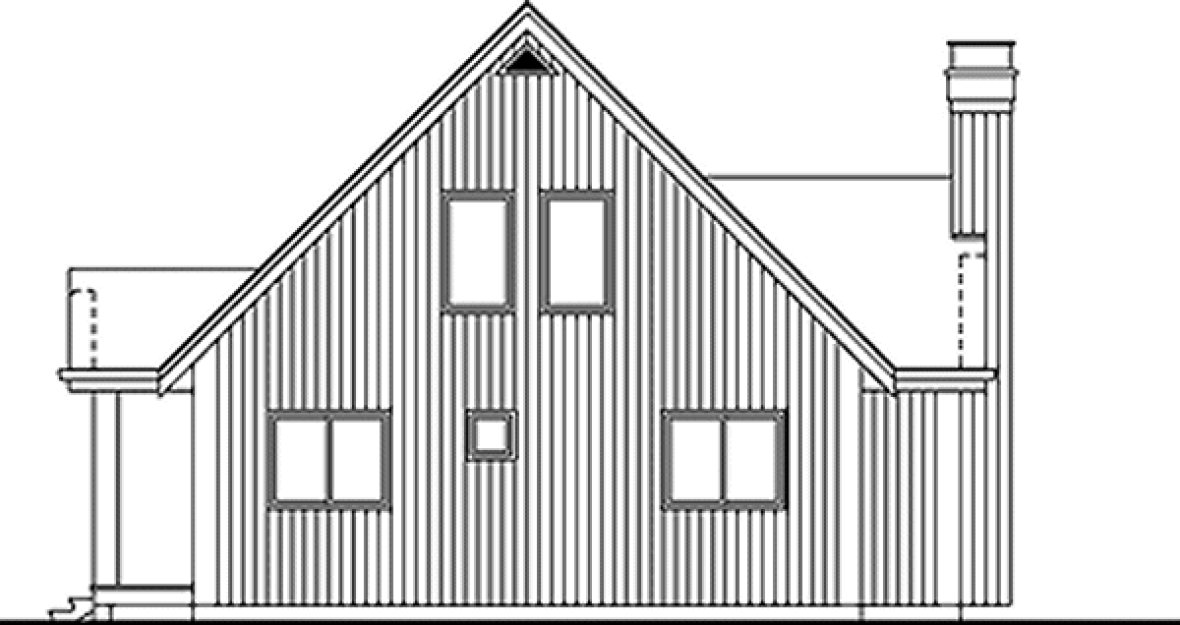

REAR Elevation – westhomeplanners.com
