Plan No.510872

Rustic Beauty Of This Design

A fieldstone fireplace and wrapping deck add much to the rustic beauty of this design. An expansive window wall highlights the vaulted ceiling in the living and dining rooms and fills the area with natural light. An oversized masonry fireplace is flanked by a set of sliding glass doors opening to the deck. The U-shaped kitchen has great counter and shelf space. Pocket doors seclude it from the dining room and the laundry room at the back. Behind the laundry room is a bedroom with a wall closet. It shares a bath with the master bedroom, which has a walk-in closet. A vaulted loft can serve as additional sleeping space.

Specifications

Total 1694 sq ft Rooms Ceiling Height Details Footprint
Main: 1197   Bedrooms: 3   Main: 8'0   Max. Ridge Height: 35'0 (Main Fl to Peak)   Width: 31'0
Second:   Baths: 1   Second:   Primary Roof Pitch: 12.00/12   Depth: 38'0
Third:   Half-baths:   Loft/Bonus Rm: 8'0   Secondary Roof Pitch: /12
Basement:   3/4 Baths:   Basement:   Exterior Wall: 2x6
Loft/Bonus: 497
  Full Rendering

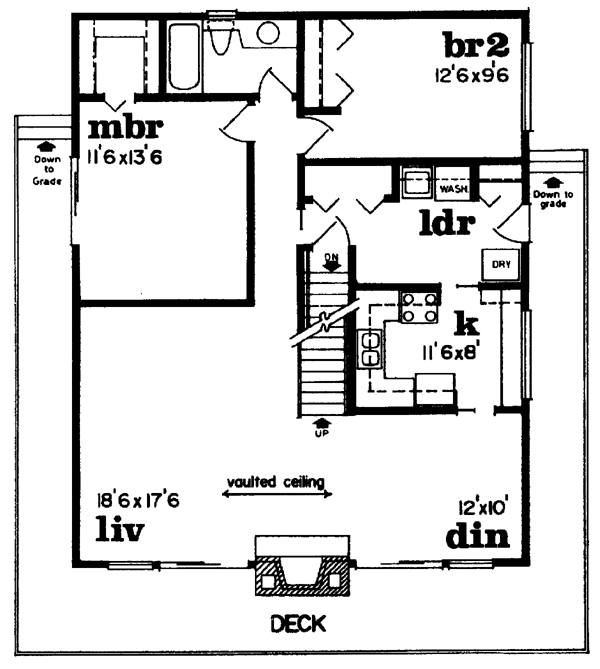

  MAIN Plan

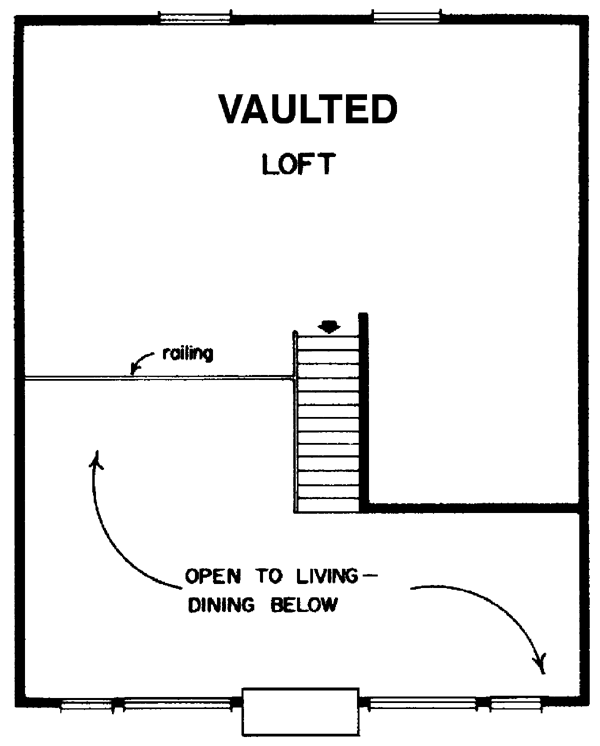

  SECOND Plan

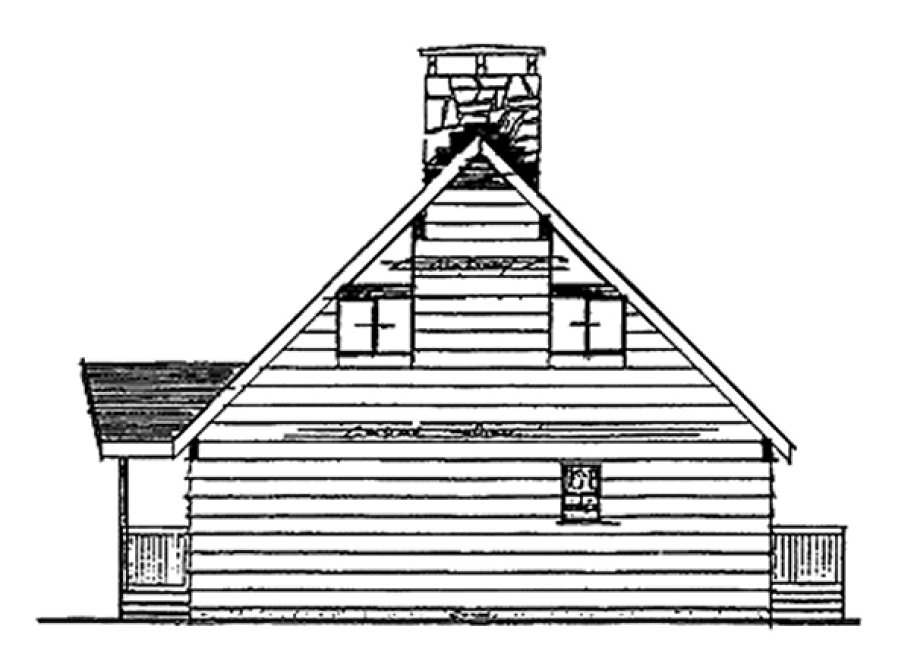

  REAR Elevation
