Plan No.510730

Plenty Of Space

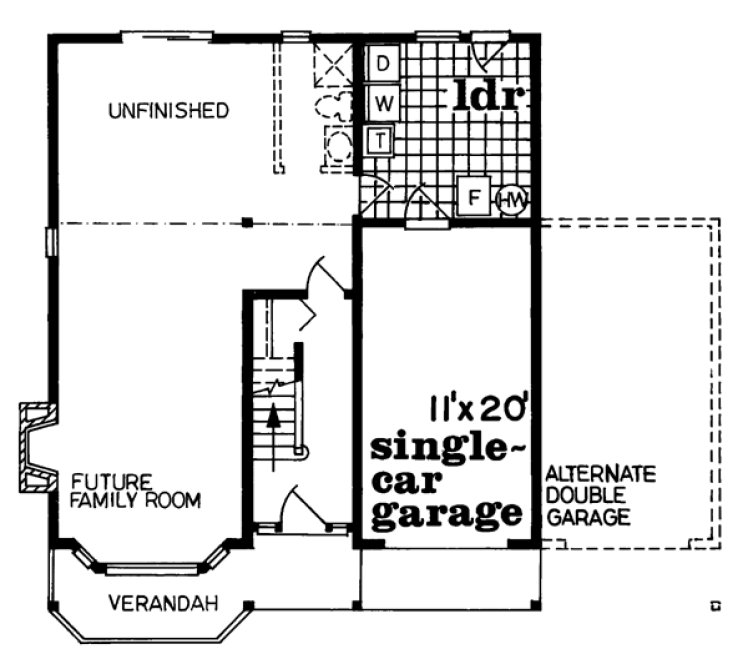

Opening with a main foyer of 77 square feet, this plan proceeds to the main living area on the second level. The living room/dining room combination is separated from the staircase by a half-wall and graced by a bay window and fireplace. The L-shaped kitchen is to the rear and contains plenty of space for a breakfast table and sliding glass doors to a rear deck. Three bedrooms find space on the right side of the plan: a master bedroom with walk-in closet and two family bedrooms. They share a full bath. Unfinished space on the lower level can be developed into a family room with fireplace and possible extra bedroom with bath. The single-car garage may be expanded to a double garage.

Specifications

Total 1095 sq ft

  • Main: 1018
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 259

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 32'0
  • Depth: 37'0

Roof

  • Max Ridge Height: 27'0
  • Primary Pitch: 7.00/12
  • Secondary Pitch: /12

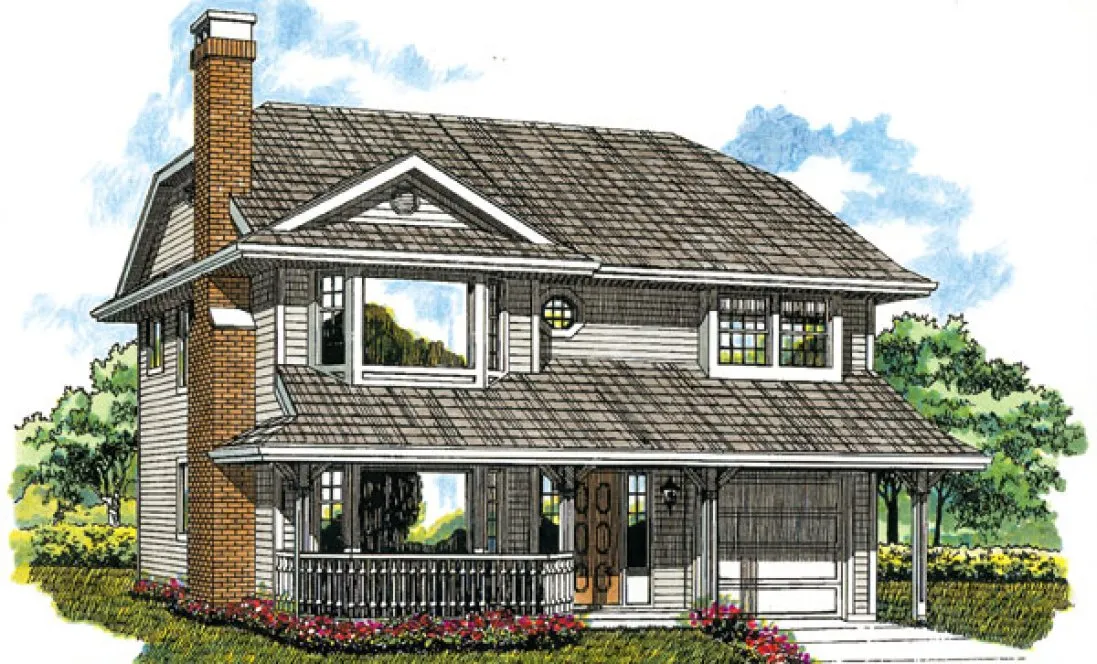

Full Rendering – westhomeplanners.com

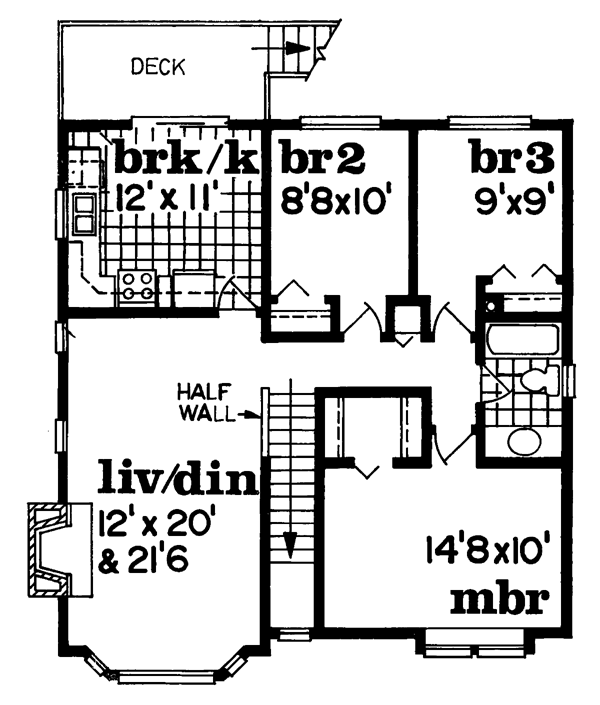

MAIN Plan – westhomeplanners.com
 – westhomeplanners.com
