Plan No.516200

Great For Medium To Narrow Lots

This spacious split-level home is well suited to a medium-to-narrow-frontage lot. Steps lead up to a covered front porch at the entry with a single door into the foyer and double doors into the living room. The living room and dining room are part of one large open area, warmed by a fireplace. The kitchen is L-shaped and saves room for a breakfast table. The kitchen can be isolated by pocket doors at each entrance. A few steps up take you to the upper-level sleeping quarters. The master bedroom sits to the back and features a walk-in closet and half-bath. Family bedrooms sit to the front and share a full bath. Unfinished space in the basement provides 891 square feet for future development that might include a family room with fireplace and an additional bedroom with half-bath. The two-car garage offers storage and work-bench space.


Total 1161 sq ft

  • Main: 1161
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 1161
  • Garage:


  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 38'0
  • Depth: 43'0


  • Max Ridge Height: 22'0
  • Comments: ()
  • Primary Pitch: 5.00/12
  • Secondary Pitch: /12
Full Rendering –

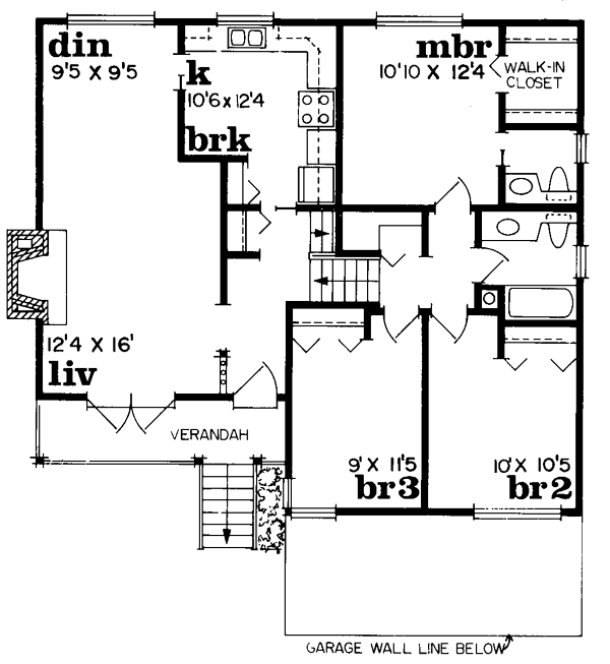

MAIN Plan –
