Plan No.510920

Craftsman Carriage House

Perfect for a guest apartment, or as an income possibility, this fine Craftsman carriage house will look good in any neighborhood. With rafter tails, a shed dormer, a gabled porch roof and a stone-and-siding facade, the Craftsman style is highly evident. A two-car garage shares space with a laundry room and a half bath, while the 679-square-foot main living space is upstairs. Plenty of storage can be found at the first landing of the stairs. The living room is open to the stairwell, and is adjacent to the petite yet efficient kitchen. The bedroom features a walk-in closet.

Specifications

Total 1447 sq ft

  • Main: 768
  • Second: 679
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 32'0
  • Depth: 28'0

Roof

  • Max Ridge Height: 23'0
  • Comments: ()
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

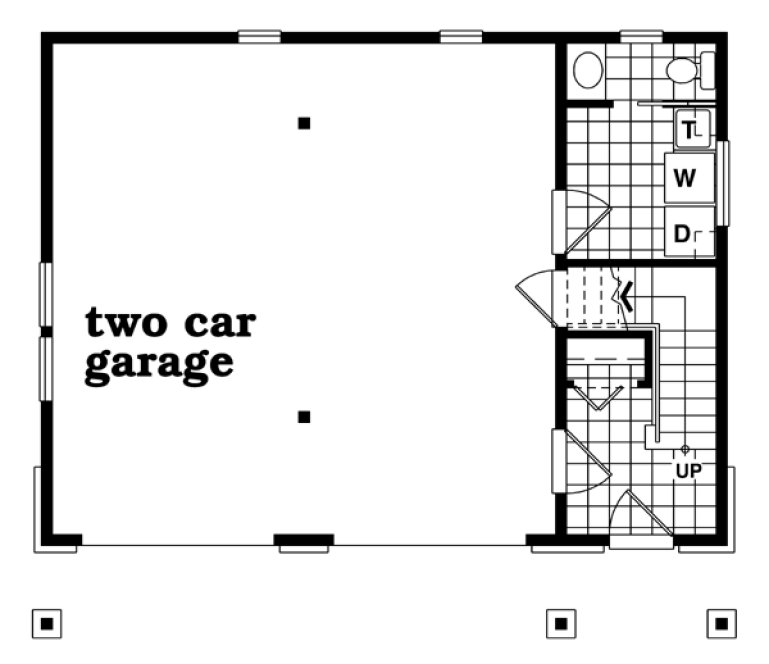

MAIN Plan – westhomeplanners.com

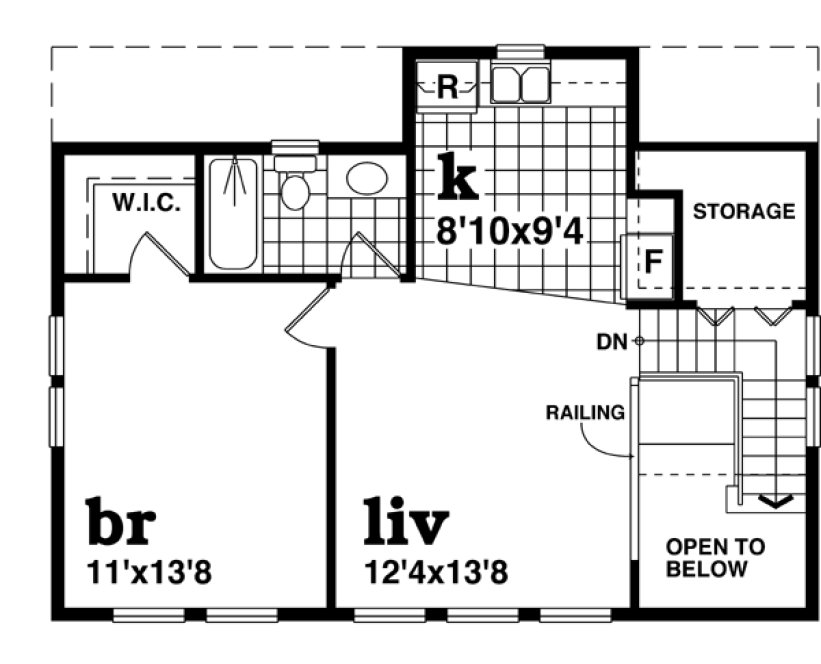

SECOND Plan – westhomeplanners.com
