Plan No.517100

All-Purpose Garage

This garage plan includes room for both the RV and the car--or maybe the RV and a workshop! Enter the 984-square-feet of space via a side-entry door or one of the car or RV entries. Plenty of room inside the garage will allow you to maintain your vehicle even during inclement weather.The RV portion of ths garage is 18' wide by 36' deep. The adjacent garage is 12' wide by 28' deep. This RV garage was designed for a total roof design load of 42 psf. (live and dead loads) It was also designed with site built trusses. (designed by an engineer for the above listed loads)

Specifications

Total 984 sq ft

  • Main: 984
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds:
  • Baths:
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 14'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 30'0
  • Depth: 36'0

Roof

  • Max Ridge Height: 21'0
  • Comments: ()
  • Primary Pitch: 7.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

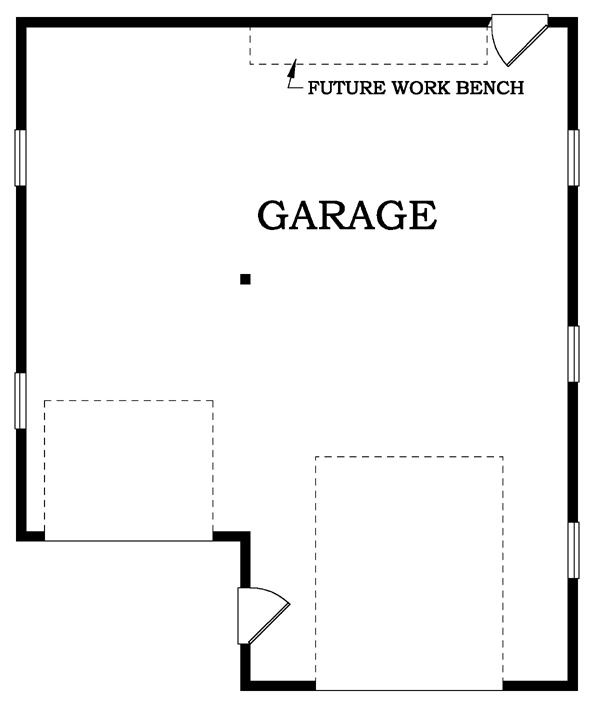

MAIN Plan – westhomeplanners.com
