Plan No.510950

Sweeping Curved Staircase

Dormer windows, a Palladian over the garage and a bayed bump-out add to this home’s quaint appeal. Inside, a sweeping, curved staircase dominates the two-story foyer. The spacious sunken living room has a front-view bay and a fireplace. The attached dining room has a box-bay overlooking the rear yard. The U-shaped kitchen is appointed with a walk-in pantry and a broom closet. The attached breakfast nook overlooks the sunken family room (note the additional fireplace in this living area). On the second level are three family bedrooms and a master suite. The master bedroom has a private bath, while family bedrooms share a full bath. A bonus room adds 254 square feet of space that can be developed at a later time, if desired.


Total 2262 sq ft

  • Main: 1167
  • Second: 1095
  • Third:
  • Loft/Bonus:
  • Basement: 1167
  • Garage:


  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 41'0
  • Depth: 47'0


  • Max Ridge Height: 27'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

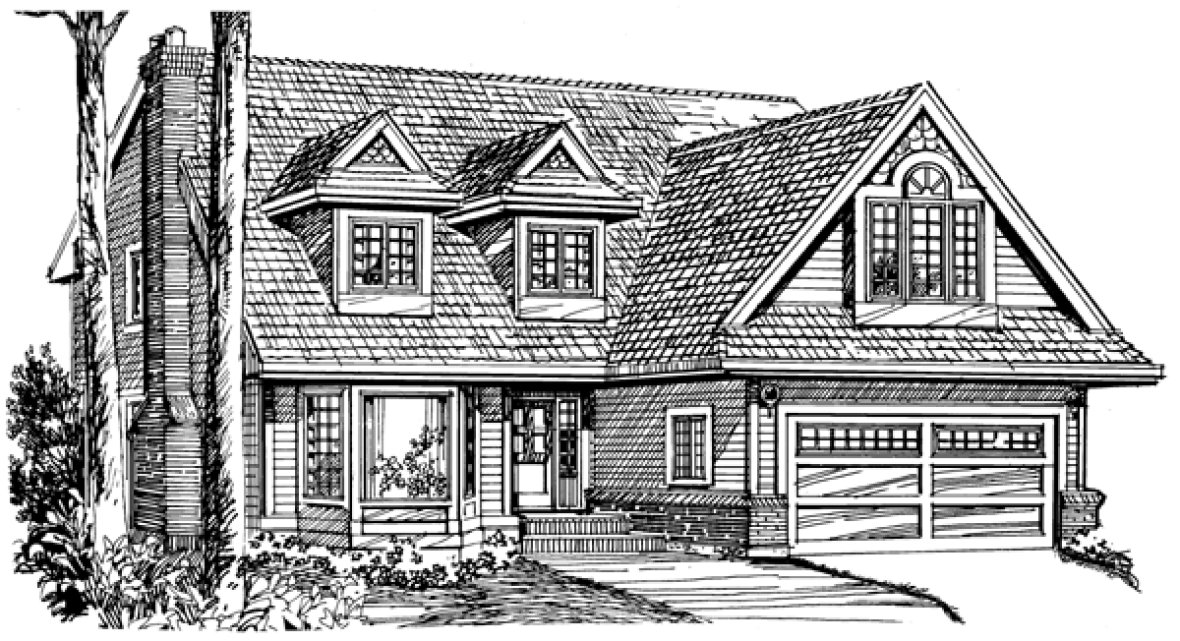

Full Rendering –

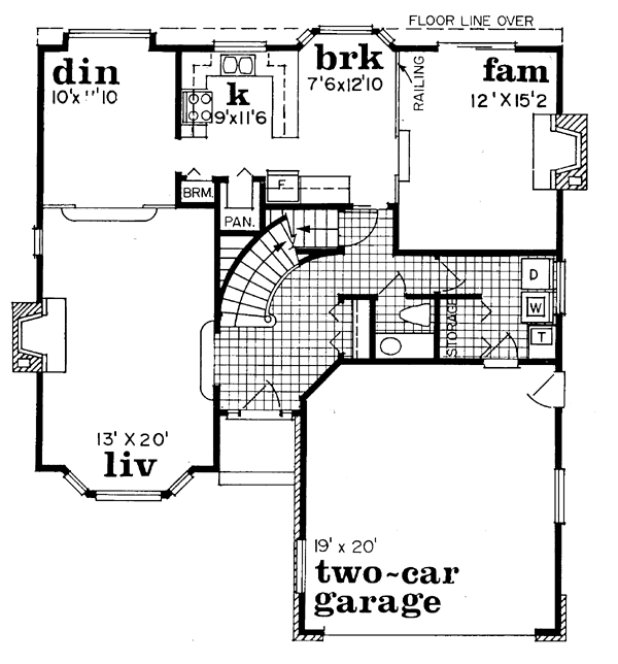

MAIN Plan –

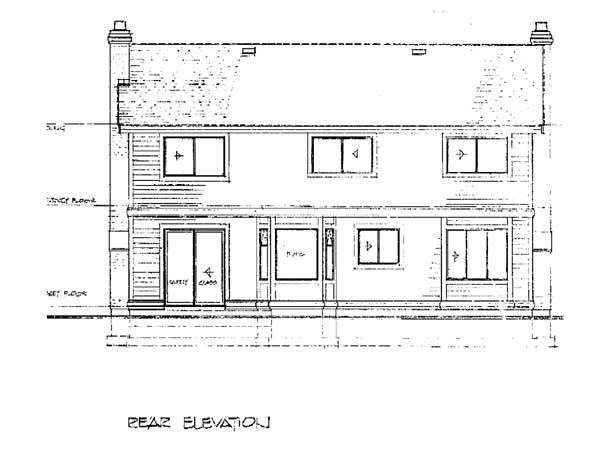

REAR Elevation –
