Plan No.510640

Space For Choices

This split-level design offers a single-car garage on the lower level along with space for a family room, extra bedrooms, or an in-law suite. The main level has a living room that overlooks the vaulted foyer, contains a cozy fireplace, and stretches to a dining area. Sliding glass doors lead out to a sundeck at the back. The kitchen features a counter pass-through to the dining room. Bedrooms on the left side of the plan include a master bedroom with a full bath and two bedrooms with a shared bath.

Specifications

Total 1047 sq ft Rooms Ceiling Height Details Footprint
Main: 1047   Bedrooms: 3   Main: 8'0   Max. Ridge Height: 24'0 (Main Fl to Peak)   Width: 38'0
Second:   Baths: 2   Second:   Primary Roof Pitch: /12   Depth: 29'0
Third:   Half-baths:   Loft/Bonus Rm:   Secondary Roof Pitch: /12
Basement: 718   3/4 Baths:   Basement: 8'0   Exterior Wall: 2x4
Loft/Bonus:
  Full Rendering

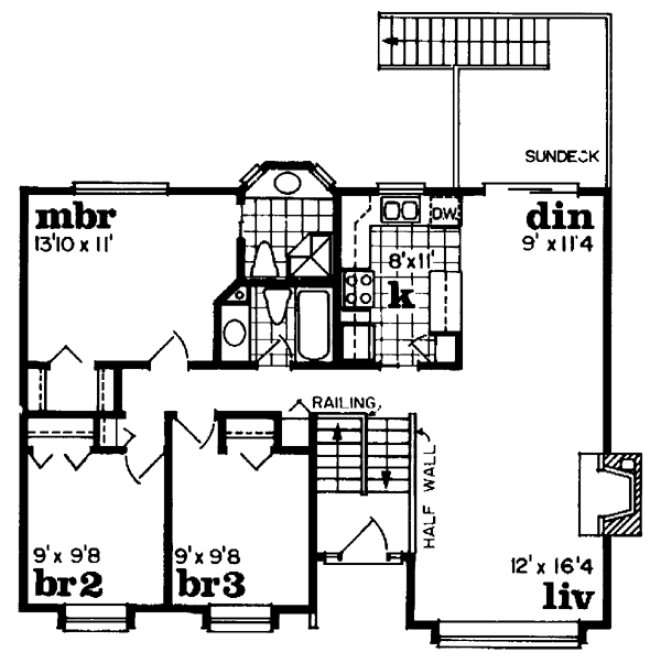

  MAIN Plan

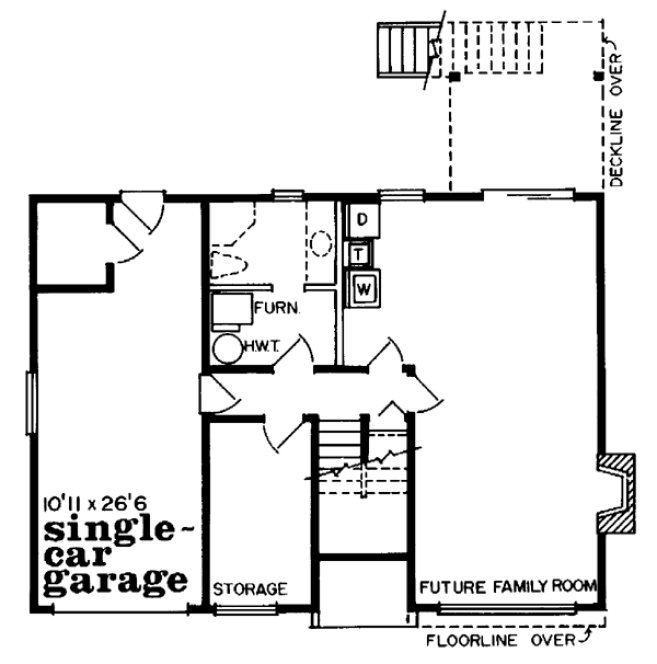

  BASEMENT Plan
