Plan No.510710

Full Livability On One Level

Build this home with full livability on one level, with the option of expanding to the lower level in the future. Double doors open to the entry where a few steps lead up to the main level. The living room overlooks the cathedral entry and also sports a fireplace. An L-shaped country kitchen has space for a breakfast table and is open to the family room. A single entrance leads to a small deck in back. The right side of the plan is reserved for bedrooms--two family bedrooms and a master bedroom. All have adequate wall closets and share a full bath.

Specifications

Total 1033 sq ft

  • Main: 1033
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 999
  • Garage:

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: singleCarport
  • Width: 53'0
  • Depth: 26'0

Roof

  • Max Ridge Height: 20'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 5.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

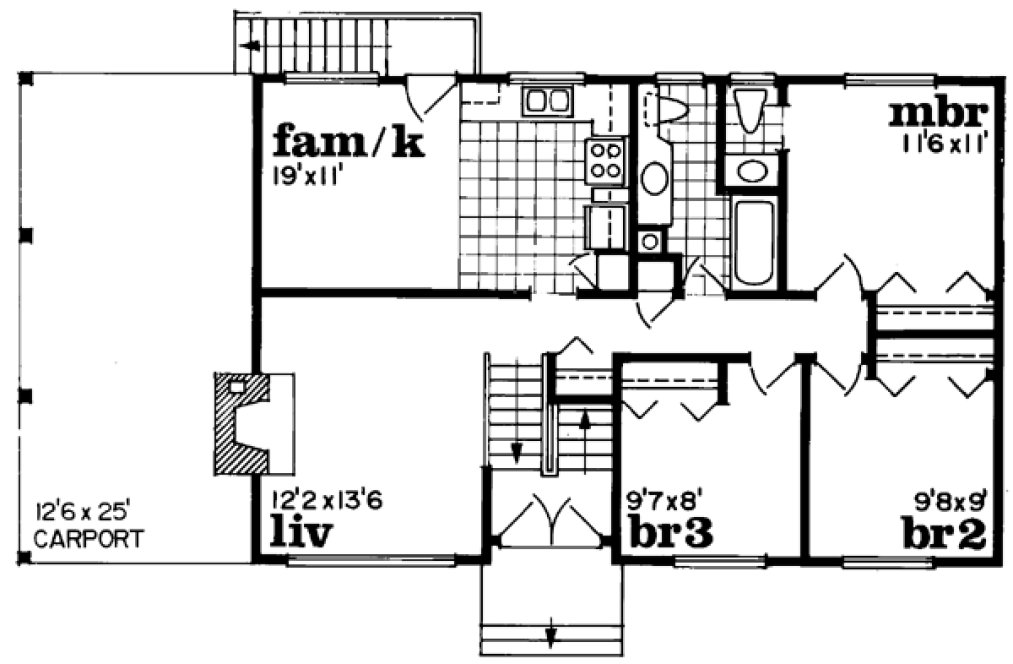

MAIN Plan – westhomeplanners.com

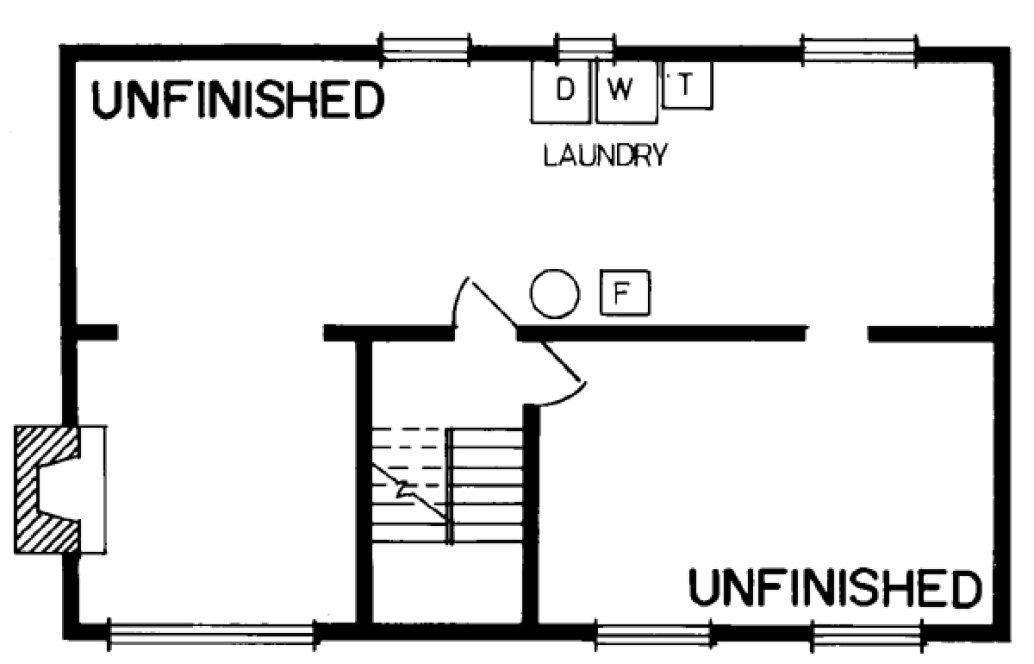

BASEMENT Plan – westhomeplanners.com
