Plan No.510300

Rustic Vacation Home

Full window walls provide the living and dining rooms of this rustic vacation home with natural light. A full sundeck with a built-in barbecue sits just outside the living area and is entered through sliding glass doors. The entire living space has a vaulted ceiling to gain spaciousness and to allow for the full-height windows. The efficient U-shaped kitchen has a pass-through counter to the dining area and a corner sink with windows overhead. A master bedroom is on the first floor and has the use of a full bath. A loft on the second floor overlooks the living room. It provides an additional 419 square feet not included in the total. Use it for an additional bedroom or as a studio.

Specifications

Total 680 sq ft

  • Main: 680
  • Second:
  • Third:
  • Loft/Bonus: 418
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 27'0
  • Depth: 28'0

Roof

  • Max Ridge Height: 22'0
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

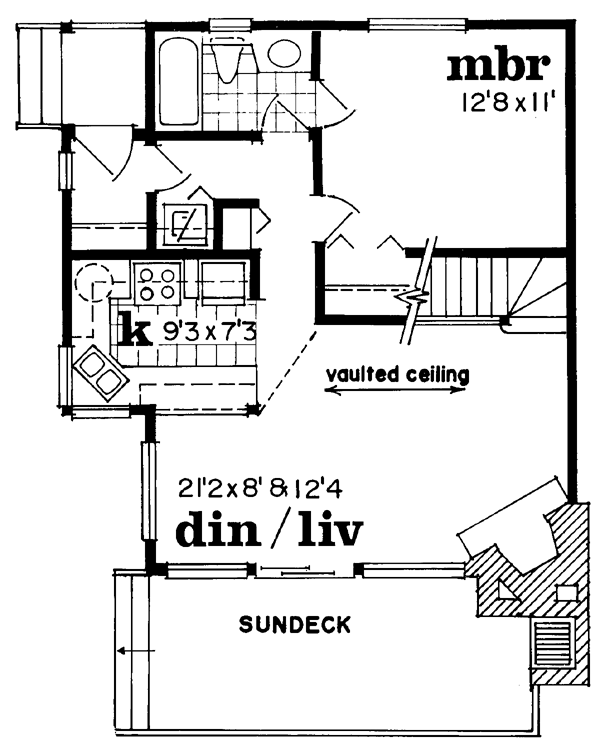

MAIN Plan – westhomeplanners.com

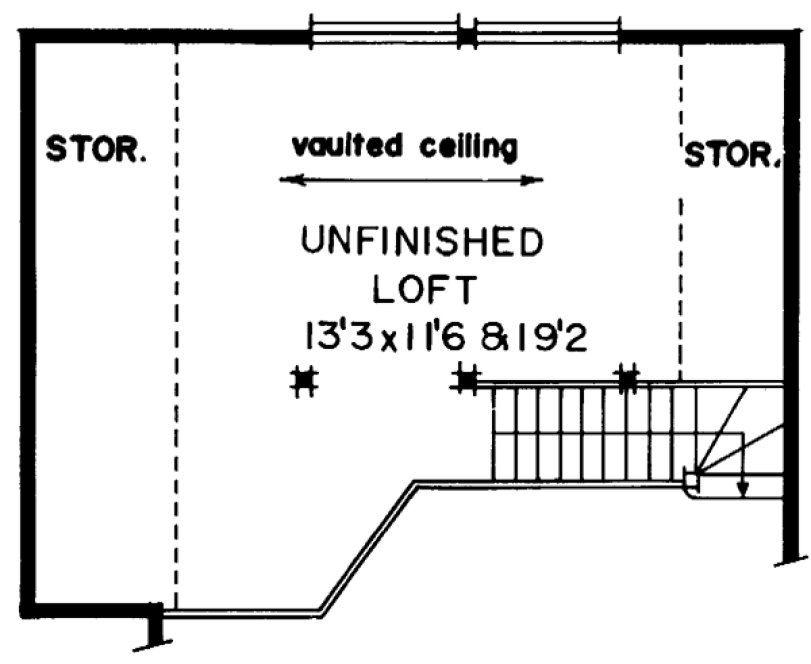

ATTIC Plan – westhomeplanners.com

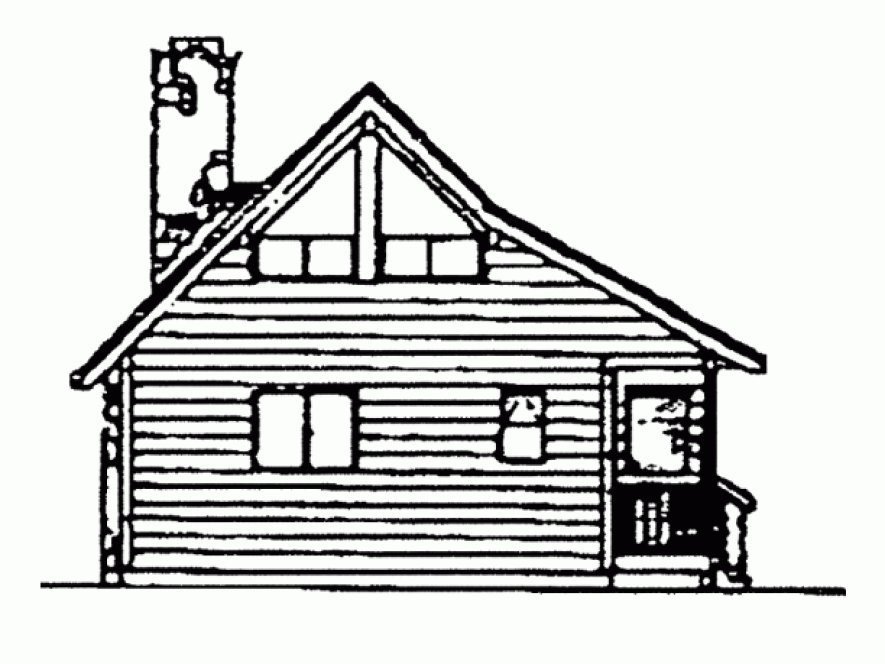

REAR Elevation – westhomeplanners.com
