Plan No.510030

Guest Suite

This cottage garage sports siding and both a porch and upper-level deck. A two-car garage completes the first level while a spacious 773-square-foot apartment rounds out the second level. A large living and dining space enjoys a skylight and access to the deck. The U-shaped kitchen features all the amenities for small-scale living. A full bath and a bedroom with wall closet and bumped-out bay window finish up the apartment.

Specifications

Total 1501 sq ft

  • Main: 728
  • Second: 773
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 28'0
  • Depth: 26'0

Roof

  • Max Ridge Height: 30'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 10.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

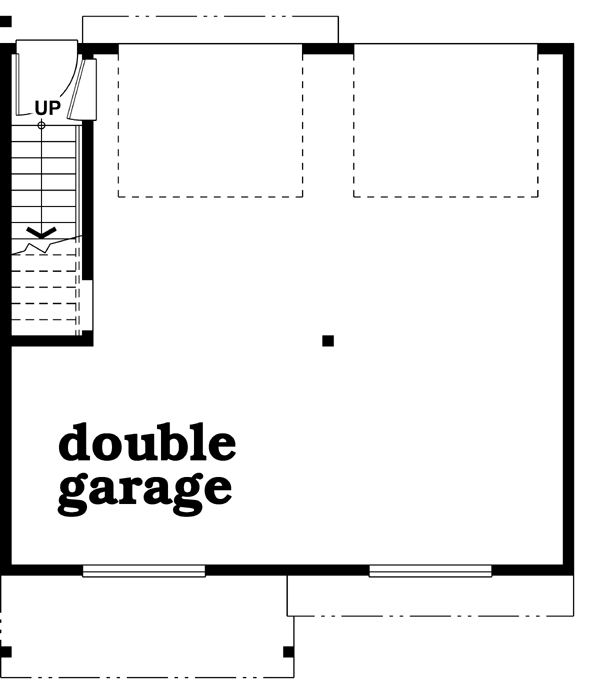

MAIN Plan – westhomeplanners.com

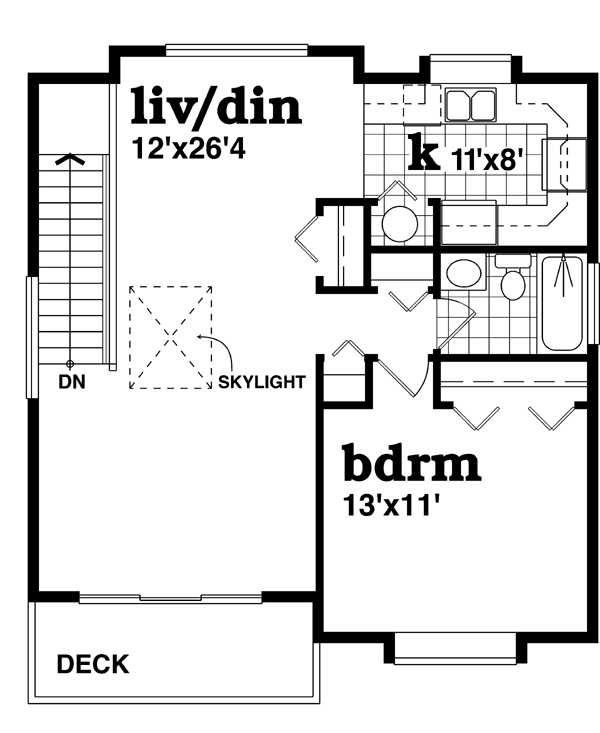

SECOND Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com
