Plan No.528860

Bay Windows Bring Style to Living Areas

From its wraparound covered porch to its two bay windows, this design has plenty of amenities. The foyer opens directly into the attractive living room, which is enhanced by a warming fireplace, a vaulted ceiling, and one of the two bay windows. A U-shaped kitchen works well with both the dining area and the sunny family room, offering a snack bar to this room. Two secondary bedrooms share a full bath and easily accommodate family or friends. At the back of the plan, a master suite has a sloped ceiling, a walk-in closet, access to the porch, and a luxurious bath.


Total 1646 sq ft

  • Main: 1646
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 64'0
  • Depth: 45'0


  • Max Ridge Height: 19'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12
Full Rendering –

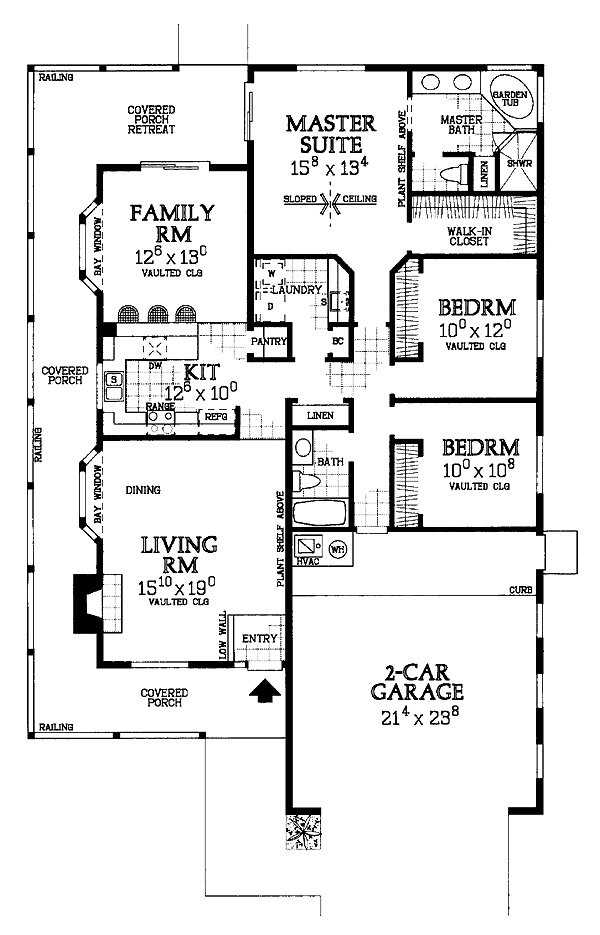

MAIN Plan –

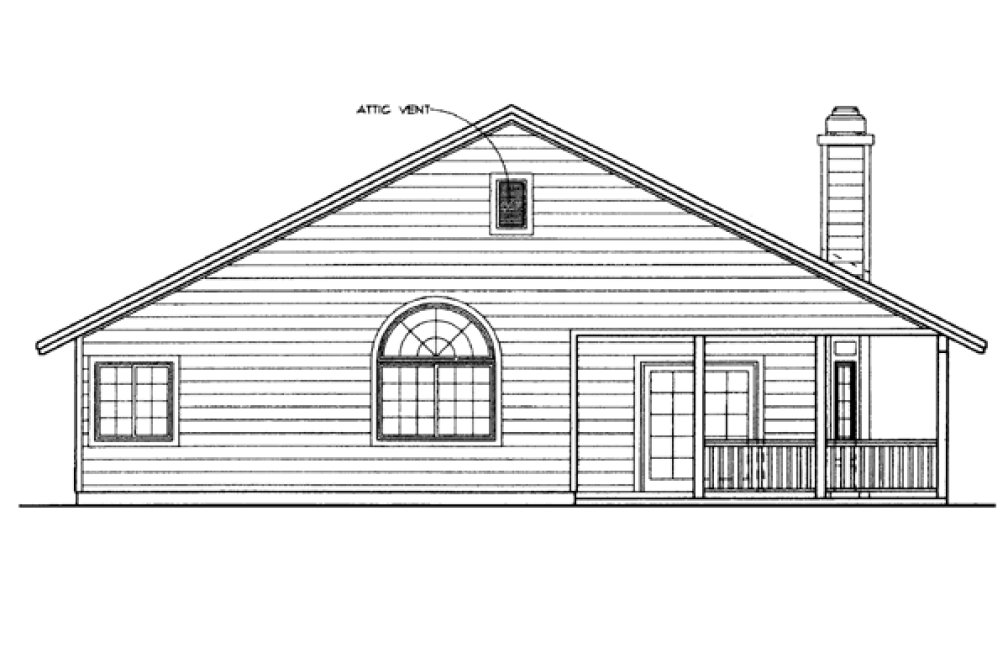

REAR Elevation –
