Plan No.262591

High Ceilings & Vaulted Spaces

The first level open great room space is easily expanded with French Door access to a wrap around sundeck. Screen a portion of the sundeck off if that is a concern in your location. The guest room could double as an office or hobby room. The second level is dedicated to two bedrooms each with their own bathroom and walk-in closet. The Master bedroom also boasts its own private viewing balcony. High ceilings and vaulted spaces with numerous plant ledges make this an appealing retreat. Plans designed with a crawl space foundation plan.

Specifications

Total 1952 sq ft

  • Main: 1008
  • Second: 944
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 3
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 10'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 40'0
  • Depth: 50'6

Roof

  • Max Ridge Height: 29'0
  • Primary Pitch: 12.00/12
  • Secondary Pitch: 6.00/12

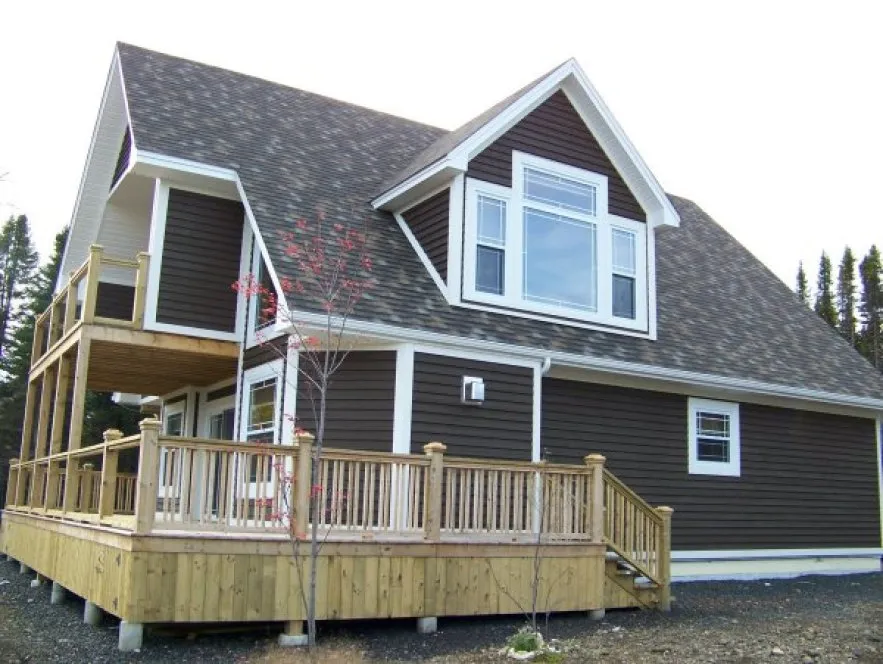

Full Rendering – westhomeplanners.com

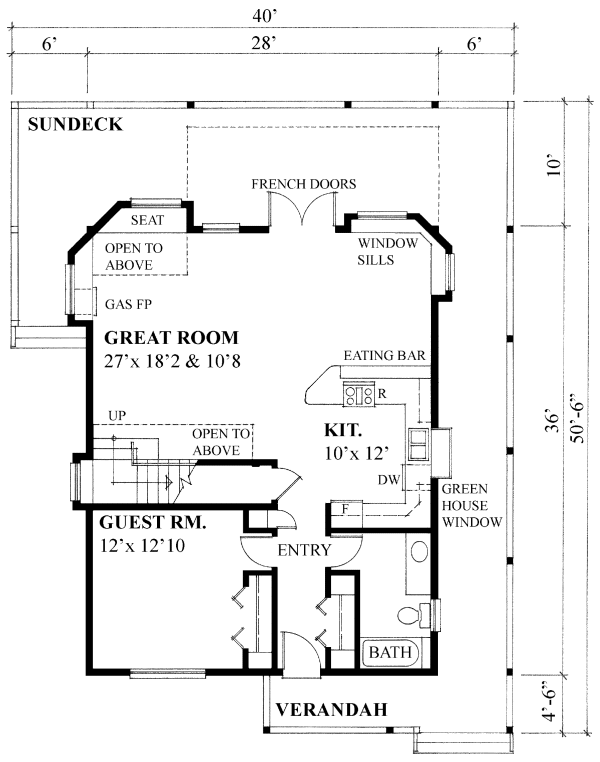

MAIN Plan – westhomeplanners.com

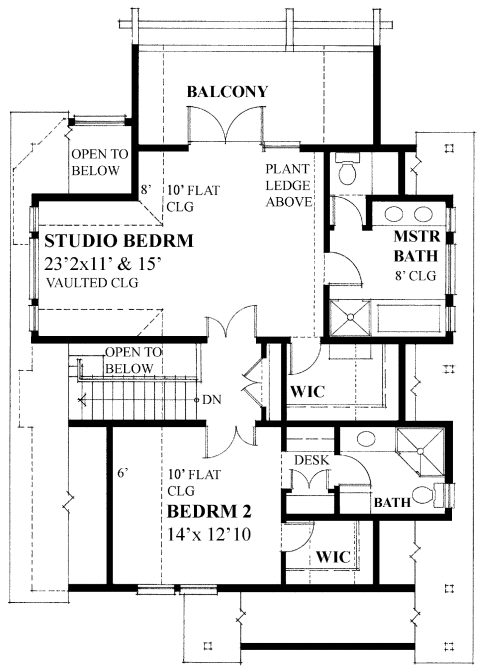

SECOND Plan – westhomeplanners.com
