Plan No.593009

Craftsman Rancher

An appealing heritage-style home with open-concept living and side-entry garage. Master on the main floor with unique connection through to laundry facilities. The angled living space in this plan is designed to maximize left to right views. Also take advantage of usable side-yard space with the partly covered courtyard for barbecuing and entertaining! Vaulted ceilings in living room, dining room and entrance. Two bedrooms down plus wine room, home theater and lots of storage.

Specifications

Total 3405 sq ft

  • Main: 1745
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 1660
  • Garage: 617

Rooms

  • Beds: 4
  • Baths: 4
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 9'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 49'0
  • Depth: 94'6

Roof

  • Max Ridge Height: 31'1
  • Primary Pitch: 4.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

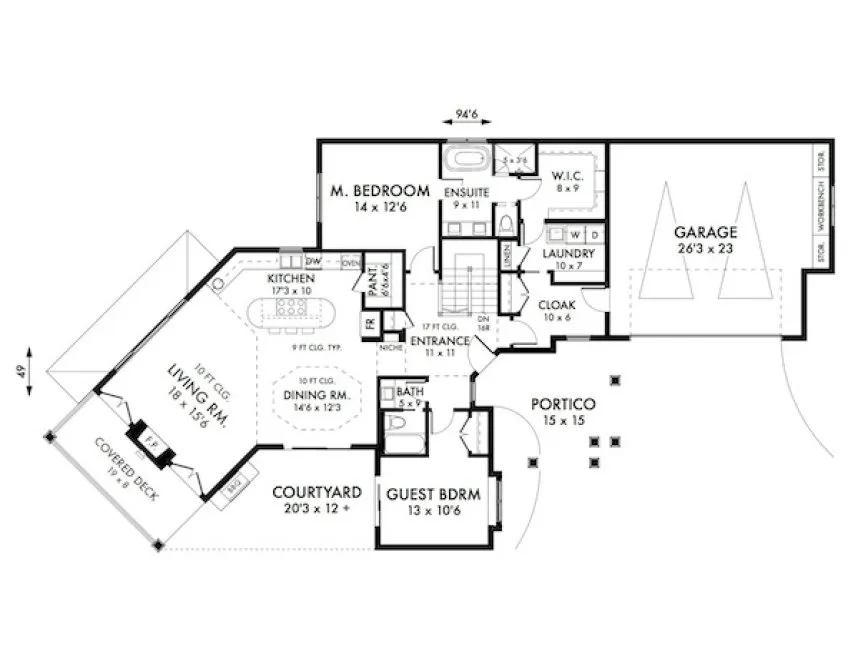

MAIN Plan – westhomeplanners.com

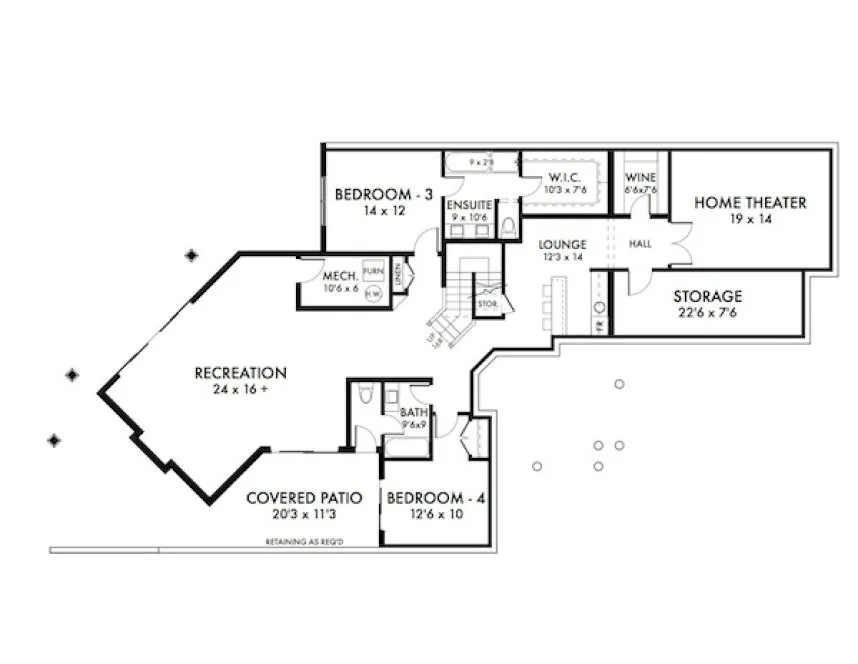

BASEMENT Plan – westhomeplanners.com

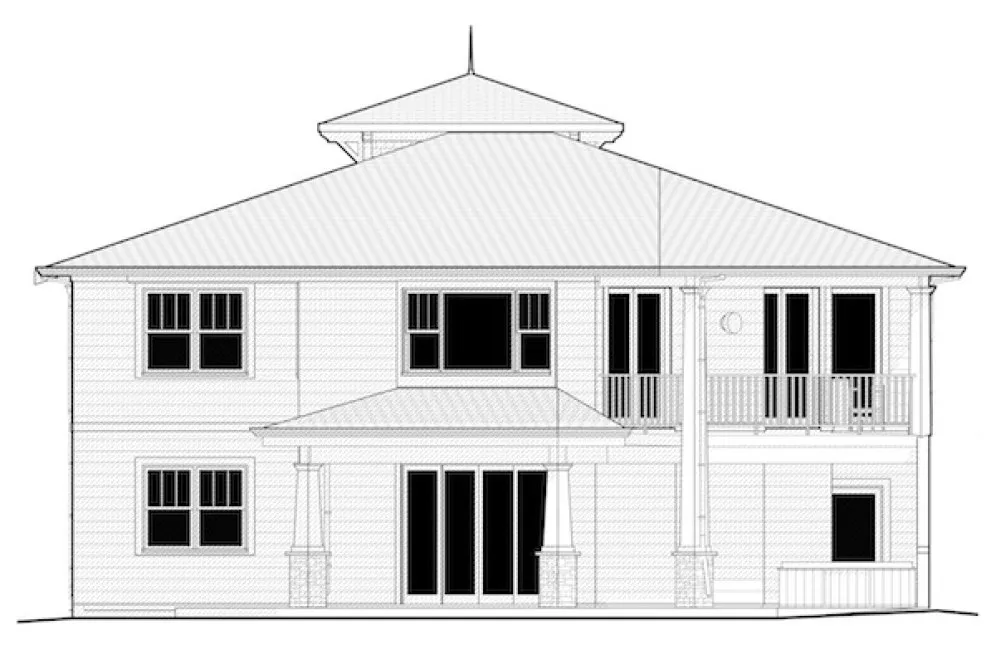

REAR Elevation – westhomeplanners.com

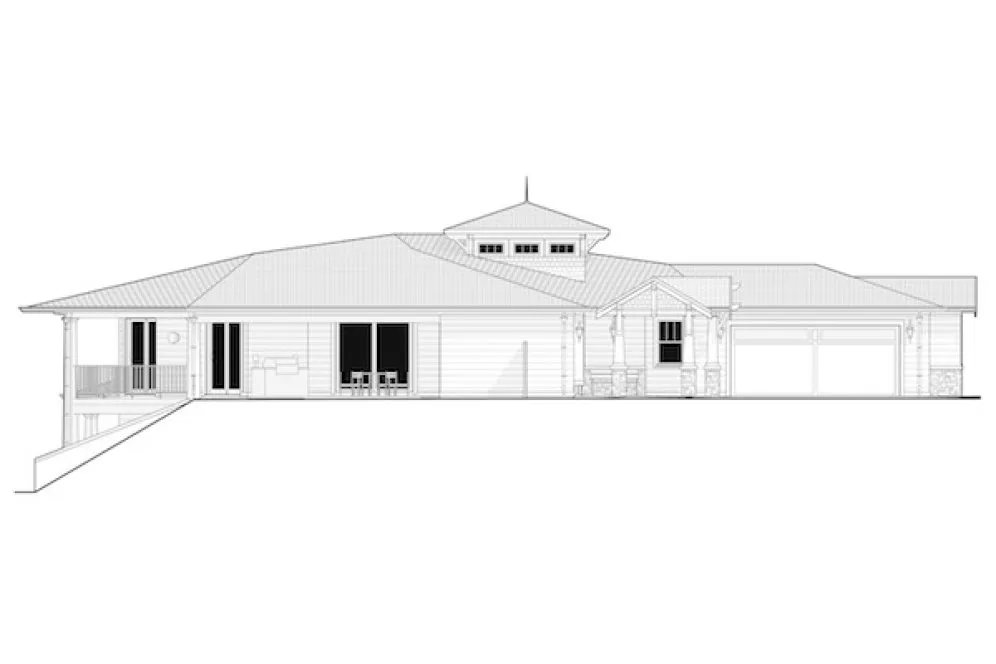

LEFT Elevation – westhomeplanners.com

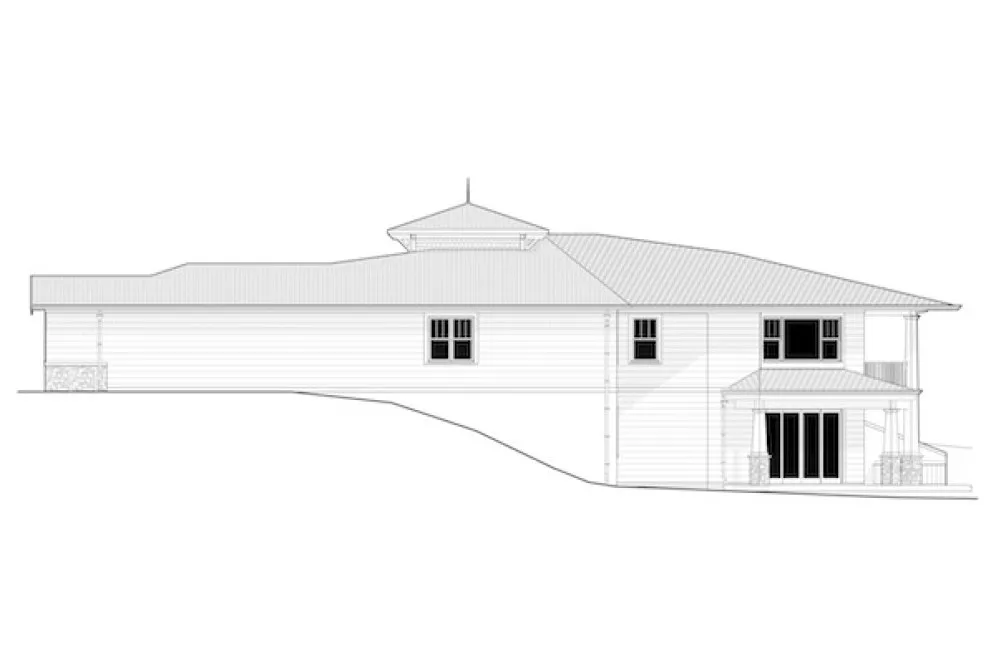

RIGHT Elevation – westhomeplanners.com
