Plan No.321323

Vaulted Single Story Plan with Open Great Room

Total livability on a single level is the appeal in this well-designed home. The master suite contains a vaulted salon, a walk-in closet and a bath with a spa tub. Family bedrooms share a full hall bath. A large vaulted great room with fireplace dominates the open living space. The laundry room has a service door to the double garage, which also has an extended bay for storage or a workshop. For the basement version, the staircase is between the MBR and Garage, and the Garage moves forward 4' to accommodate the staircase. ADDITIONAL NOTES: Unlimited Build License issued on CAD File orders. Regarding PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order. Total Living Area may increase with Basement Foundation option.


Total 2000 sq ft

  • Main: 2000
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 644


  • Beds: 4
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: 3 Car Garage
  • Width: 55'0
  • Depth: 58'0


  • Max Ridge Height: 23'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 6.00/12
  • Secondary Pitch: 8.00/12
Full Rendering –

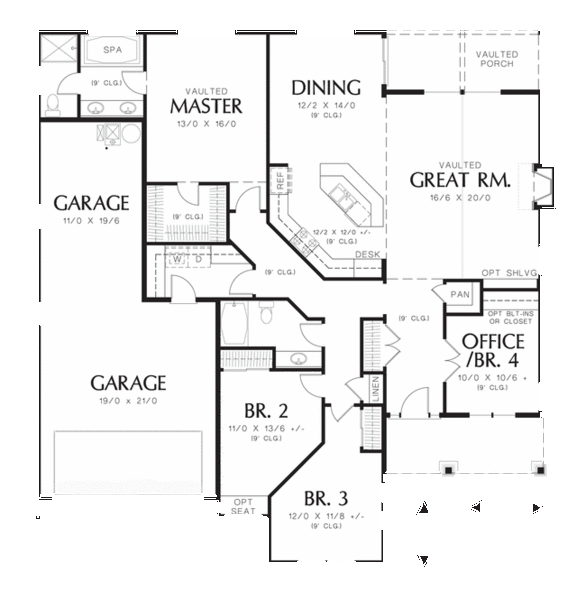

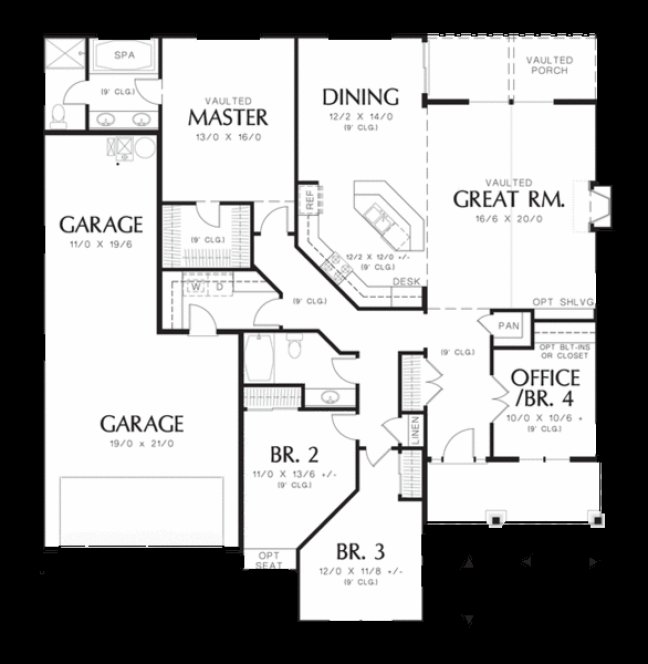

MAIN Plan –

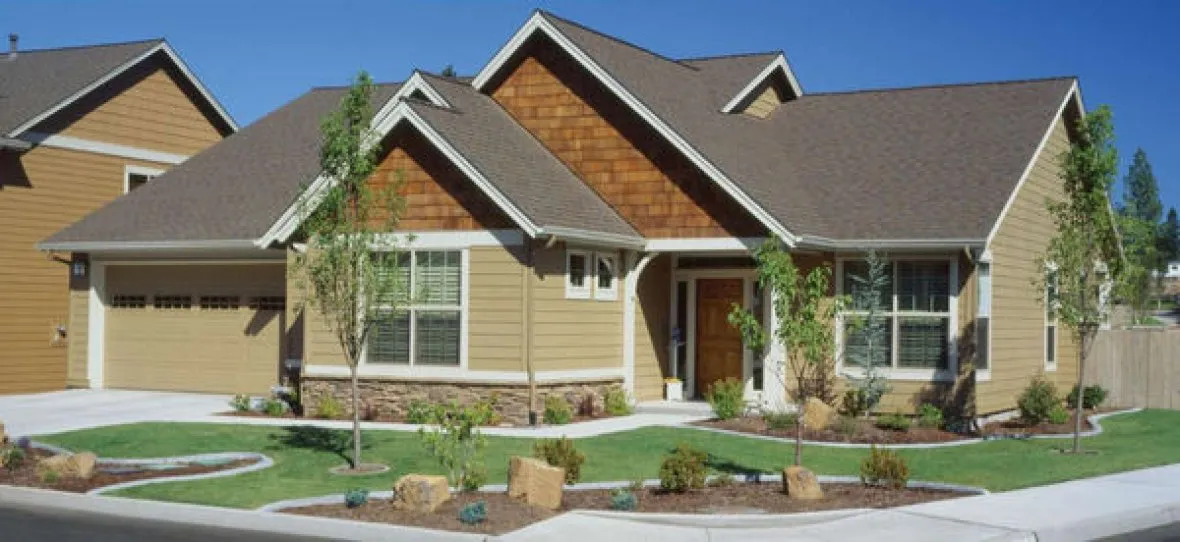

Front Photo - Bldr Mods –

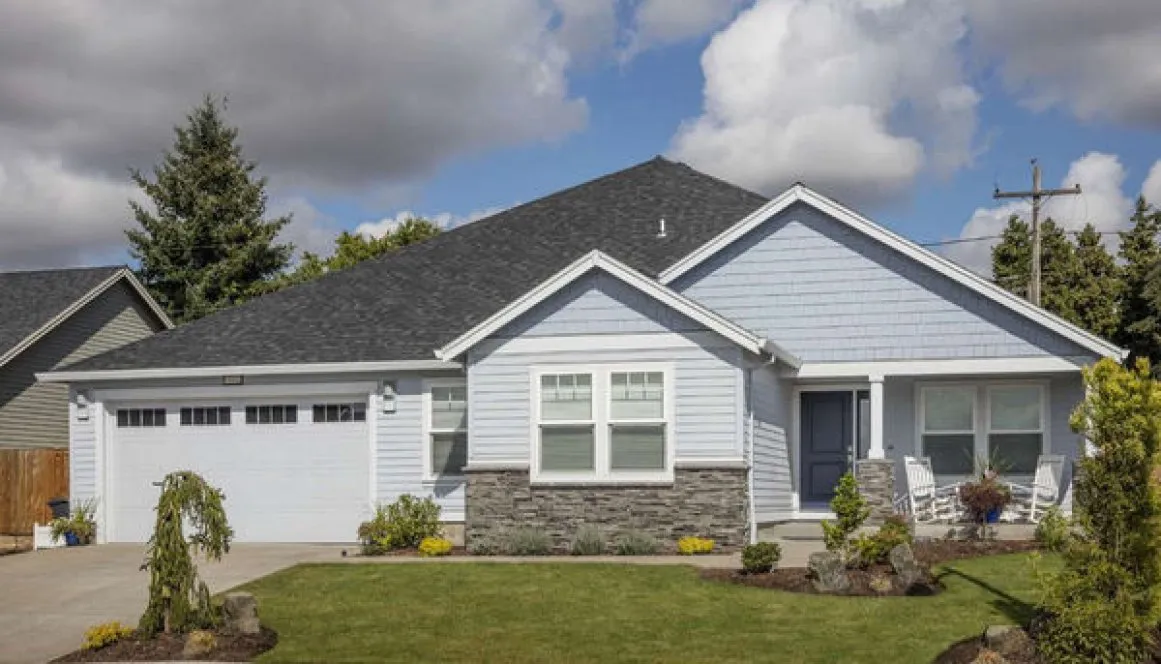

Front Photo - Bldr Mods –

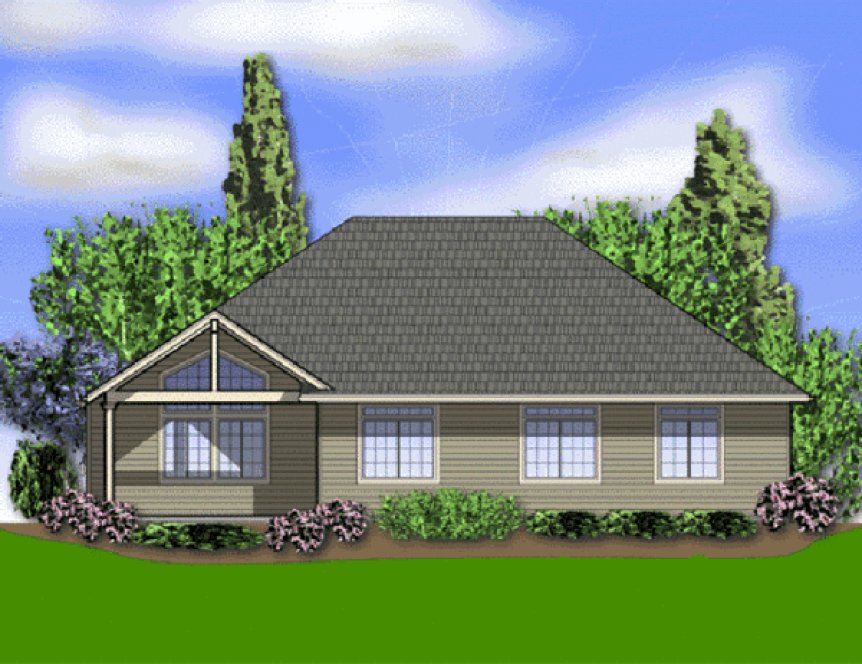

REAR Elevation –
