Plan No.268351

Versatile Cottage

This separated three bedroom vacation retreat boasts a free standing wood cooking stove in the Great Room that opens up to an inviting wrap around multi purpose deck through double French Doors. The large main floor guest bedroom is naturally lit with two large windows and has ample closet space. The upstairs Master Bedroom has two interior functionally opening windows that overlook the Great Room below creating a unique look and feel to this suite. A rear facing private balcony is accessed via triple French doors. Plans are designed with a walk out basement foundation plan. The walk-out is located under the rear facing sundeck. The Main Floor ceiling height soars from 8'0" to 17'0" at the peak. The Second Floor ceiling starts at 6'0" and climbs to 8'0" and 10'0".

Specifications

Total 1538 sq ft

  • Main: 902
  • Second: 636
  • Third:
  • Loft/Bonus:
  • Basement: 864
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 36'0
  • Depth: 50'6

Roof

  • Max Ridge Height: 31'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

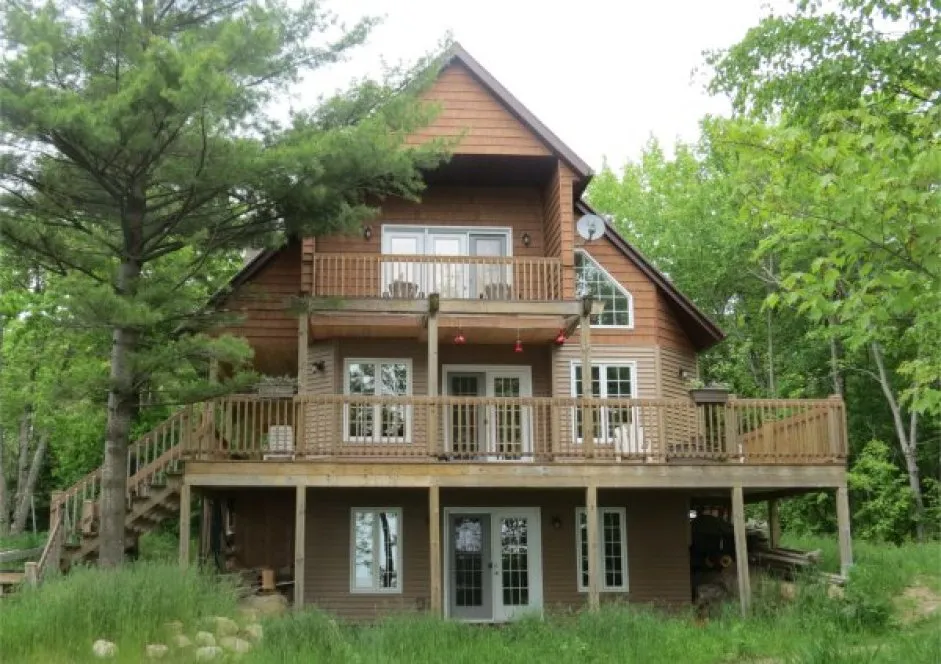

Full Rendering – westhomeplanners.com

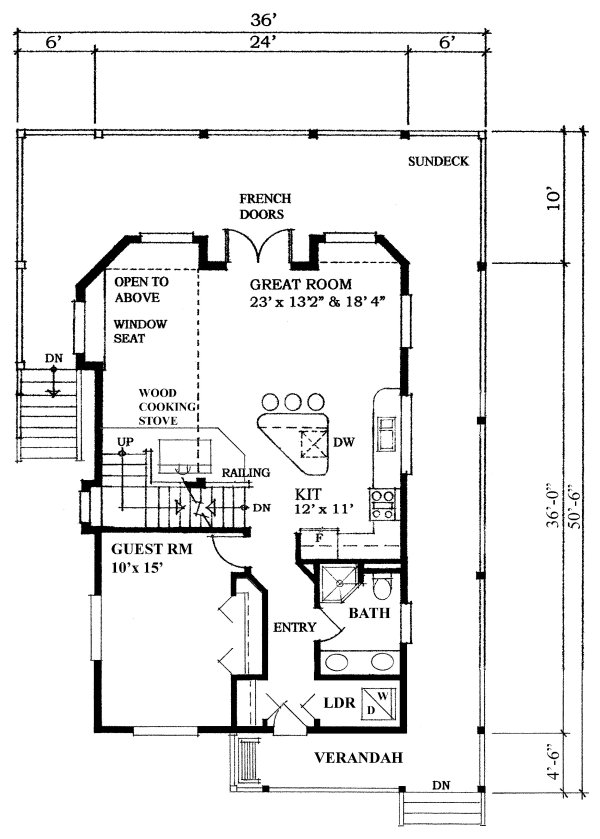

MAIN Plan – westhomeplanners.com

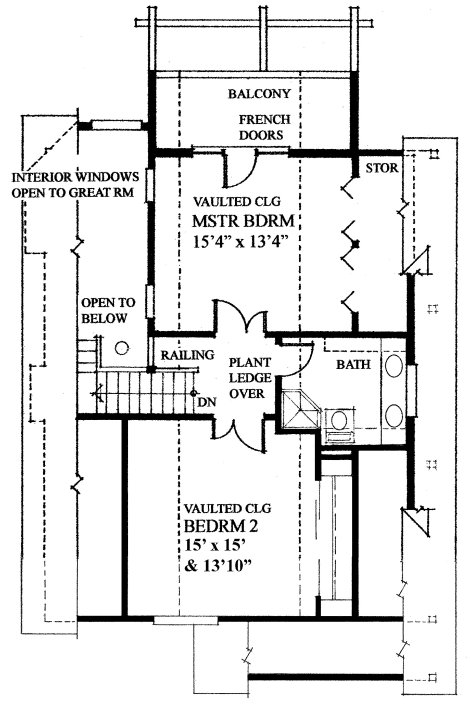

SECOND Plan – westhomeplanners.com
