Plan No.326442

Unapologetically French Provincial

Unapologetically French Provincial, this home's hip roof lines stand majestically over its stucco and board-and-batten sheathing. The foyer introduces views of a circular staircase and the formal living and dining rooms. The kitchen, breakfast nook, and family room join together in an ell at the rear of the plan. Two main-level suites are on opposite ends of the floor plan. A self-contained mother's suite is at the front of the plan with doors leading out into the enclosed courtyard. A kitchenette contained within the bedroom allows the guest to prepare light dishes, if desired. A full bath and walk-in closet adjoin the suite. Three secondary bedrooms on the upper level revolve around an open study/sitting area off the central staircase. A spacious exercise room rounds out the upper level.


Total 5347 sq ft

  • Main: 3624
  • Second: 1723
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 895


  • Beds: 5
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 2

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: 3 Car Garage
  • Width: 99'0
  • Depth: 103'0


  • Max Ridge Height: 30'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 0/12
Full Rendering –

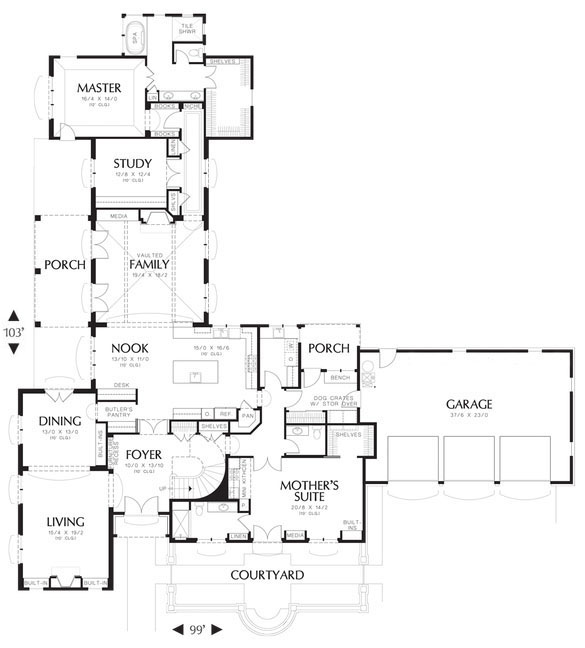

MAIN Plan –

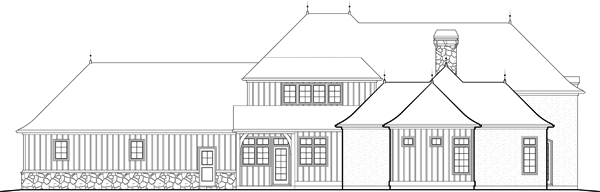

REAR Elevation –
LEFT Elevation –
REAR Elevation –
