Plan No.513500

California Style

Complete in California stucco, this handsome design features large windows for capturing light and views. The sunken living room boasts a vaulted ceiling and gas fireplace and is separated from the hall by decorative columns that also adorn the dining room. The skylit U-shaped kitchen with an attached breakfast room separates the dining room and the family room. Special features in the family room include deck access, a through-fireplace to the master bedroom and a built-in audio-visual center. The master suite is truly lavish and offers a skylit sitting area with sliding glass doors to the deck, a spiral stair to the den on the second floor, and a bath with a skylit whirlpool tub and double vanities. Besides the den, the second floor also holds two family bedrooms and a full bath.


Total 2852 sq ft

  • Main: 1920

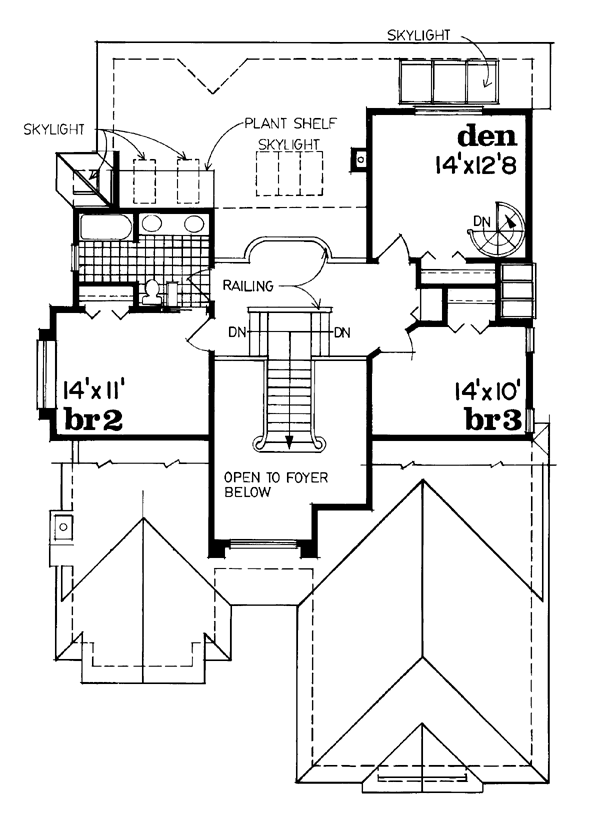

  • Second: 932
  • Third:
  • Loft/Bonus:
  • Basement: 1920
  • Garage:


  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 44'0
  • Depth: 64'0


  • Max Ridge Height: 28'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

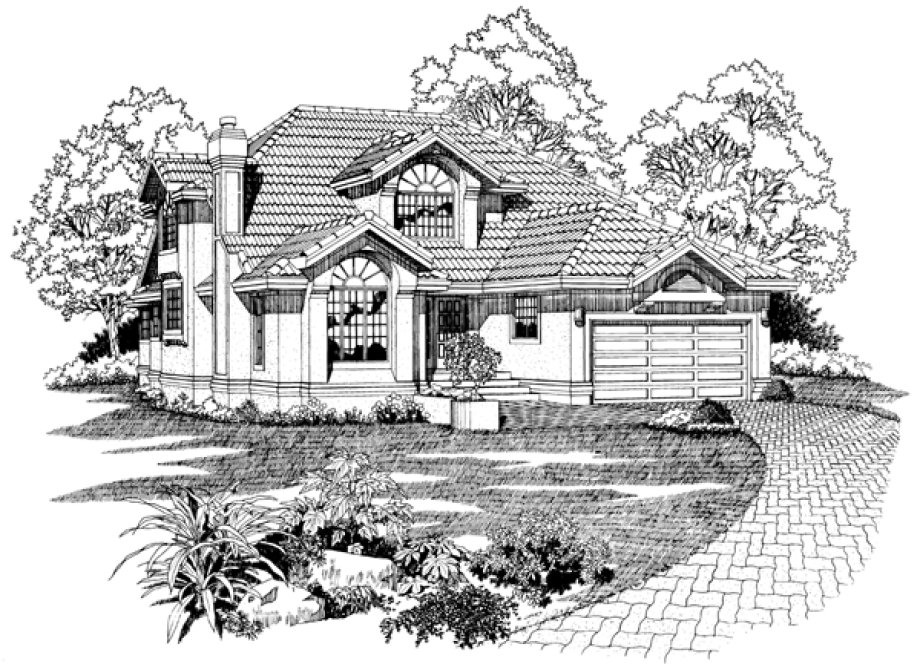

Full Rendering –

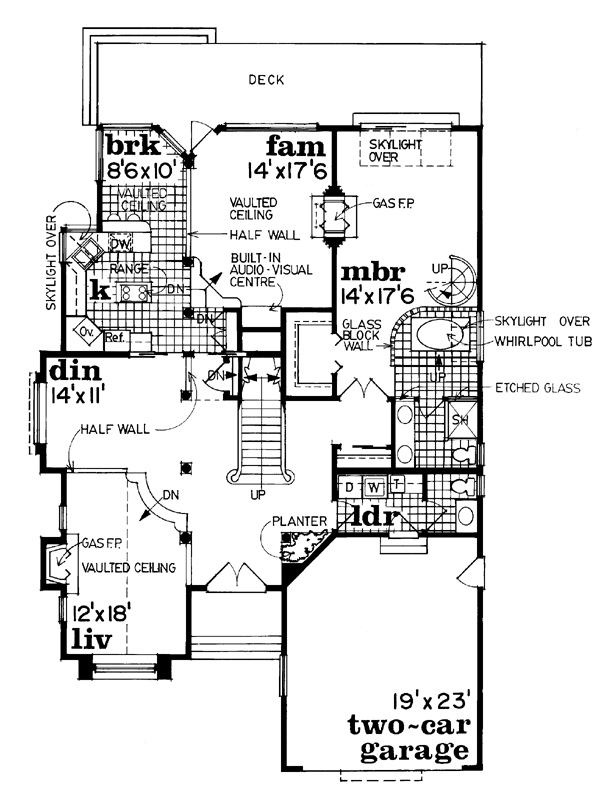

MAIN Plan –

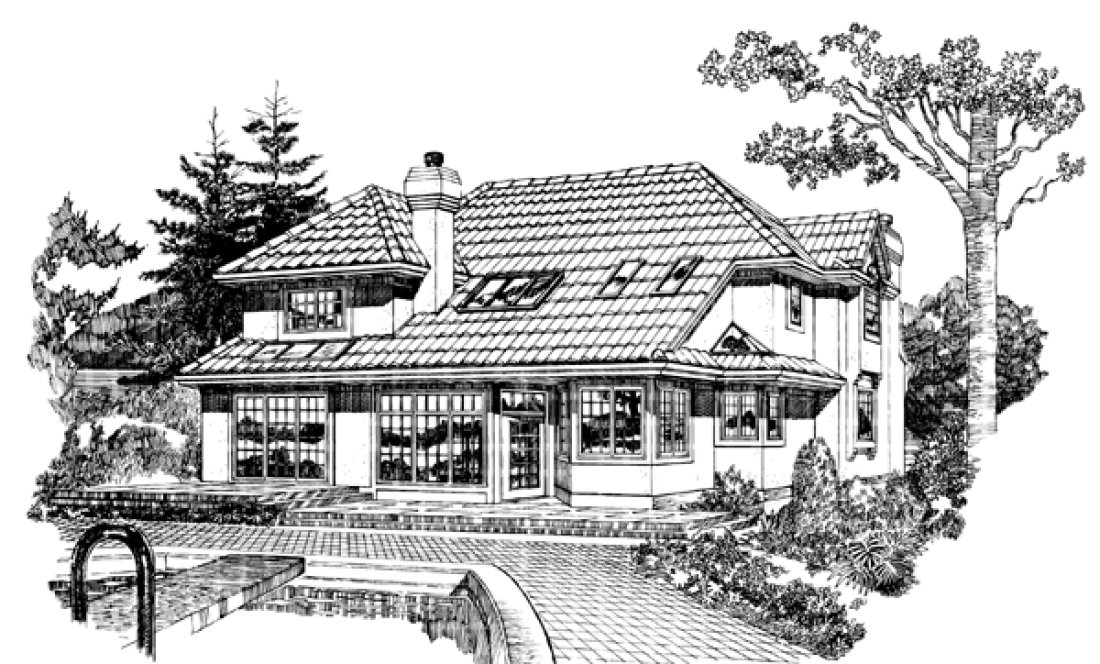

REAR Elevation –
