Plan No.575952

Large Front Porch

This ‘Traditional’ style 2 storey features 9’ high walls on both Main and Upper floors. There is a Walk-out Lower floor (Basement) on the right side of the house. The Lower floor is shown developed on the working drawings and includes a future Recreation Room. The exterior is a tasteful blend of “Hardi-plank" siding, vertical shingles and stone. The Double Garage enters the home via a Mud Room. A full width covered Porch at the Front Entry welcomes guests and family alike and provides a shady spot to sit and relax on a hot summer's evening. A Butler’s Pantry is found by the Kitchen at the Dining room entry.

Specifications

Total 2595 sq ft

  • Main: 1363
  • Second: 1232
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 63'0
  • Depth: 41'6

Roof

  • Max Ridge Height:
  • Comments: ()
  • Primary Pitch: /12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

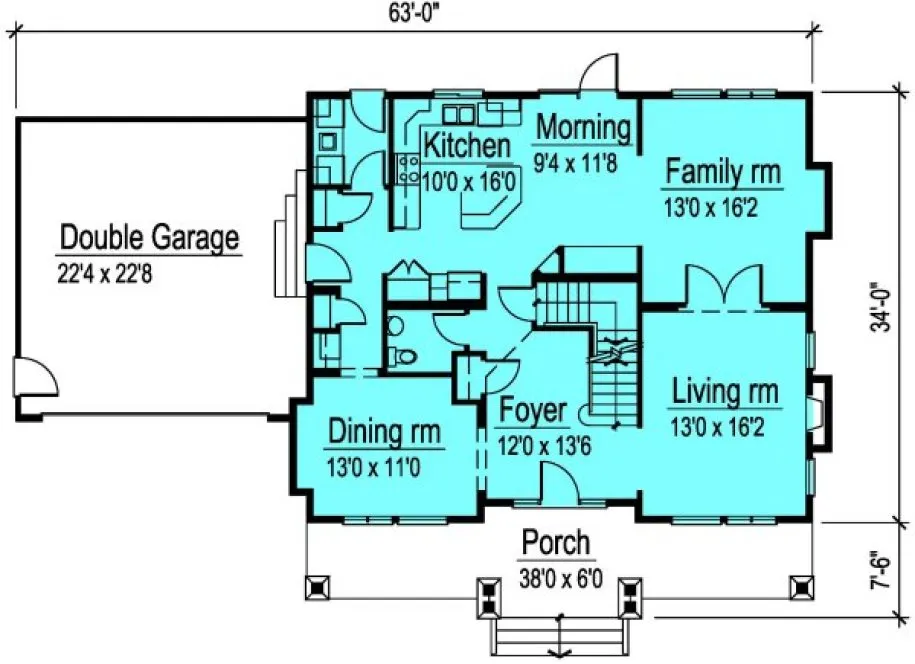

MAIN Plan – westhomeplanners.com

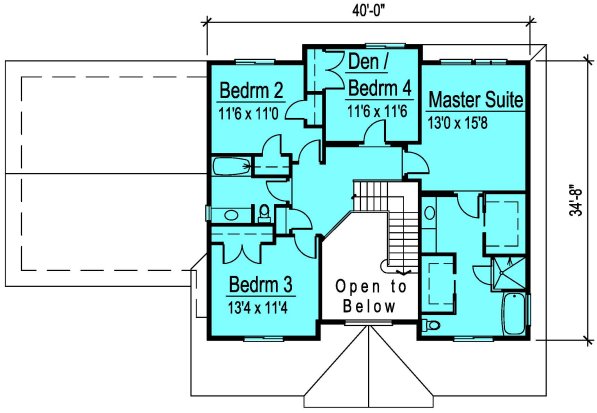

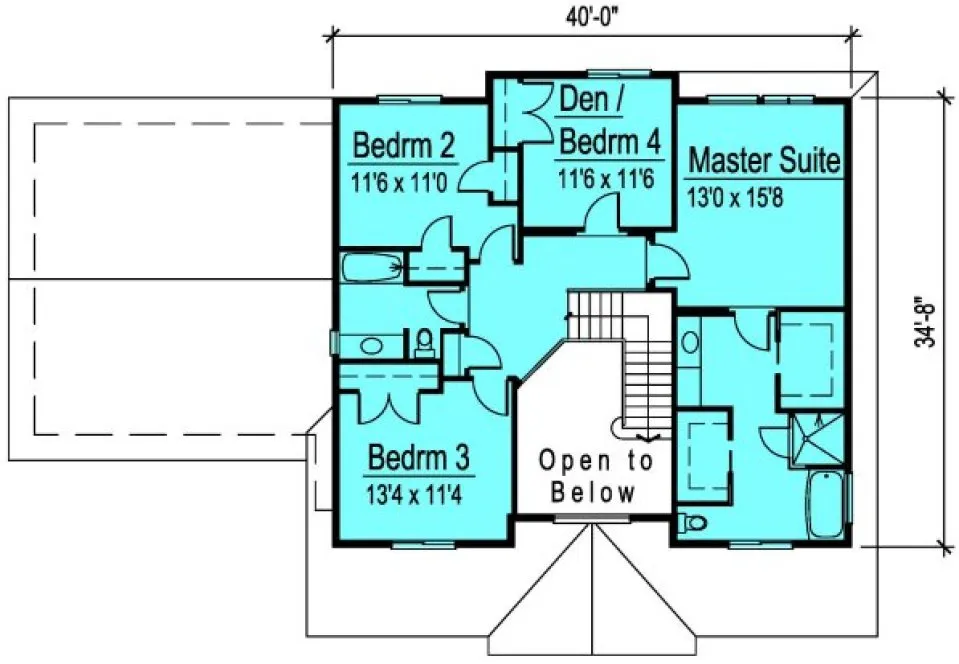

SECOND Plan – westhomeplanners.com

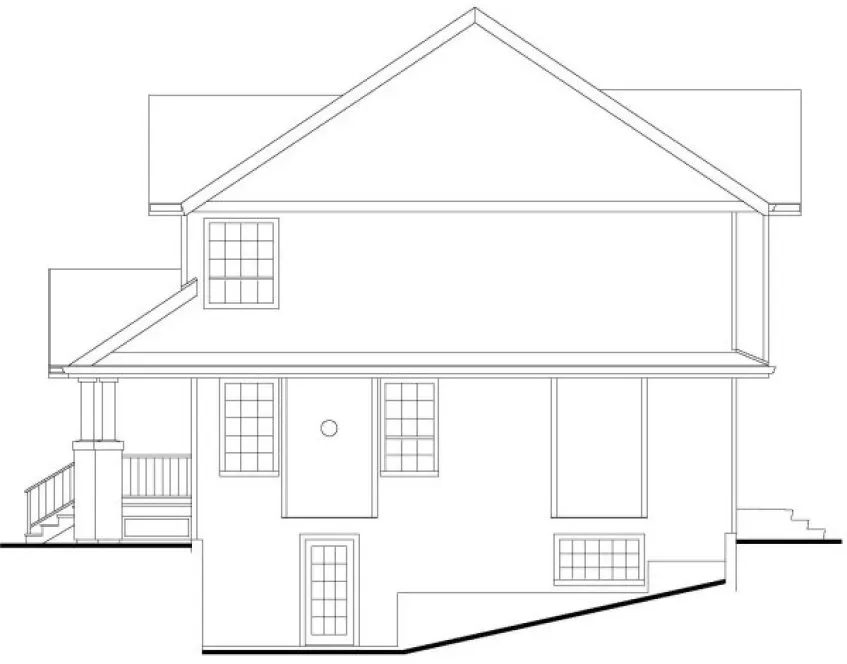

RIGHT Elevation – westhomeplanners.com
