Plan No.135054

Soaring Design

This is a great little getaway home with all the conveniences. The main Bedroom is on the first floor while up in the loft there is a bonus sleeping area. The soaring ceiling inside over the Great Room and Dining area enhances the overall spacious feeling of this design and the glass feature lets the light and view in.

Specifications

Total 668 sq ft

  • Main: 528
  • Second:
  • Third:
  • Loft/Bonus: 140
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus: 9'6
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 22'0
  • Depth: 24'0

Roof

  • Max Ridge Height: 21'0
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

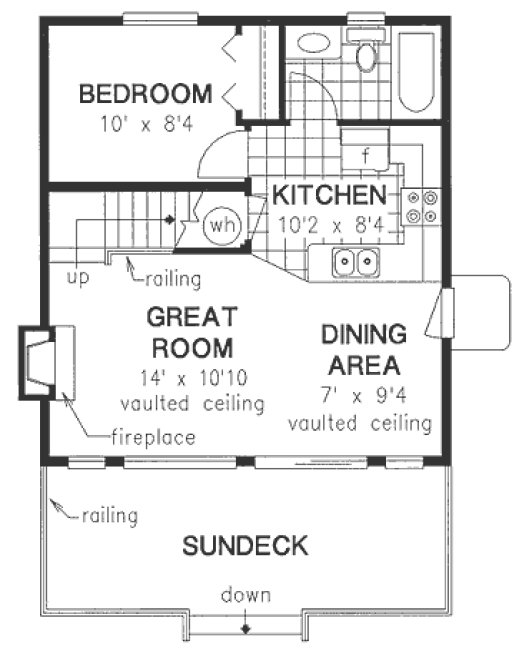

MAIN Plan – westhomeplanners.com

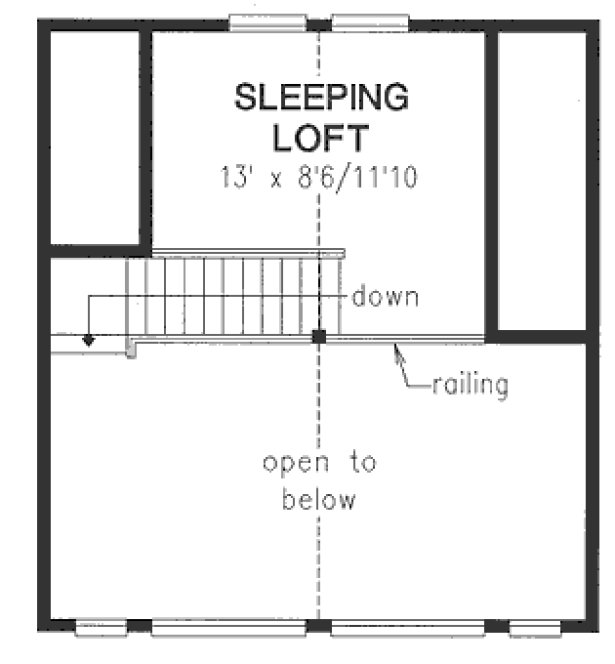

SECOND Plan – westhomeplanners.com

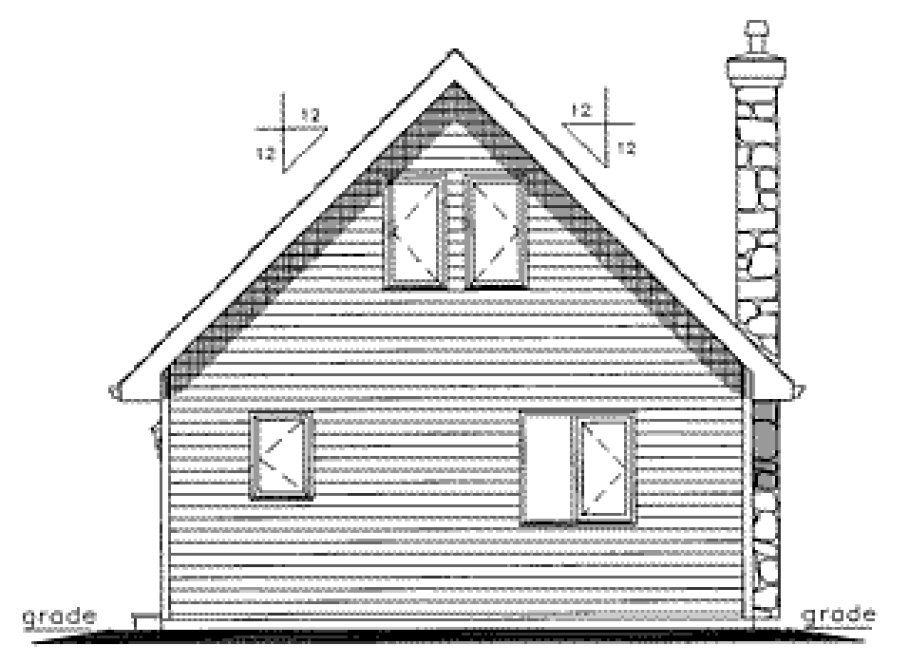

REAR Elevation – westhomeplanners.com
