Plan No.347183

Spacious Townhome

Narrow where it fronts the street, this Mediterranean-style townhome is actually quite large. It’s two stories high, and extends quite a ways back. The living room, dining area and kitchen flow together in a wide-open space, which links with a large, partially covered patio. Double doors open into the owners’ suite, which has a roomy walk-in closet.

Specifications

Total 2559 sq ft

  • Main: 1378
  • Second: 797
  • Third:
  • Loft/Bonus: 384
  • Basement:
  • Garage: 563

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath: 1

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 34'4
  • Depth: 89'0

Roof

  • Max Ridge Height: 27'0
  • Comments: ()
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

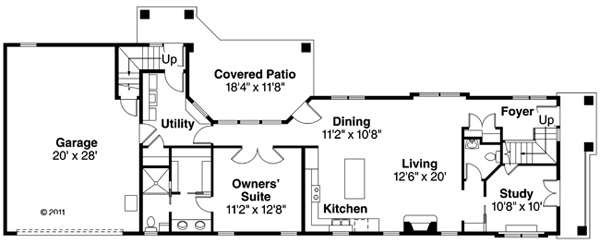

MAIN Plan – westhomeplanners.com

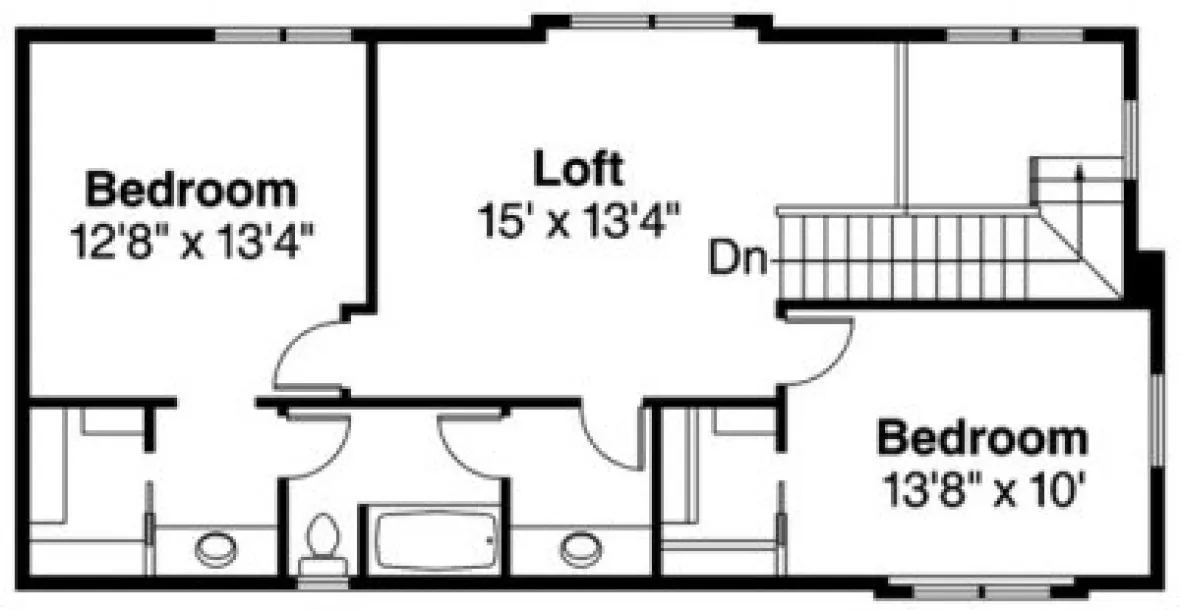

SECOND Plan – westhomeplanners.com

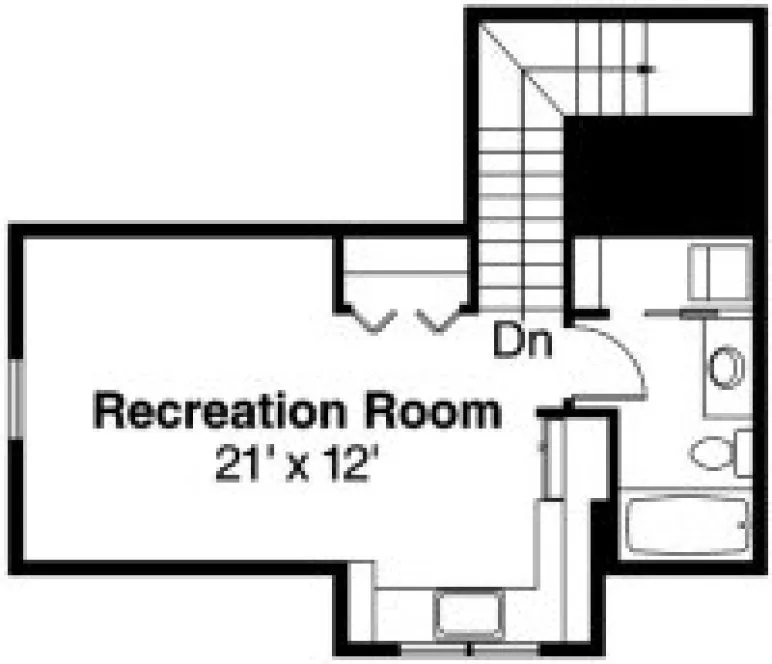

ATTIC Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com

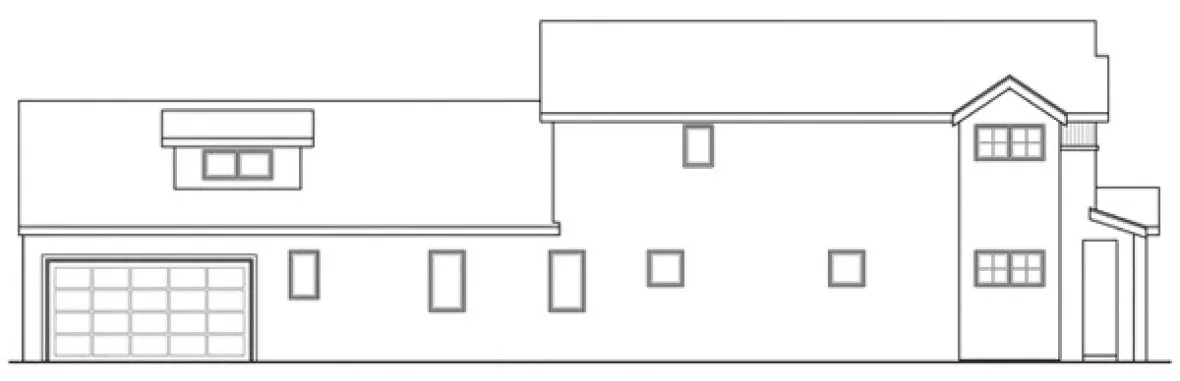

LEFT Elevation – westhomeplanners.com

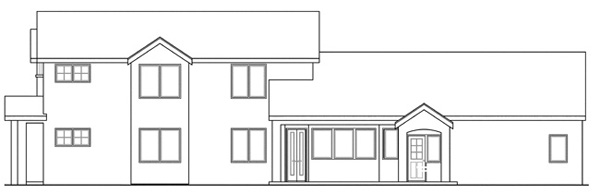

RIGHT Elevation – westhomeplanners.com
