Plan No.246234

Slab foundation standard, Crawlspace foundation, Basement foundation (unfinished) available for $150.00, 2 x 4 stud construction, 2 x 6 exterior wall conversion available for $250.00, common frame roof (30/20 load design) with a note option for Roof Trusses. The ceiling heights and room sizes are shown on the artist floorplan. Plans can also be sent to the customer in PDF or CAD (SoftPlan, DWG or DXF)

Specifications

Total 1488 sq ft

  • Main: 1488
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 520

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 10'4

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 56'4
  • Depth: 48'10

Roof

  • Max Ridge Height: 21'0
  • Comments: ()
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

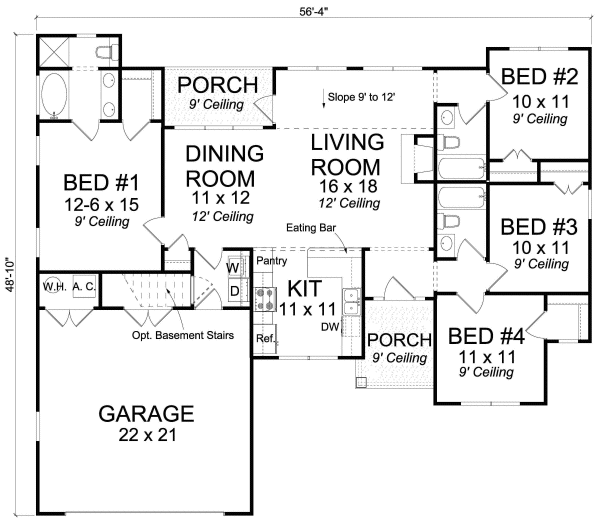

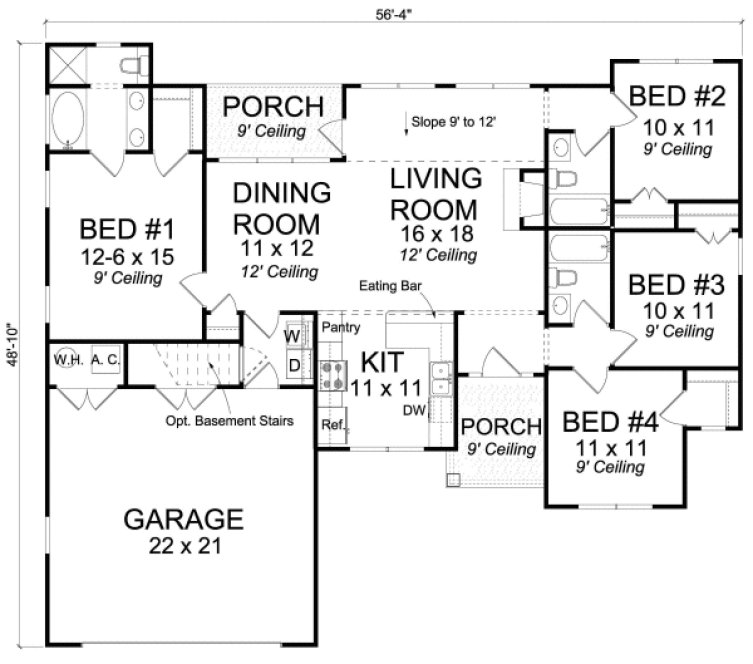

MAIN Plan – westhomeplanners.com
Alt. Rendering – westhomeplanners.com

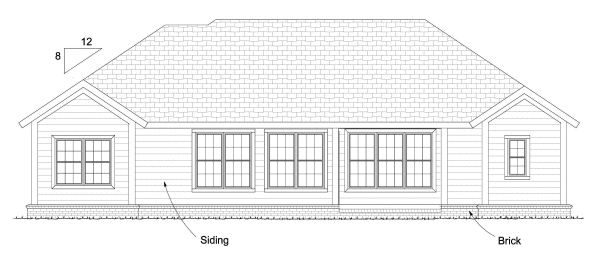

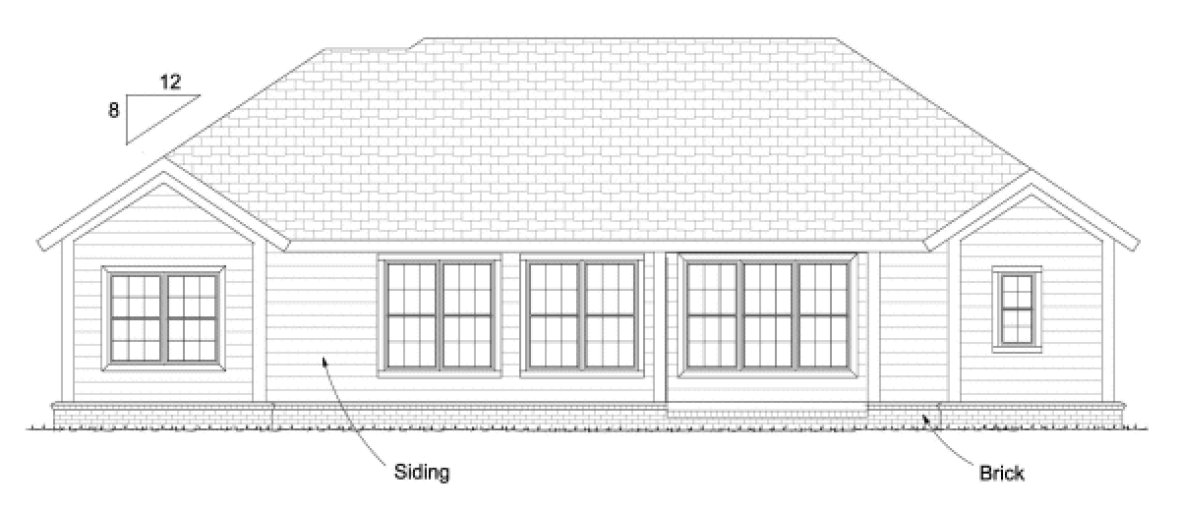

REAR Elevation – westhomeplanners.com
