Plan No.265451

The RV garage portion of this combination garage has a fourteen foot high ceiling accessed though a twelve foot high by twelve foot wide overhead door. The double car garage has a nine foot high ceiling with an eight foot high by sixteen foot wide overhead door. The covered entry opens into the workshop and boasts a half bath and coats closet. Slide the entry door over to allow space for a shower in the bathroom if desirable. The conveniently located workshop provides access to both garage areas while still being its own separate heated area if required. Plans are designed with a concrete slab foundation plan.

Specifications

Total 1546 sq ft

  • Main: 1546
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds:
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 54'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 21'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

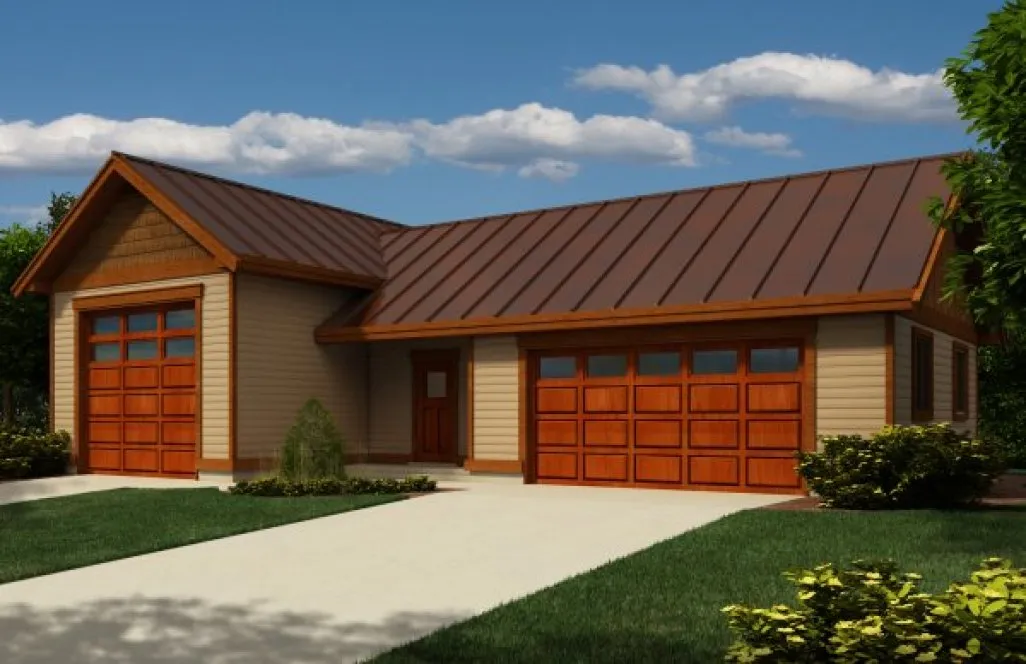

Full Rendering – westhomeplanners.com

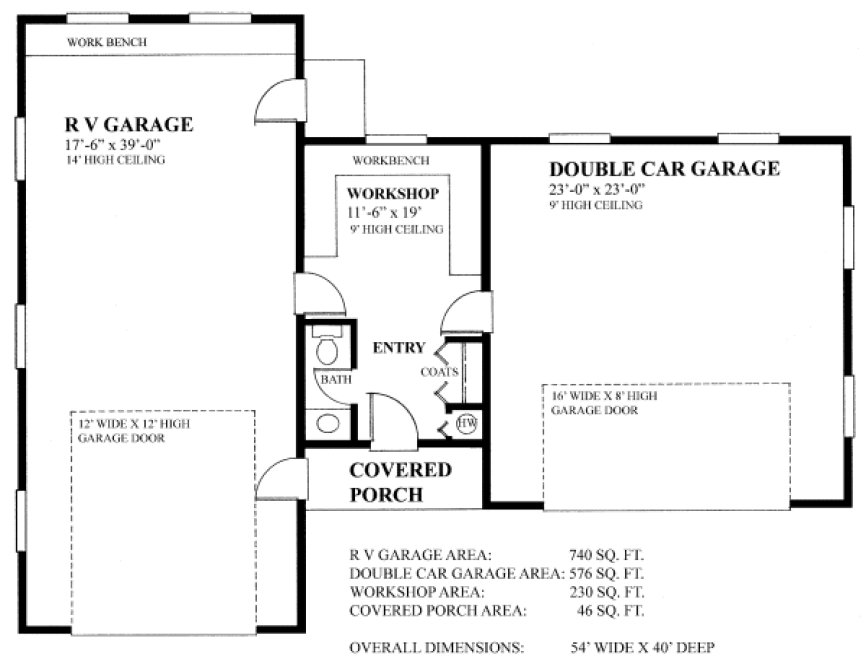

MAIN Plan – westhomeplanners.com
