Plan No.511000

Main Floor Master Suite

A covered verandah with a covered patio above opens through French doors to the living/dining area of this vacation cottage. A masonry fireplace with a wood storage bin warms this area. A modified U-shaped kitchen serves the dining room; a laundry is just across the hall with access to a side verandah. The first-floor master bedroom has the use of a full bath. Sliding glass doors in the master bedroom and the living room lead to still another verandah. The second floor has two family bedrooms, a full bath and a family room with a fireplace, double doors to a deck and a balcony overlooking the living room and dining room. A large storage area on this level adds convenience.

Specifications

Total 1670 sq ft

  • Main: 1094
  • Second: 576
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 10'7
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 43'0
  • Depth: 35'4

Roof

  • Max Ridge Height: 25'0
  • Comments: ()
  • Primary Pitch: 9.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

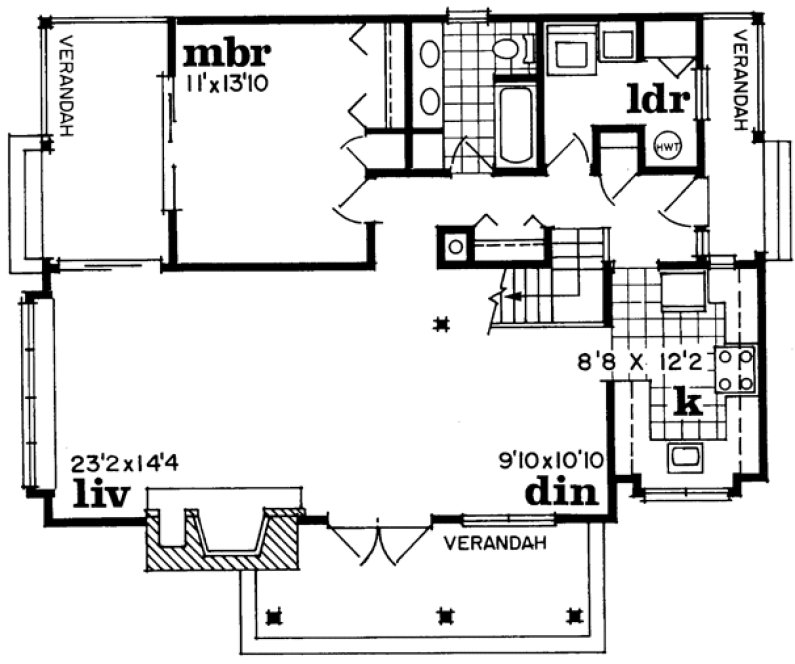

MAIN Plan – westhomeplanners.com

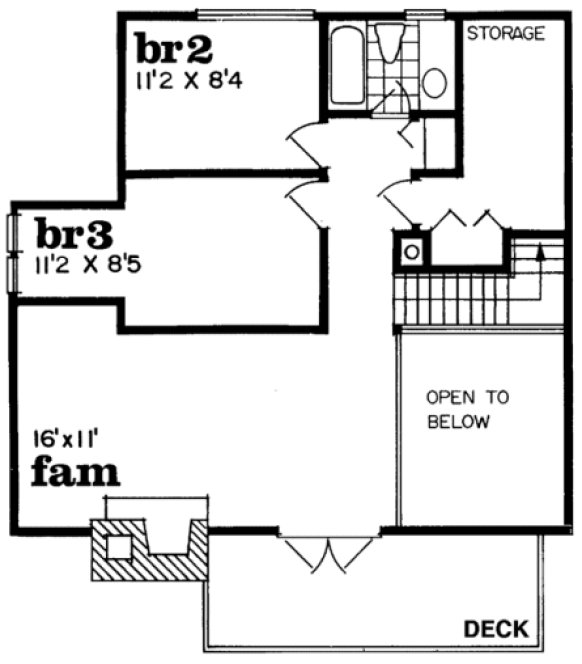

SECOND Plan – westhomeplanners.com

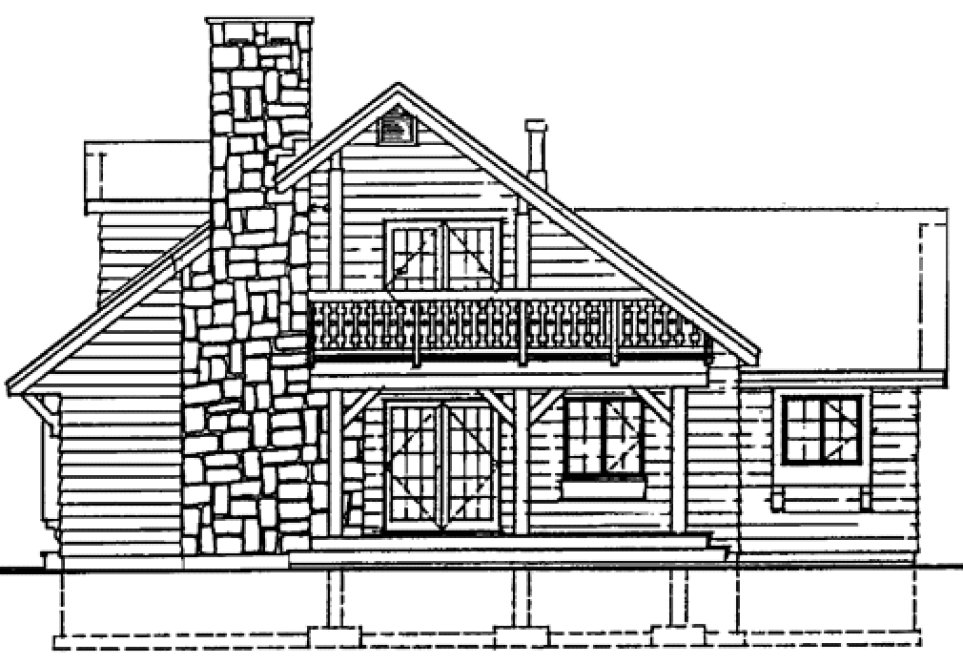

Front Elevation – westhomeplanners.com

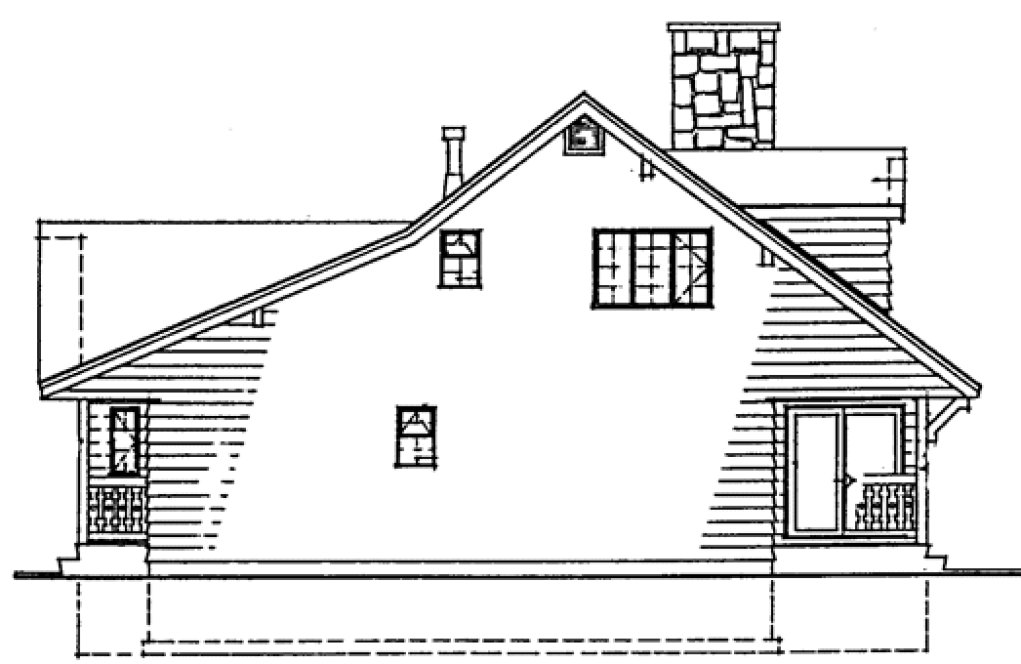

REAR Elevation – westhomeplanners.com

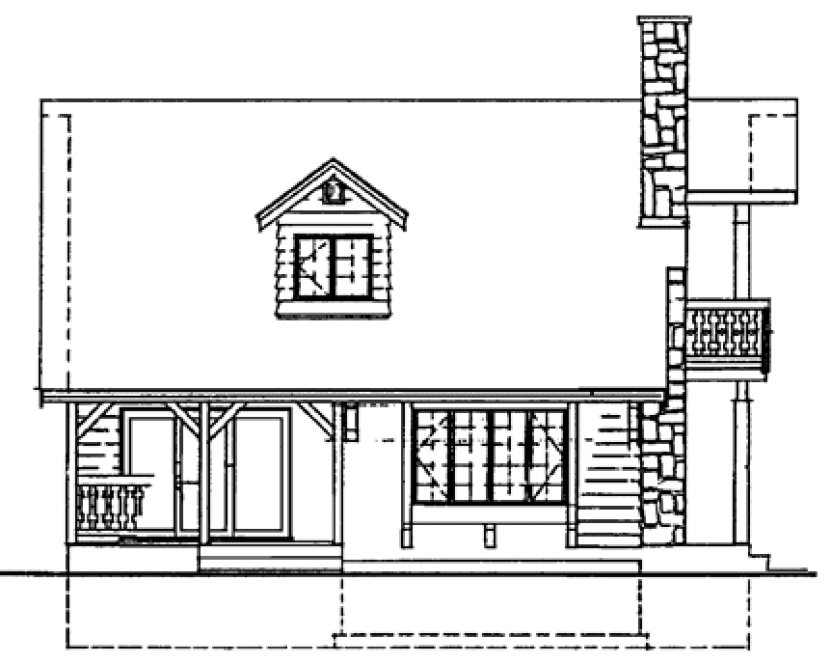

LEFT Elevation – westhomeplanners.com

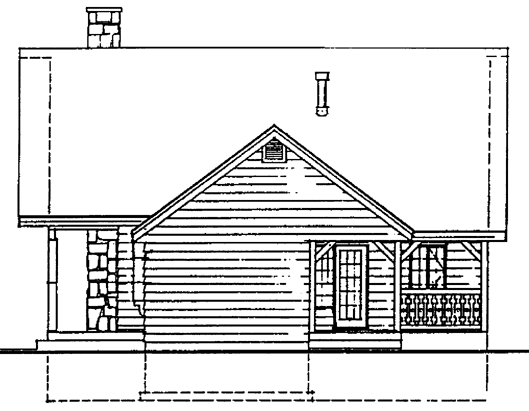

RIGHT Elevation – westhomeplanners.com
