Plan No.513100

Cozy Chalet

This cozy chalet design begins with a railed verandah opening to a living room with a warm fireplace and a dining room with a snack-bar counter through to the kitchen. One bedroom with a roomy wall closet is on the first floor. The second floor holds two additional bedrooms--one a master suite with a private balcony--and a full bath. Additional storage is found on the second floor. This cozy chalet design begins with a railed verandah opening to a living room with a warm fireplace and a dining room with a snack-bar counter through to the kitchen. One bedroom with a roomy wall closet is on the first floor.

Specifications

Total 1286 sq ft

  • Main: 725
  • Second: 561
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath: 1

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 25'0
  • Depth: 37'0

Roof

  • Max Ridge Height: 27'0
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

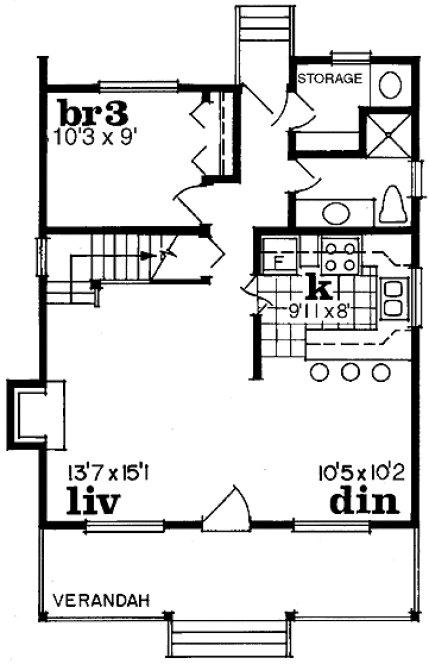

MAIN Plan – westhomeplanners.com

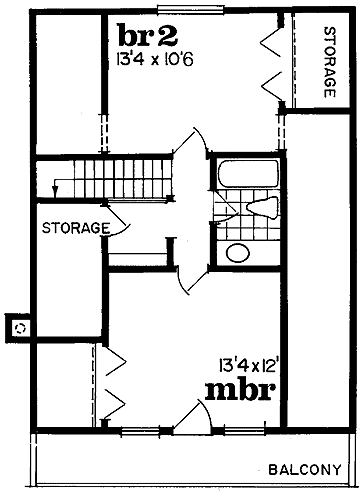

SECOND Plan – westhomeplanners.com

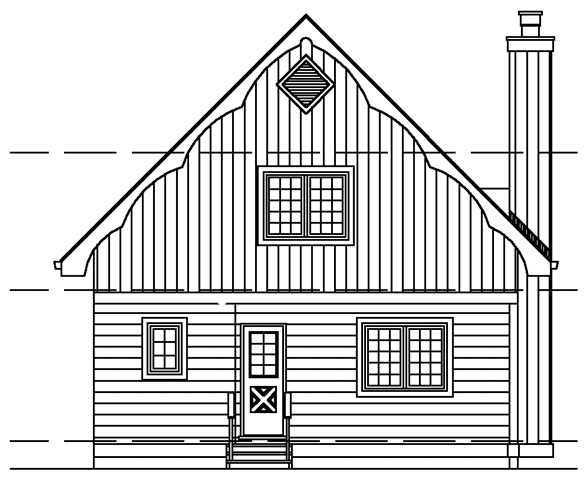

REAR Elevation – westhomeplanners.com

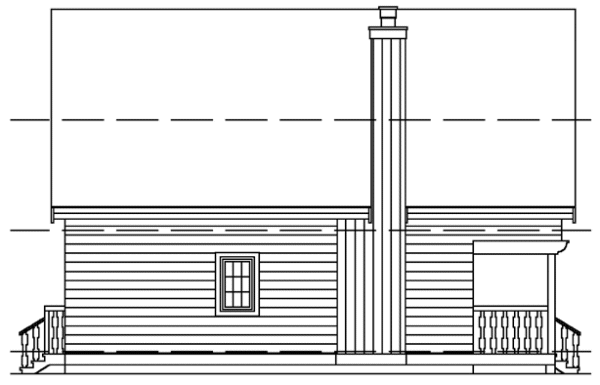

LEFT Elevation – westhomeplanners.com

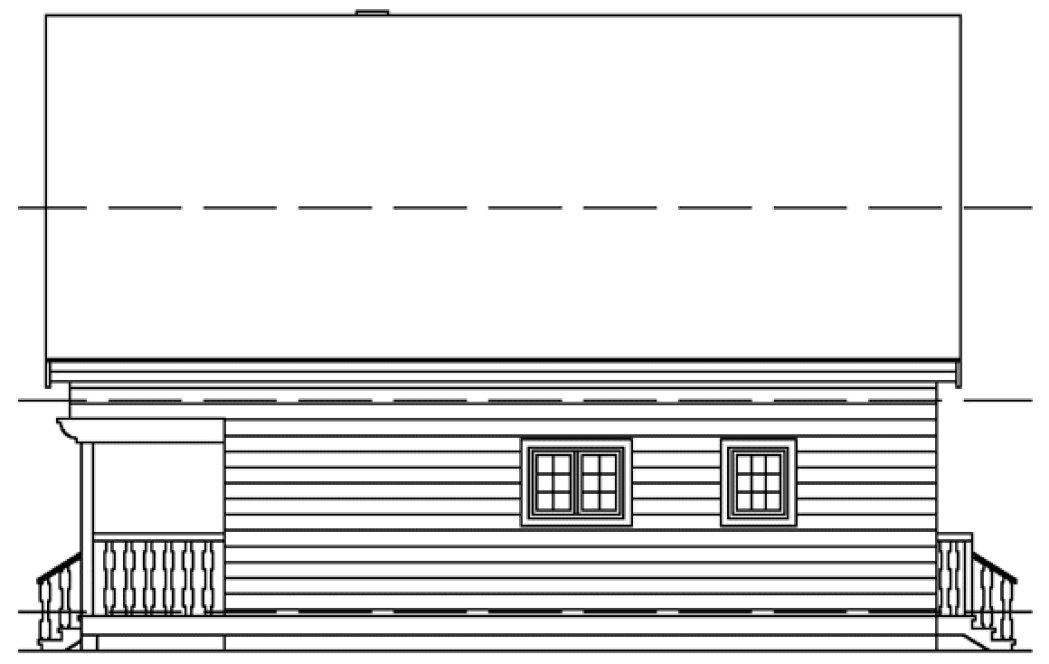

RIGHT Elevation – westhomeplanners.com
