Plan No.535330

Surprises and Excitement

This one level home offers surprises and excitement at every turn. Columns frame the foyer and an open staircase yields views to the spectacular great room. Arched openings and sloped ceilings raise the distinctive interior design elements to the highest level. Decorative columns are repeated at the opening from the great room to the formal dining area. A curved counter top with seating creates a delightful bar for quick meals or to accommodate an oversized crowd. Split bedrooms offer privacy to the homeowner, while a compartmented bath in the master bedroom forms a separate vanity area. Double doors off the foyer enable one bedroom to function as a library offering flexibility to the floor plan. A full basement provides space that can be accessed for additional square footage.

Specifications

Total 1544 sq ft

  • Main: 1544
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 1544
  • Garage: 400

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 9'4

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 50'8
  • Depth: 54'2

Roof

  • Max Ridge Height: 24'3
  • Comments: ()
  • Primary Pitch: /12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

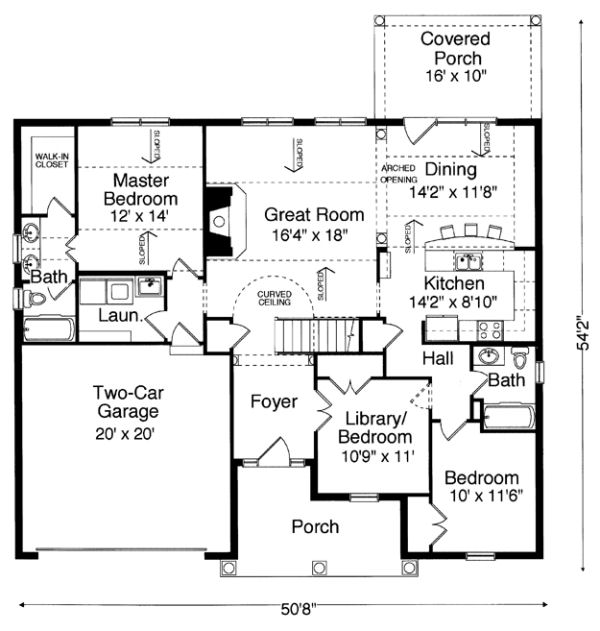

MAIN Plan – westhomeplanners.com
 – westhomeplanners.com

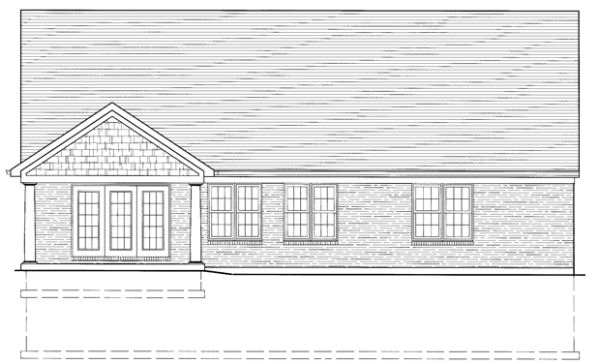

REAR Elevation – westhomeplanners.com

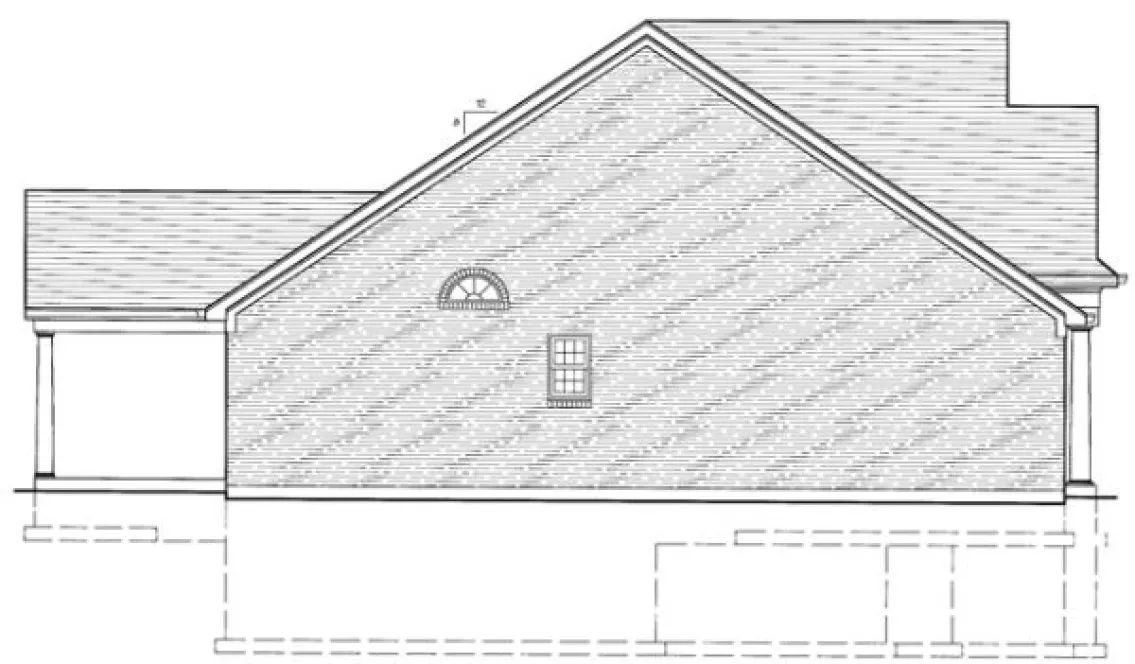

LEFT Elevation – westhomeplanners.com

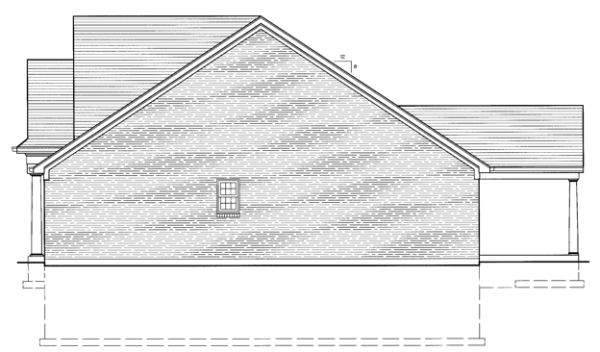

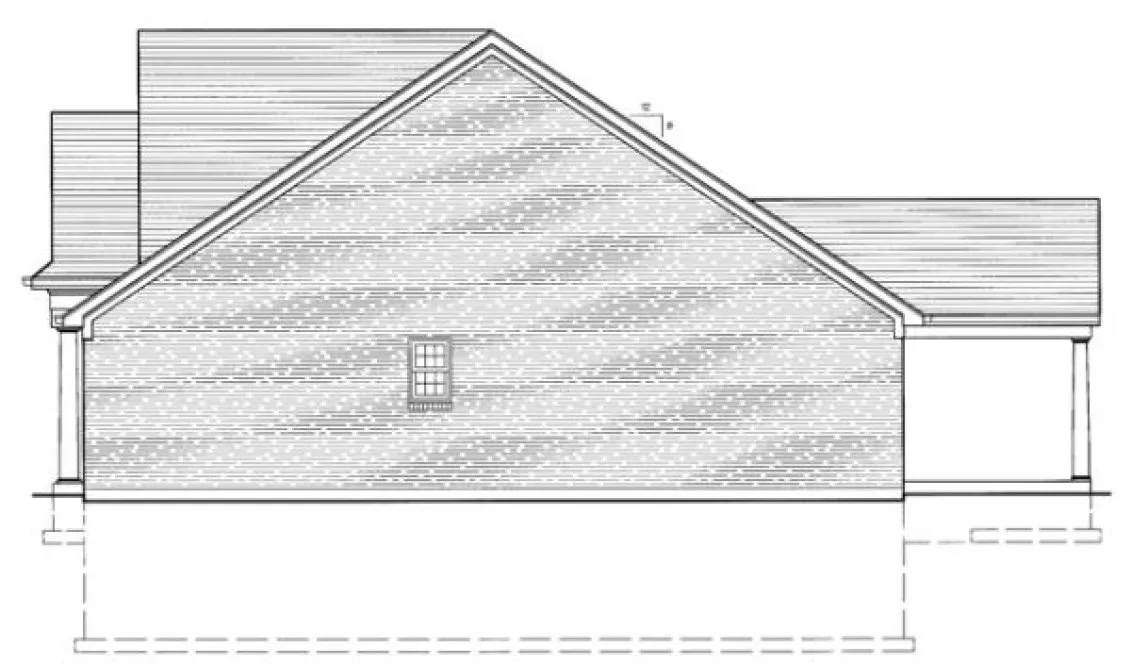

RIGHT Elevation – westhomeplanners.com
