Plan No.195260

Craftsman Style Duplex

This side-by-side Craftsman-style duplex features a modern and open layout designed for comfortable living. The master bedroom is complete with a walk-in closet and en suite, and the two other bedrooms make it perfect as a home for family life. Each unit features its own single car garage, laundry room, and main floor powder room. An optional unfinished basement foundation also gives the option of a recreation room or extra bedrooms. TOTAL LIVING AREA: Main Floor Area – 624 x 2 = 1248 sq.ft. (total main floor sq. ft. both units); Second Floor Area – 870 x 2 = 1740 sq.ft. (total second floor sq. ft. both units); Basement Area – 624 x 2 = 1248 sq.ft. (total basement sq. ft. both units); Garage Area – 294 x 2 = 588 sq.ft. (total garage sq. ft. both units).

Specifications

Total 2988 sq ft

  • Main: 624
  • Second: 870
  • Third:
  • Loft/Bonus:
  • Basement: 642
  • Garage: 294

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 9'4

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 43'0
  • Depth: 48'0

Roof

  • Max Ridge Height: 29'0
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

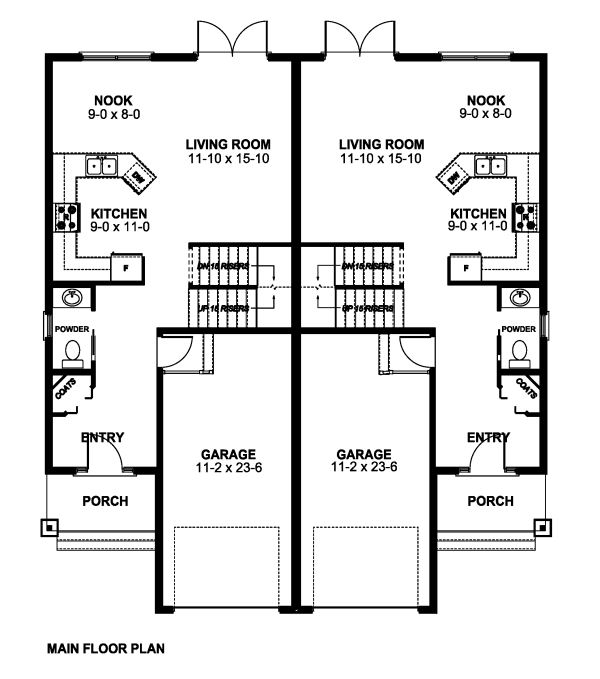

MAIN Plan – westhomeplanners.com

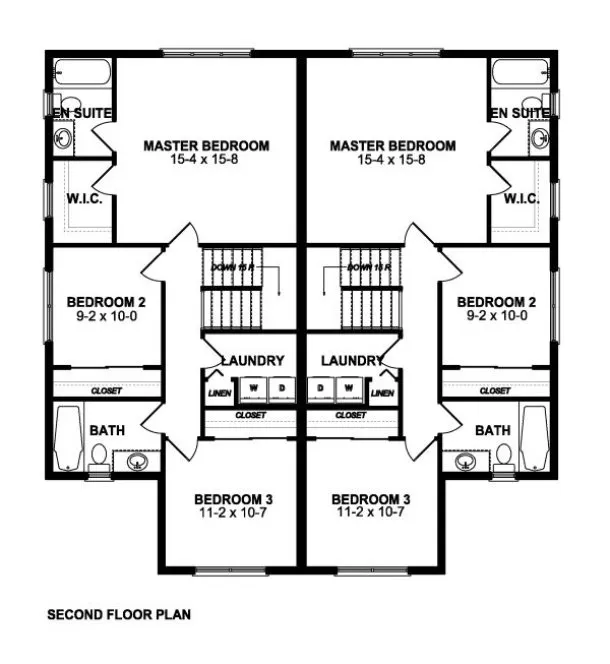

SECOND Plan – westhomeplanners.com

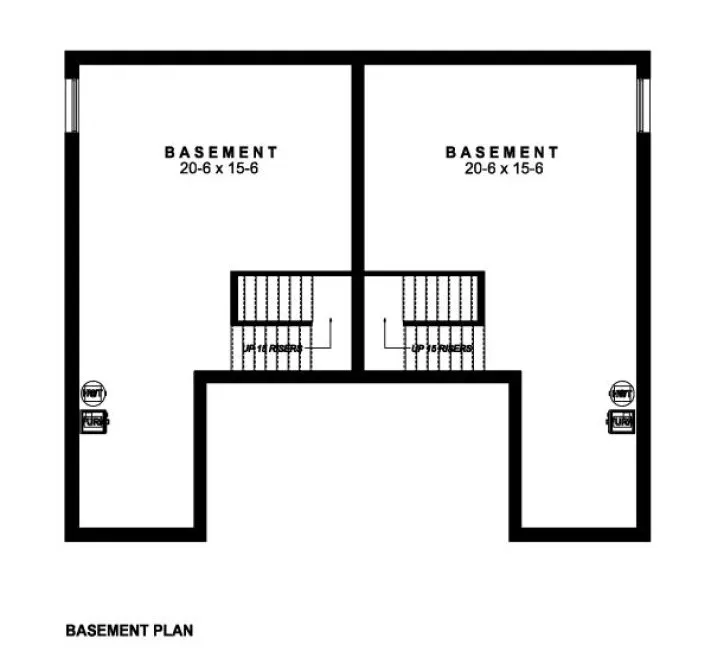

BASEMENT Plan – westhomeplanners.com
 – westhomeplanners.com

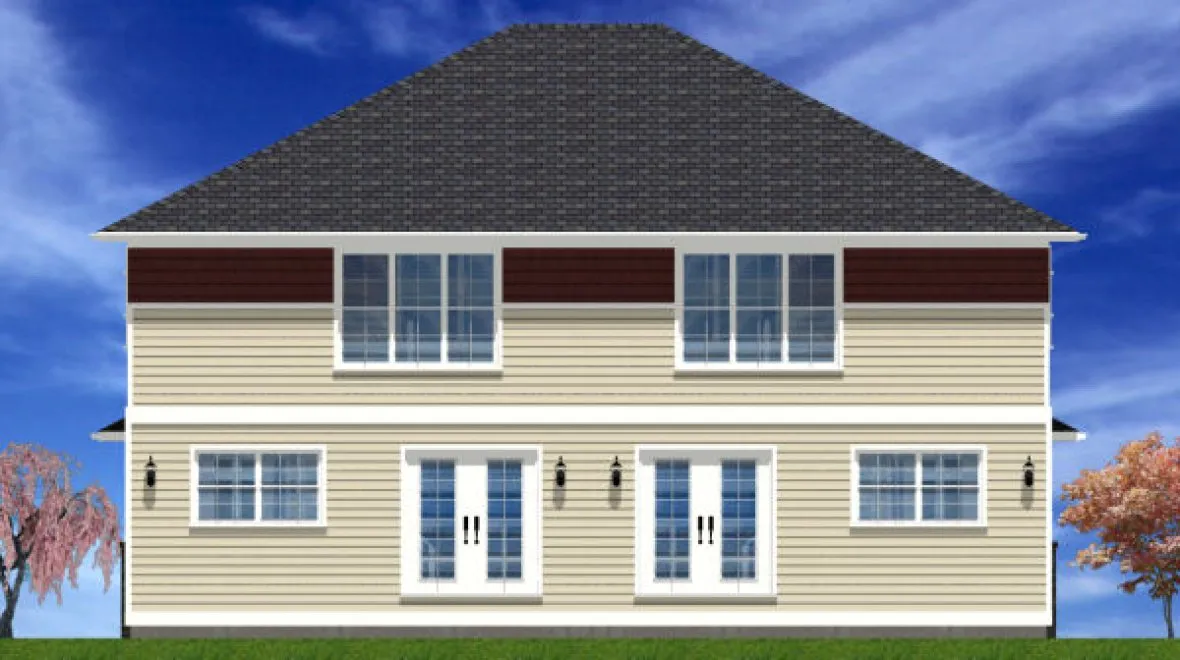

REAR Elevation – westhomeplanners.com

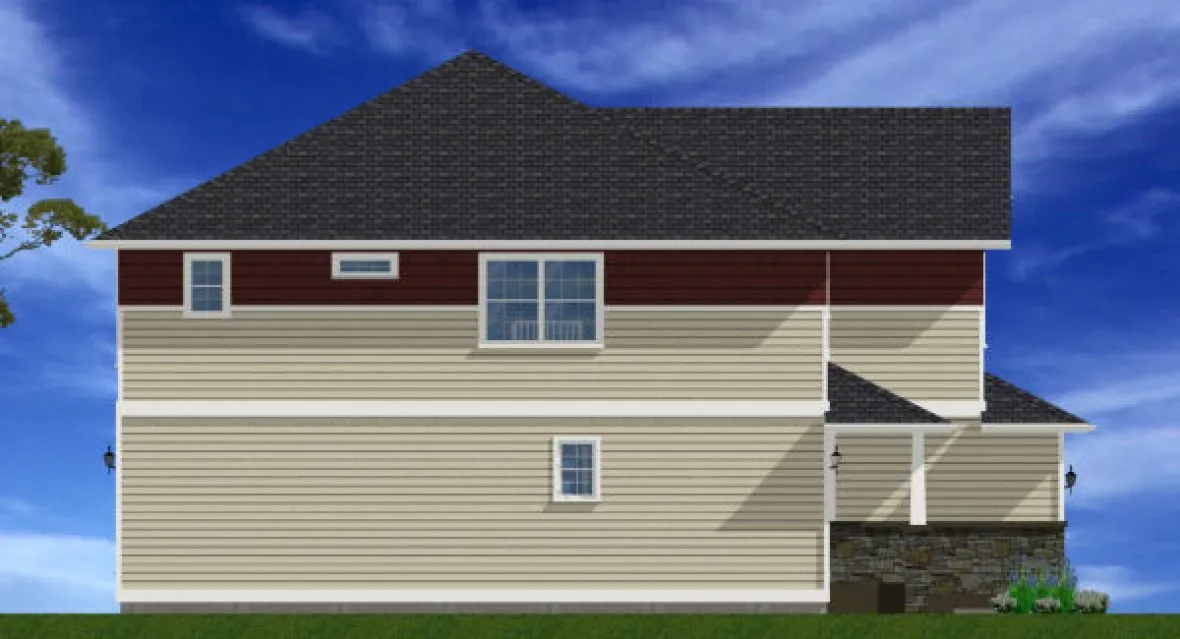

LEFT Elevation – westhomeplanners.com

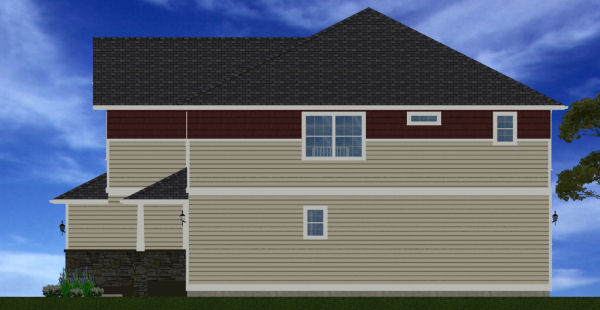

RIGHT Elevation – westhomeplanners.com
FRONT RENDERING – westhomeplanners.com
