Plan No.458004

The three bedroom apartment has an area of 1162 sq. ft. while the studio apartment is 523 sq. ft. and the recording studio is 779 sq. ft.

Specifications

Total 5984 sq ft

  • Main: 3520
  • Second: 2464
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 3520

Rooms

  • Beds: 5
  • Baths: 4
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 10'8
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 10'8

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 88'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 30'8
  • Comments: ()
  • Primary Pitch: 6.00/12
  • Secondary Pitch: 12.00/12

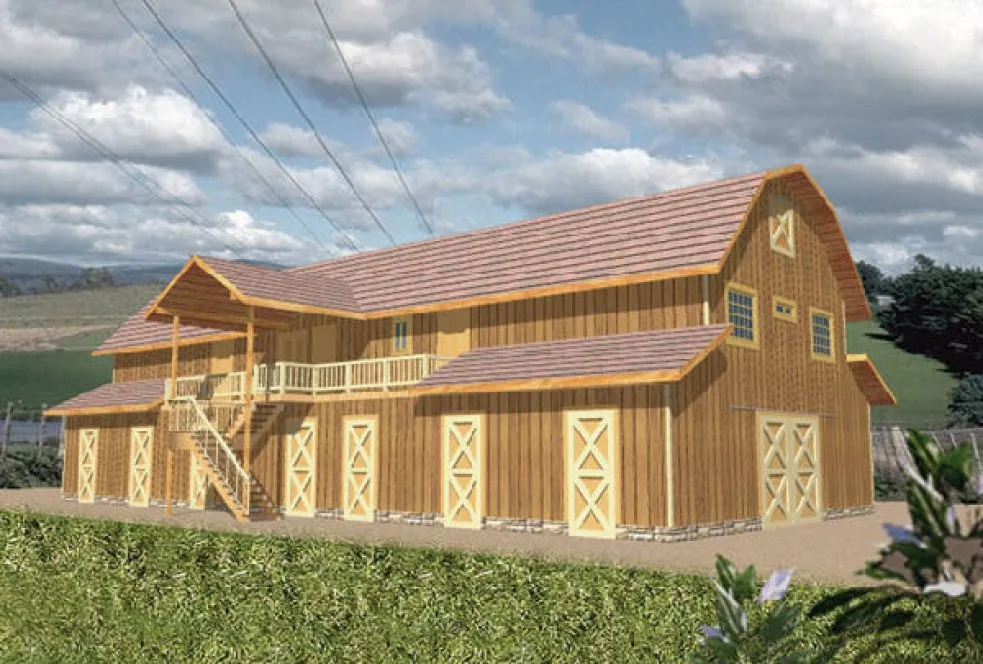

Full Rendering – westhomeplanners.com

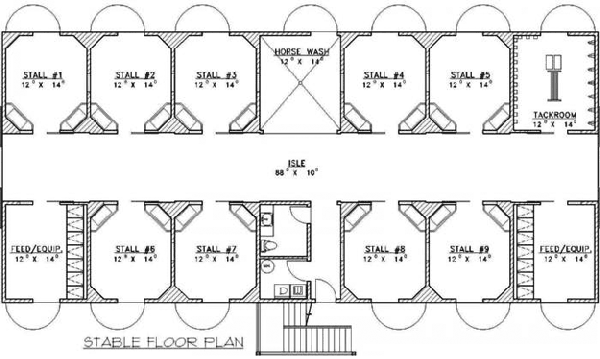

MAIN Plan – westhomeplanners.com

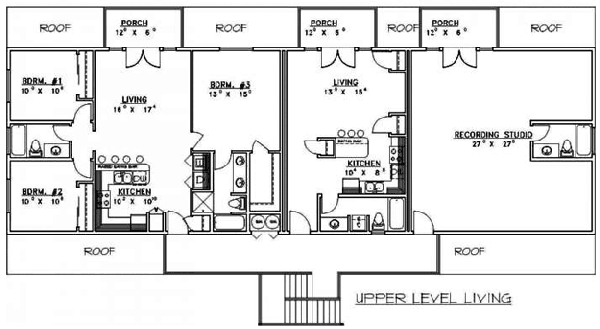

SECOND Plan – westhomeplanners.com

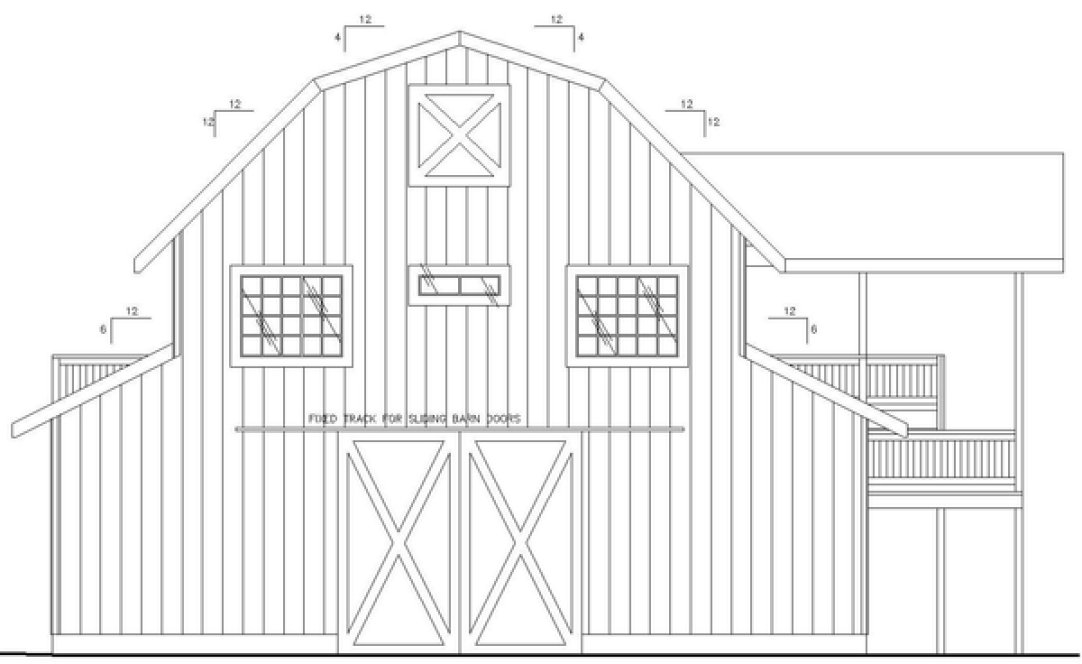

LEFT Elevation – westhomeplanners.com

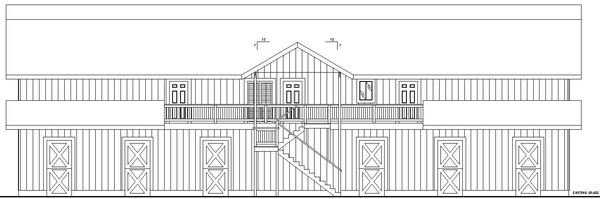

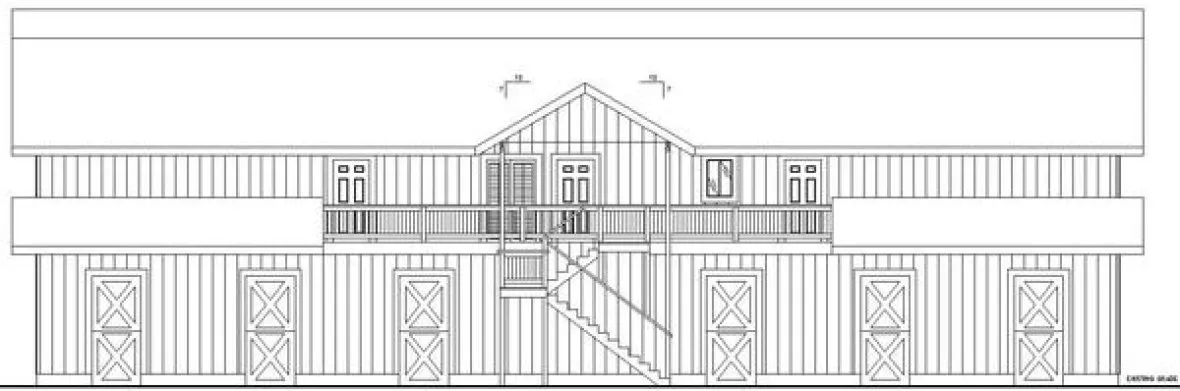

FRONT Elevation – westhomeplanners.com
