Plan No.481023

Grand Old Home

The tree-lined streets of older towns are filled with grand old homes that are unlike any you see today. The exterior fa├žade was borrowed from one of those homes and fitted to a well-suited floor plan for today's lifestyles. All of the main rooms, the stairwell and the porches are accessible off of the grand center hall. In keeping with the times, all of the lower level rooms have 10' ceilings. The intimate library and wet bar off the family room is positioned to make it easy to grab a book and a drink on the way to the front porch swing.

Specifications

Total 3292 sq ft

  • Main: 1892
  • Second: 1400
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 528

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 10'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 11'4

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 70'0
  • Depth: 90'0

Roof

  • Max Ridge Height: 34'0
  • Comments: ()
  • Primary Pitch: /12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

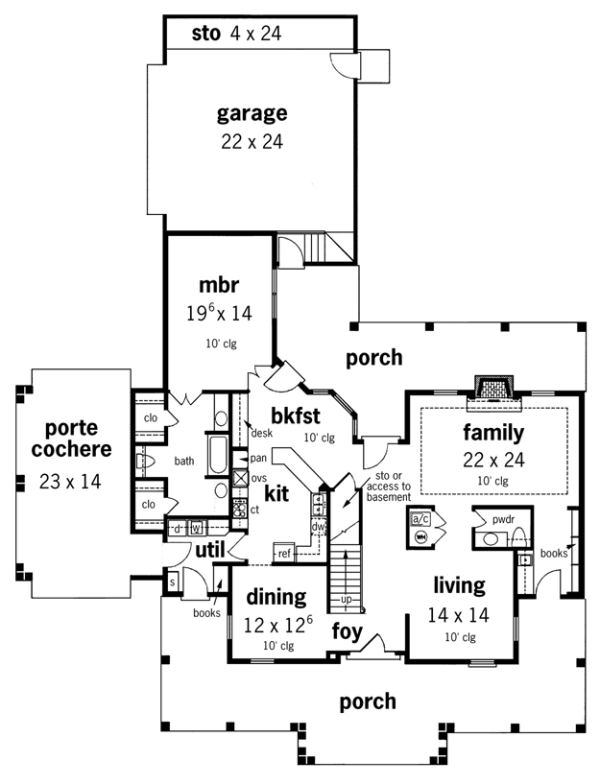

MAIN Plan – westhomeplanners.com

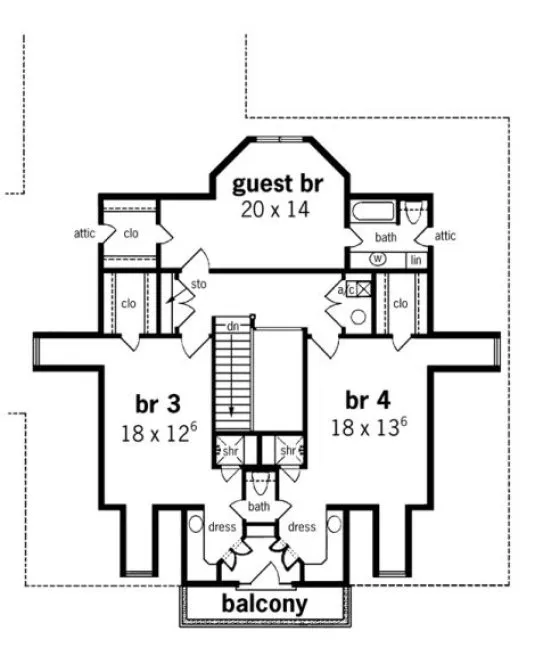

SECOND Plan – westhomeplanners.com
