Plan No.347002

Garage with Loft Studio

This Craftsman garage plan can park two cars. Both garage doors are 9' wide and 8' tall. On the second floor there is an art studio with a full bathroom. Main floor area includes 556 sq. ft. of unfinished garage area and 237 sq. ft. of finished living space. (793 sq. ft. total)

Specifications

Total 1421 sq ft

  • Main: 793
  • Second: 628
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 556

Rooms

  • Beds:
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'0

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 26'0
  • Depth: 32'0

Roof

  • Max Ridge Height: 24'6
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

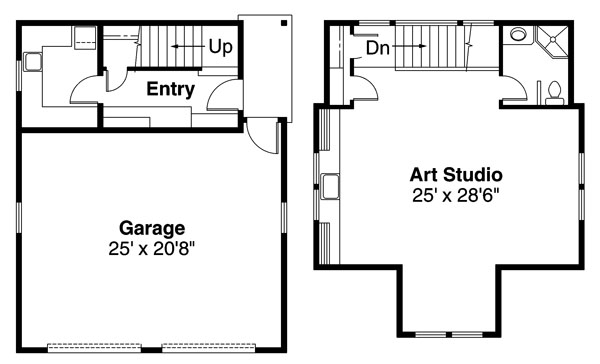

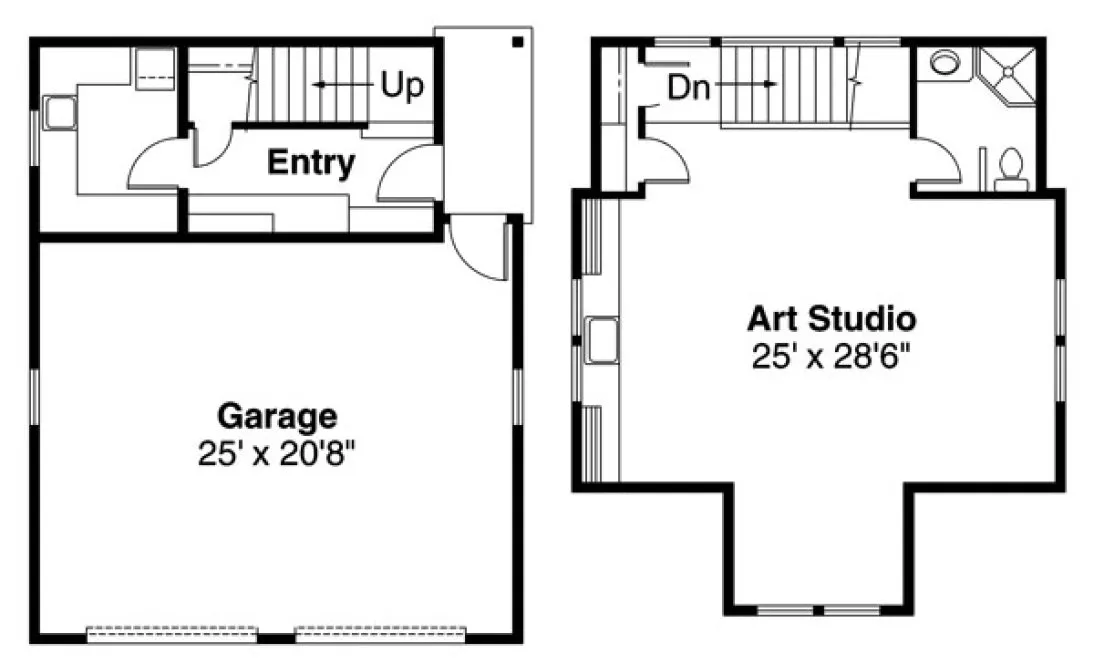

Main & Second Plan – westhomeplanners.com

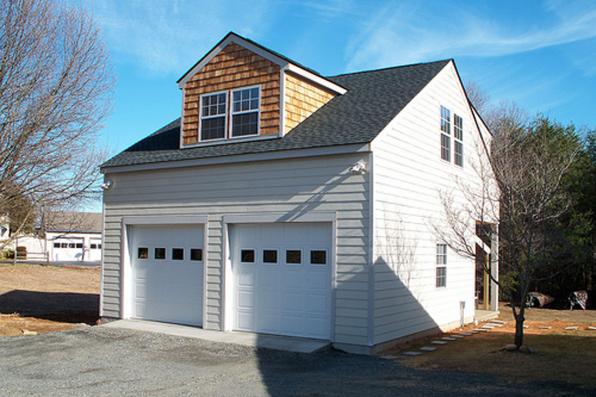

Front Photo – westhomeplanners.com

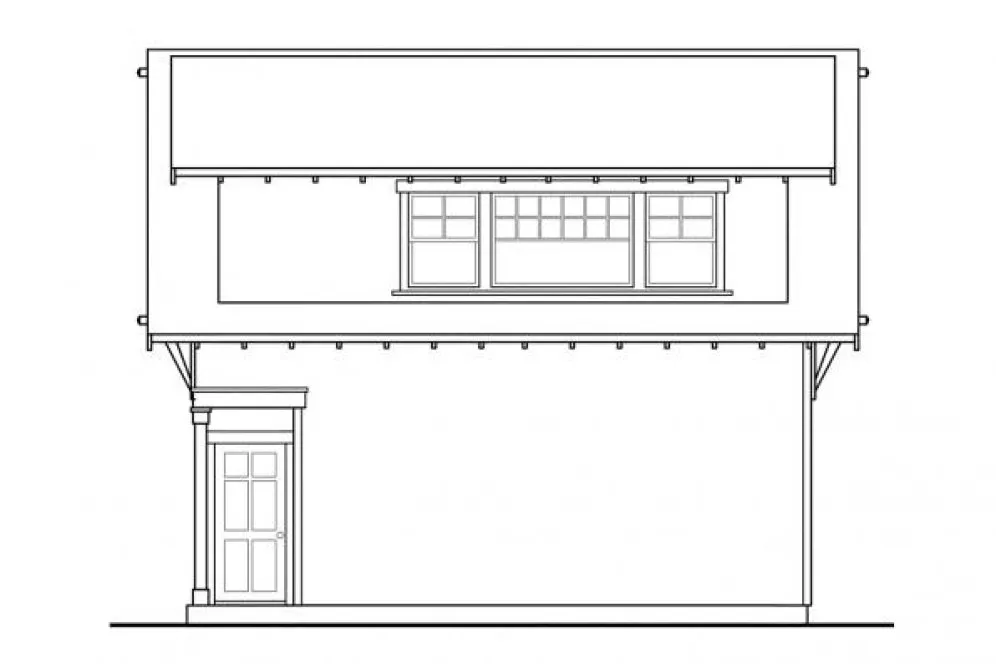

REAR Elevation – westhomeplanners.com

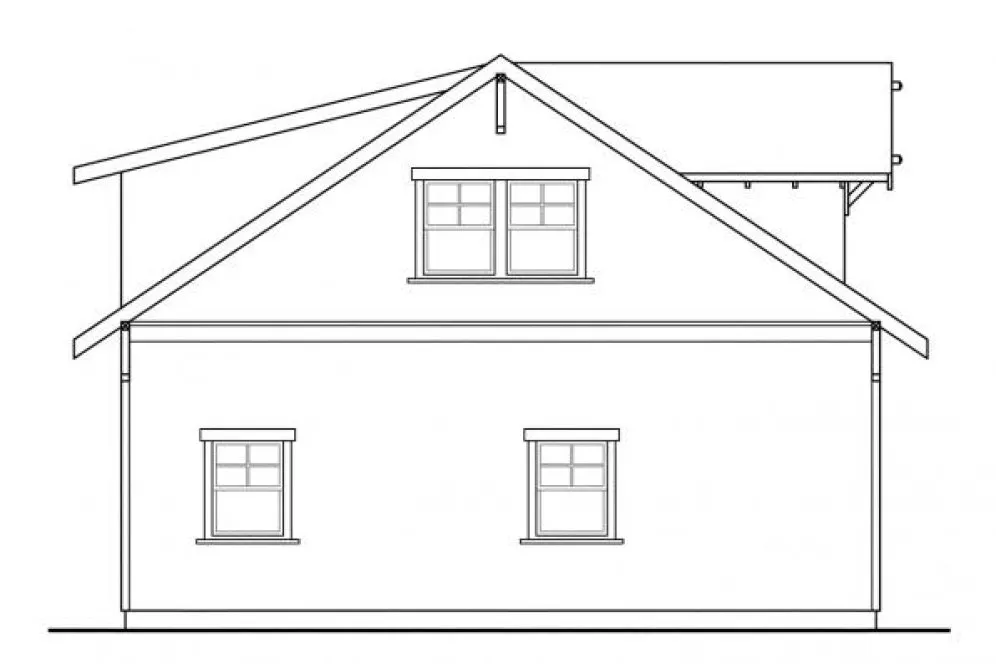

LEFT Elevation – westhomeplanners.com

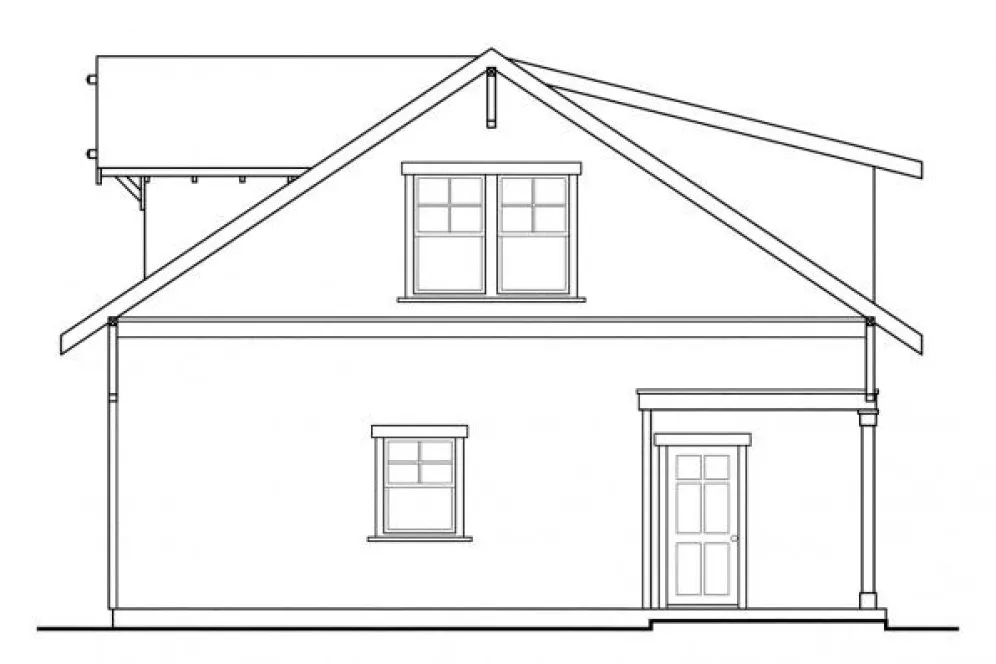

RIGHT Elevation – westhomeplanners.com
