Plan No.342053

Multi-faceted Home

This shingle-style home is a fascinating, multi-level, multi-family plan in which a covered breezeway links two totally separate dwellings. The larger home offers nearly 3,000 square feet of living space, over an unfinished basement. The smaller vaulted studio is 575 square feet in size. It would be ideal as private, but close, housing for a family member or close friend, and would also make a great music or art studio. Tapered stone veneer bases support graceful wooden columns that sit beneath porch gables, and more stone adds its rustic ambiance elsewhere. Craftsman-style windows, in a gently arched design, can be enjoyed from all four sides. Entering the main house, you pass through a vaulted, covered porch into a vaulted foyer that slopes up from the right and left. Vaulted ceilings expand the sense of spaciousness in the living room and dining room as well. Twin sets of windows flank the fireplace on the far left, and more light washes in through windows front and back. A unique, built-in buffet marks the dining room/kitchen boundary, while two more islands in the roomy kitchen offer counter and storage space. One has a conversation bar and prep sink; the other has a standard sink and dishwasher. A gas fireplace fills an alcove in one wall. Utilities are nearby, as is a hobby room with built-in desk, ideal for sewing, a computer, or whatever suits. Two roomy walk-in closets provide plenty of storage in the owners' suite. Other amenities include: dual vanity, round soaking tub, walk-in shower and private toilet. Upstairs, the loft and both bedrooms are vaulted.

Specifications

Total 2863 sq ft

  • Main: 2254
  • Second: 609
  • Third:
  • Loft/Bonus:
  • Basement: 1124
  • Garage: 880

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 10'4

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 80'0
  • Depth: 54'10

Roof

  • Max Ridge Height: 33'6
  • Comments: ()
  • Primary Pitch: 5.00/12
  • Secondary Pitch: /12

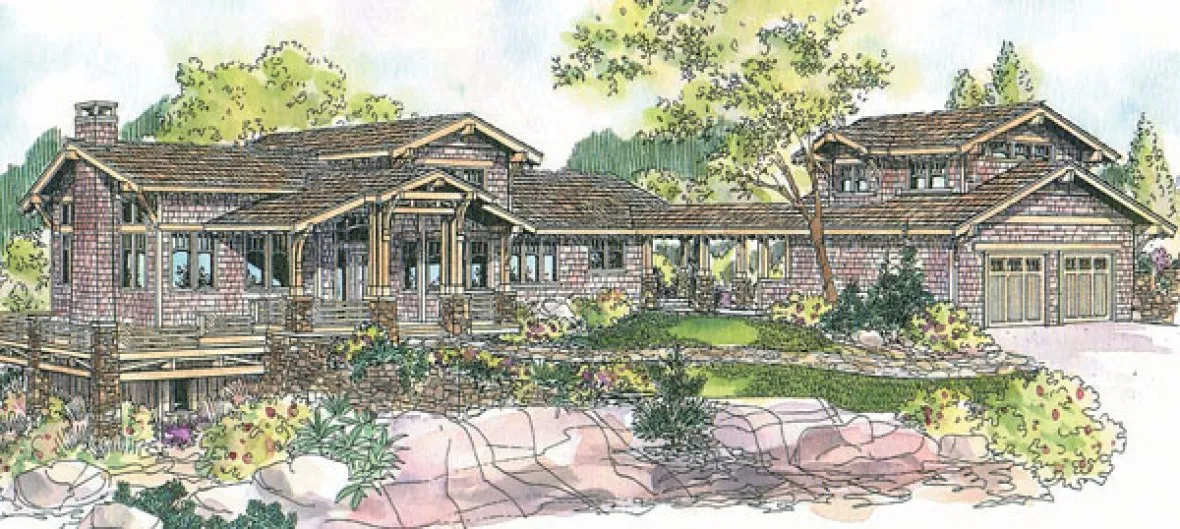

Full Rendering – westhomeplanners.com

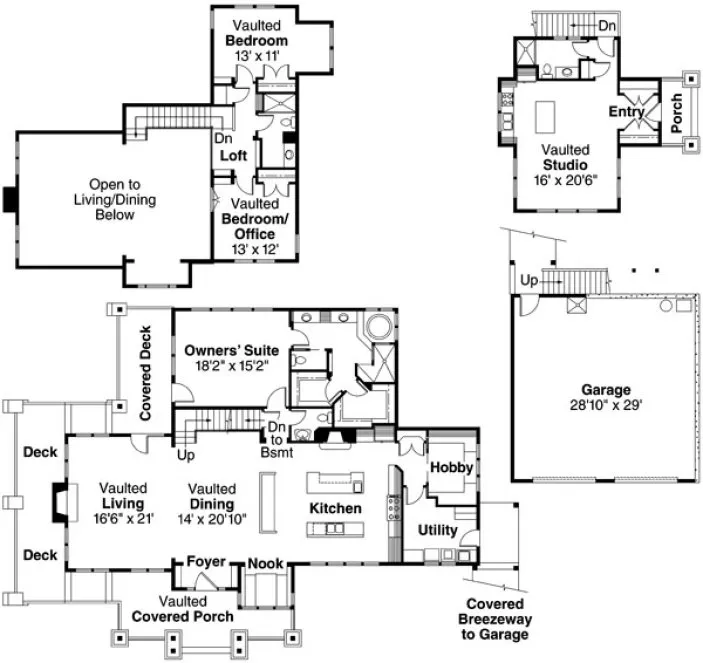

Main & Second Plans – westhomeplanners.com

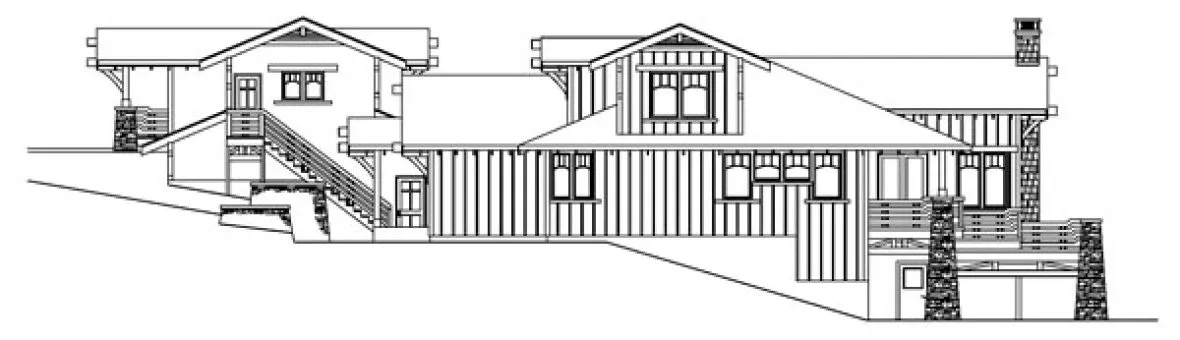

REAR Elevation – westhomeplanners.com

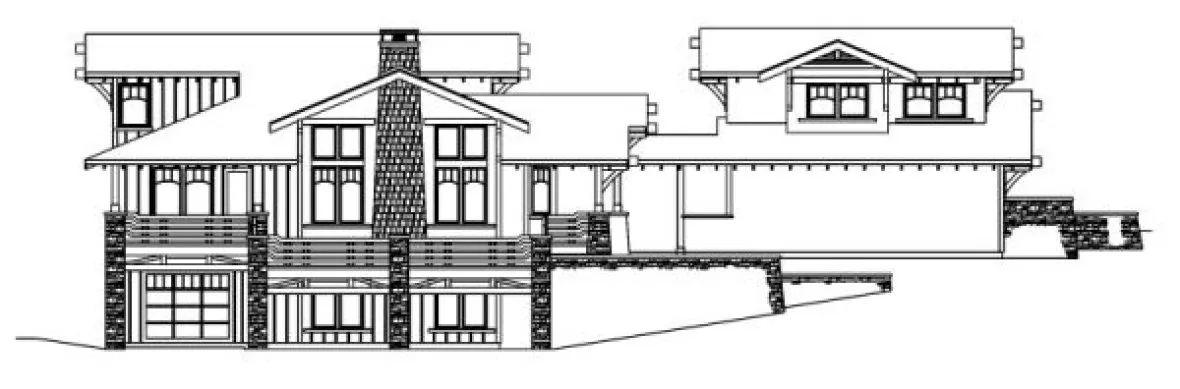

LEFT Elevation – westhomeplanners.com

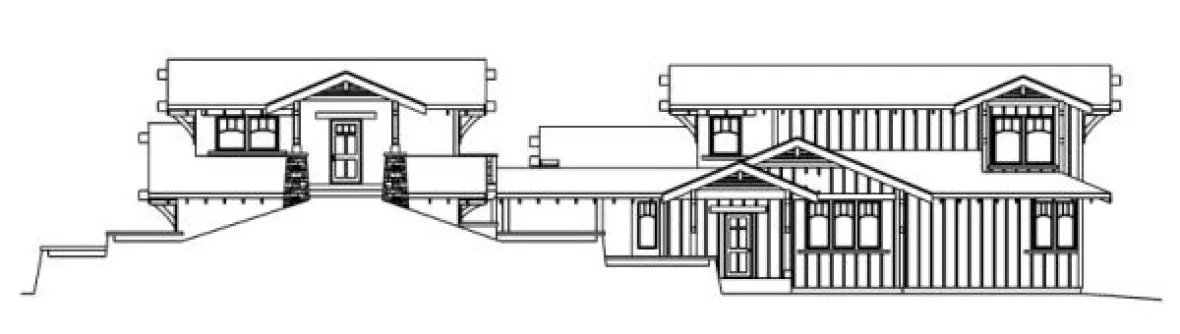

RIGHT Elevation – westhomeplanners.com
