Plan No.345006

Contemporary Duplex with a European Flavor

Arched garage door openings, brick veneer, and multipaned windows lend a European look to this plan, a contemporary duplex with a traditional flavor. Each two-bedroom unit offers nearly 1,100 sq. feet of living space in a mirror-image floor plan. Entering, you step into a vaulted living room that's completely open to a flat-ceilinged dining room at the rear. The rectangular window bay that brightens and expands the space toward the street could be outfitted with a window seat, left as is, or filled with potted plants. Light washes into the rear of the living/dining room through wide sliding glass doors. These windows also offer access to a patio that could be covered and screened, if desired. Either way, the occupants have a good-sized area for barbecuing and sharing outdoor meals, all within just a few steps of the kitchen. Counters and cabinetry run along two walls of the kitchen, and people working at the sink have a bird's eye view of the rear yard. Children playing there can be viewed from inside. Full-size laundry appliances fit neatly into an alcove on the opposite side of the room. Shelves or cabinets fill the wall space above. A convenient powder room hides behind a pocket door on one side of the laundry alcove, while a door to the garage is on the other. Each of the units has two bedrooms, a linen closet, and a full bathroom upstairs. From the loft/landing at the top of the stairs, you can overlook the living room. A full bathroom provides sound buffering between the bedrooms.

Specifications

Total 1086 sq ft

  • Main: 587
  • Second: 499
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 275

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0"
  • Second: 8'0"
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 10'4"

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 65'0"
  • Depth: 31'0"

Roof

  • Max Ridge Height: 23'0"
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

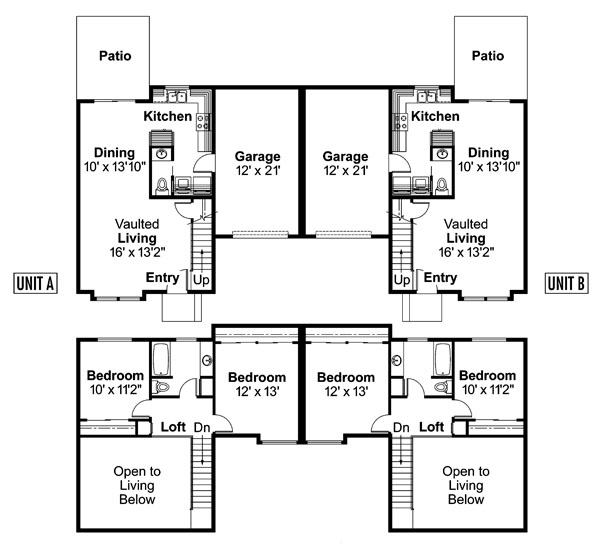

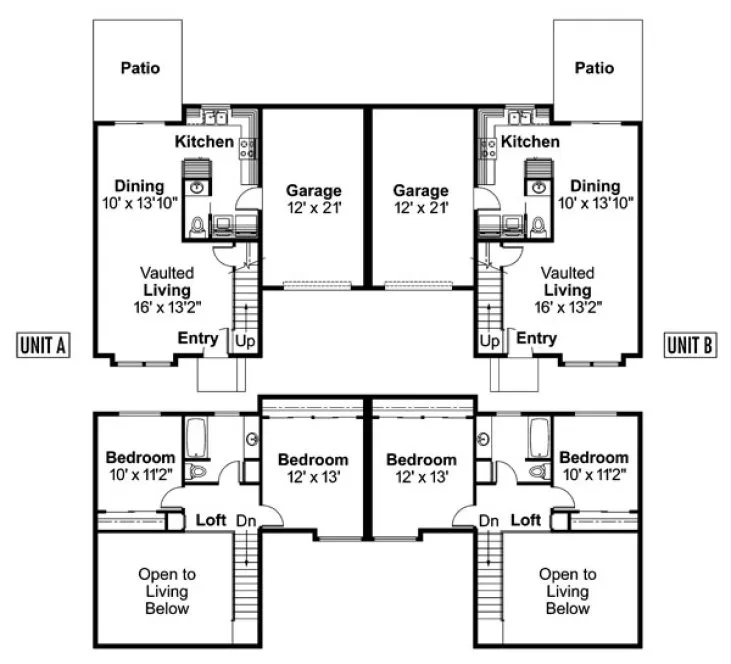

Main & Second Plan – westhomeplanners.com

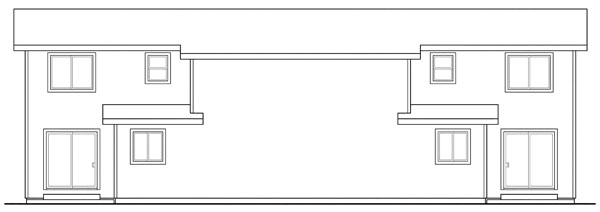

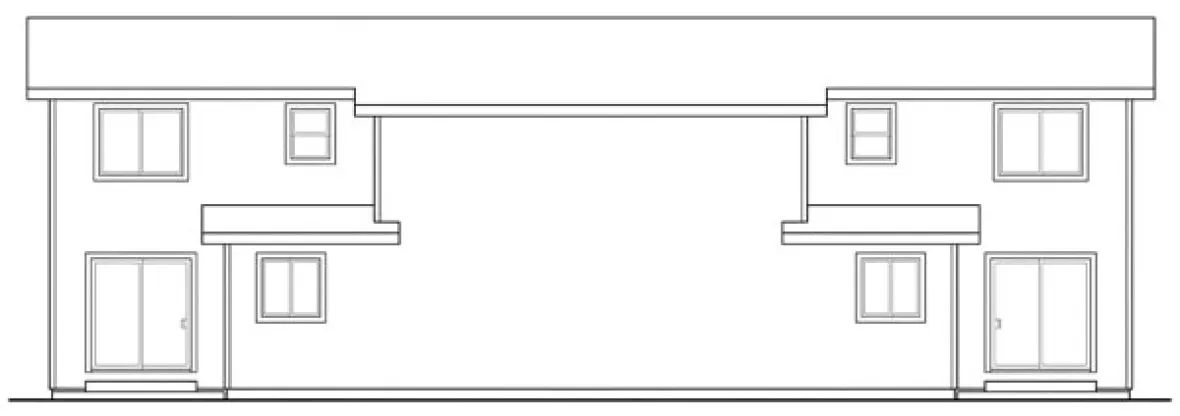

REAR Elevation – westhomeplanners.com
