Plan No.195158

Narrow yet Attractive Duplex

This duplex plan fits nicely onto a narrow lot and the attractive character gives it a unique charm. The upstairs unit features three bedrooms, the master bedroom having an en suite and walk-in closet. The lower unit has two bedrooms with a private bathroom, as well a powder room for company. The large covered deck and patio at the rear of the duplex gives each unit their own private outdoor entertaining area.

Specifications

Total 1078 sq ft

  • Main: 1062
  • Second: 1078
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 20'0
  • Depth: 70'0

Roof

  • Max Ridge Height: 26'8
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12

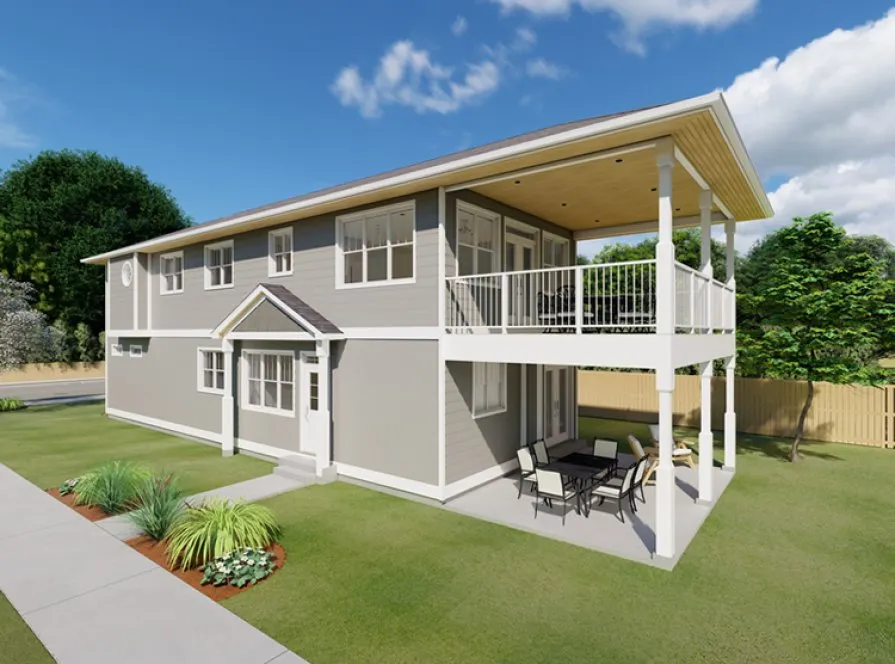

Full Rendering – westhomeplanners.com

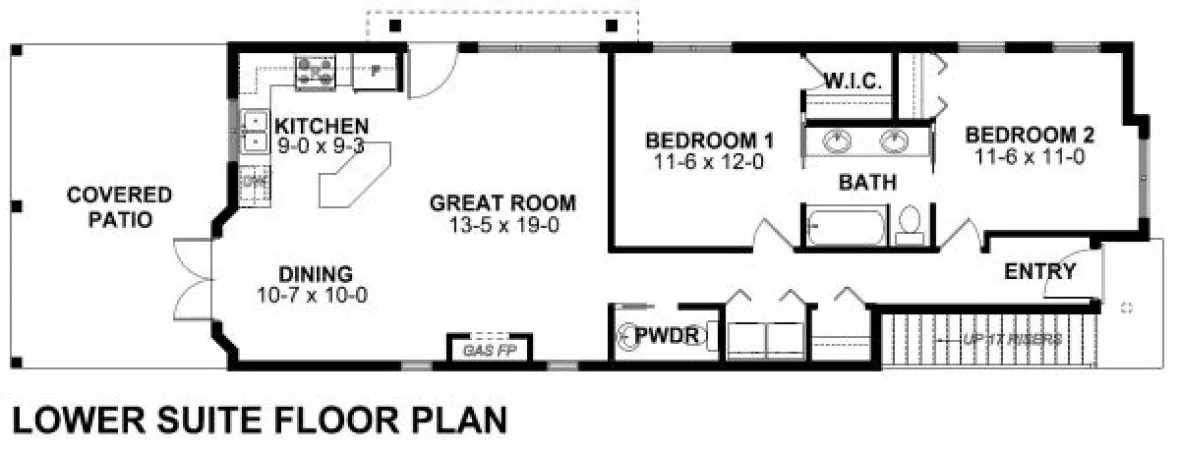

MAIN Plan – westhomeplanners.com

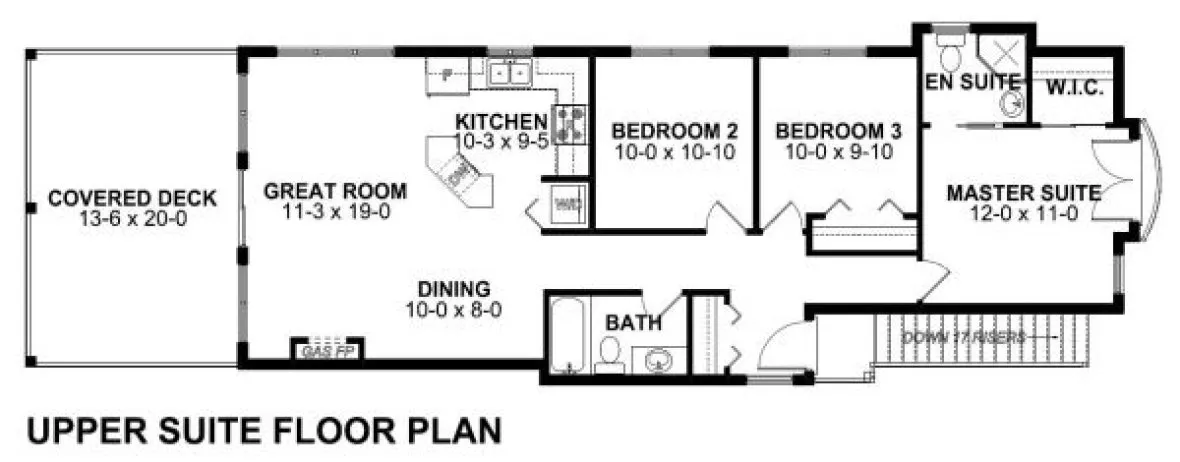

SECOND Plan – westhomeplanners.com
 – westhomeplanners.com

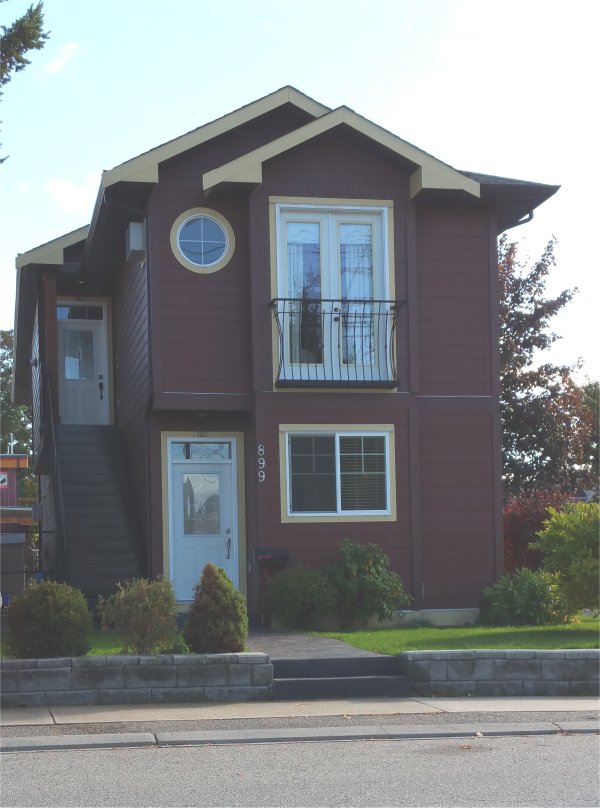

Front Photo – westhomeplanners.com
 – westhomeplanners.com
 – westhomeplanners.com

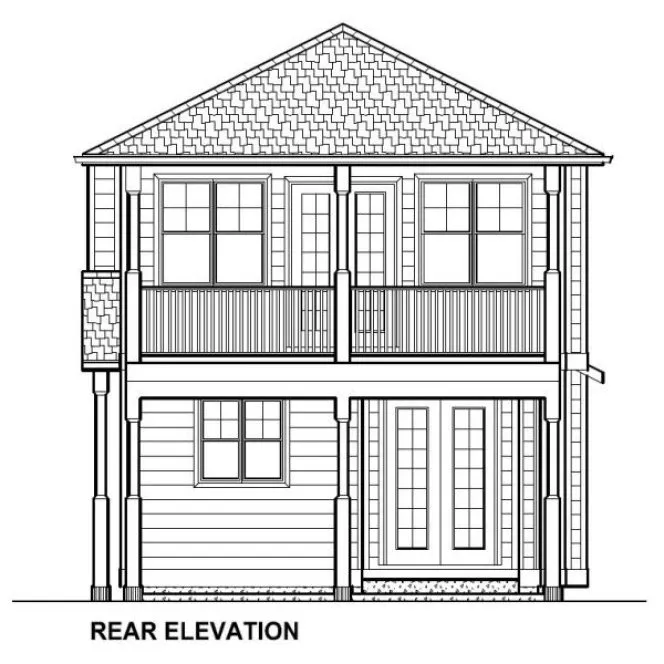

REAR Elevation – westhomeplanners.com

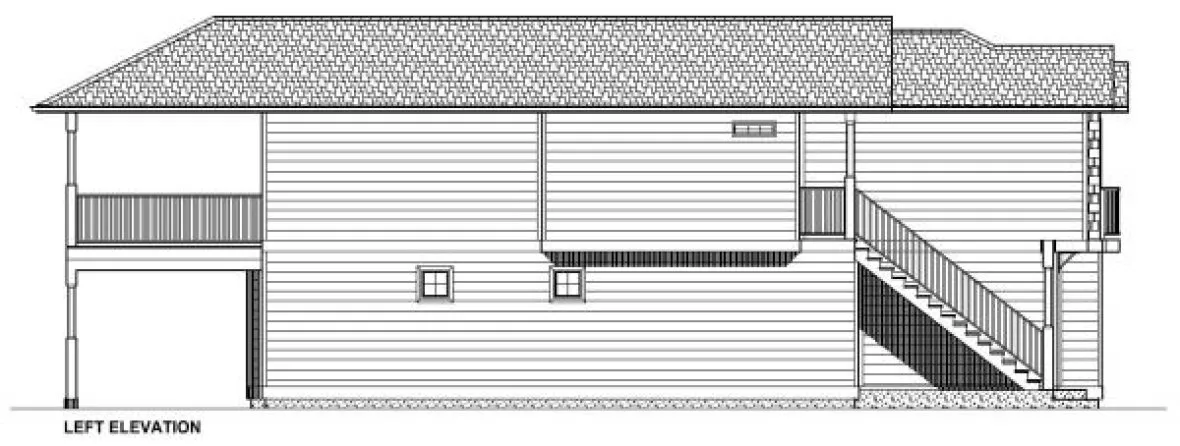

LEFT Elevation – westhomeplanners.com

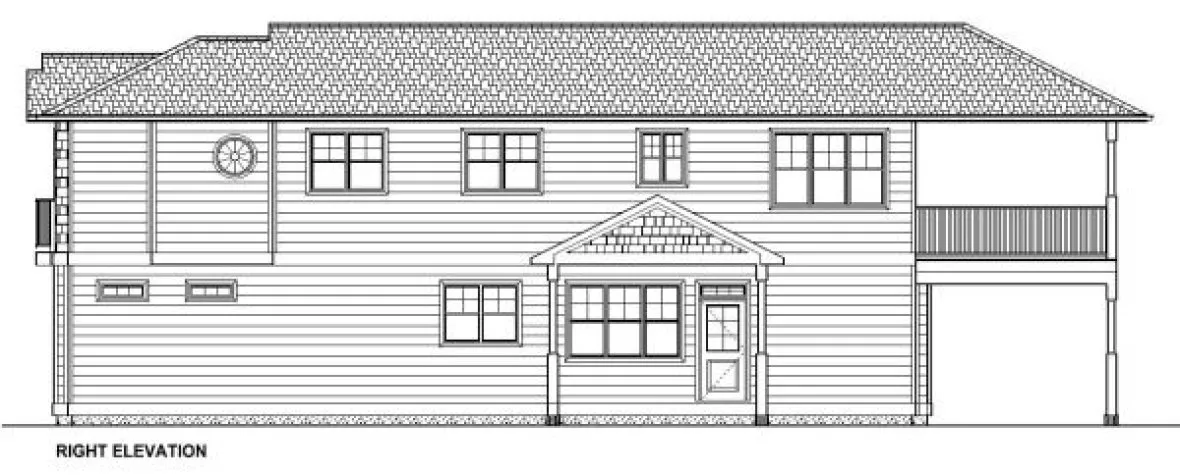

RIGHT Elevation – westhomeplanners.com
