Plan No.321108

Narrow Retreat

For an in-fill lot, a lake site or seaside retreat, this plan offers three floors of living and a very narrow footprint to make it conform to your needs. A high-pitched roofline accommodates an enchanting dormer window. A covered porch screens the setback entry. The lower floor at garage level holds a bedroom with full bath and laundry alcove. Built-ins include a desk and drawers along one wall. Outdoor access leads to convenient storage for lawn equipment and other essentials. The main level upstairs holds a vaulted living room with built-in media center and L-shaped booth seating for dining, an island kitchen with double-door pantry and display shelves, and the master suite. Look for built-ins and a private bath in the master suite. An outdoor deck lies just beyond the living area. A cozy vaulted study loft on the loft floor is graced by a huge built-in bookshelf.

Specifications

Total 1430 sq ft

  • Main: 436
  • Second: 792
  • Third:
  • Loft/Bonus: 202
  • Basement:
  • Garage: 238

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 9'0
  • Third:
  • Loft/Bonus: 8'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 17'0
  • Depth: 68'0

Roof

  • Max Ridge Height: 31'4
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

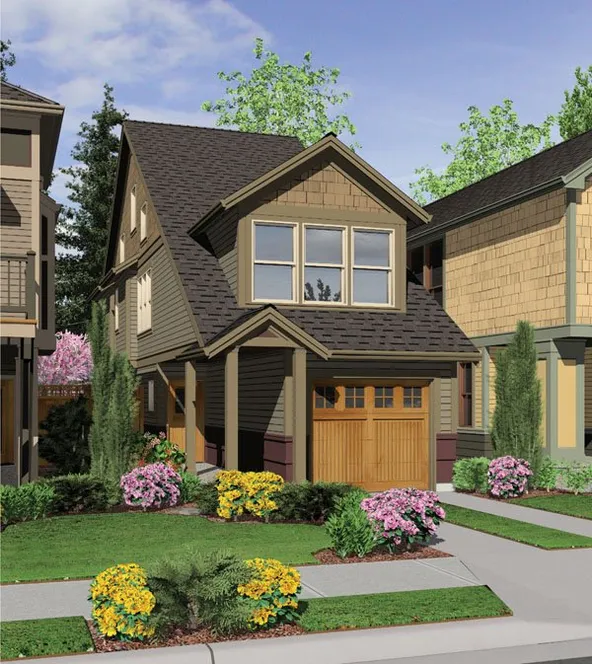

Full Rendering – westhomeplanners.com

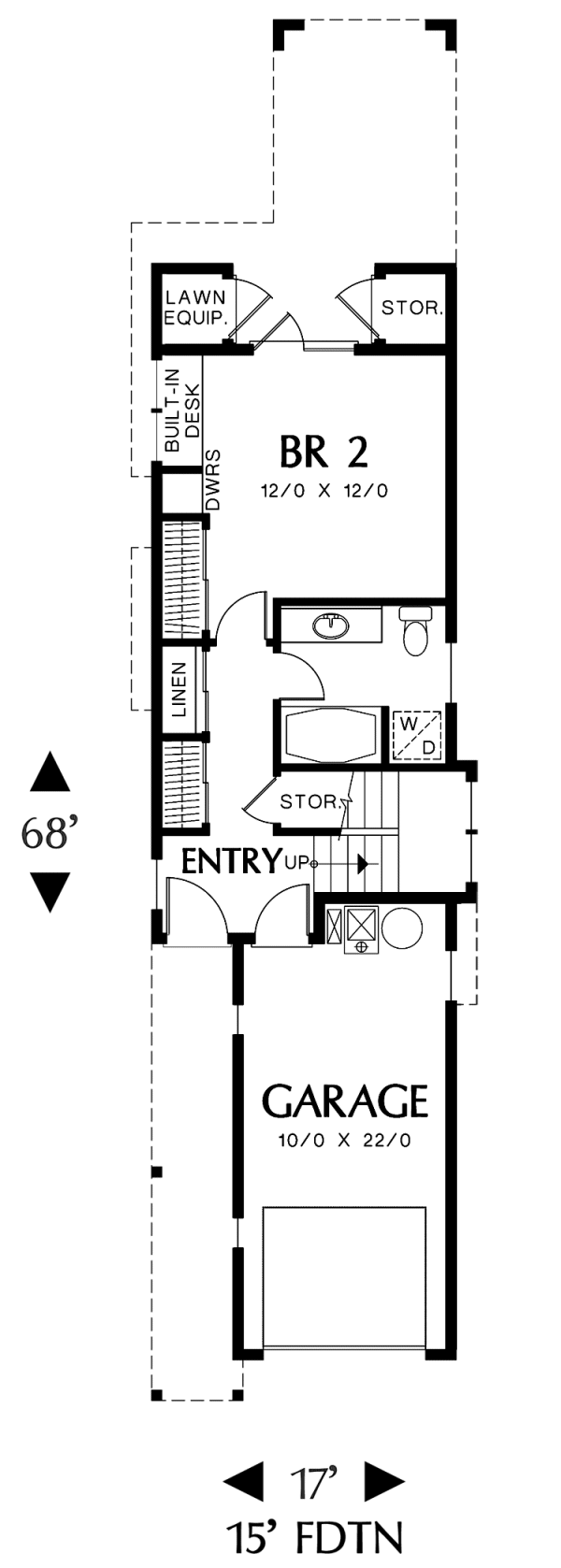

MAIN Plan – westhomeplanners.com

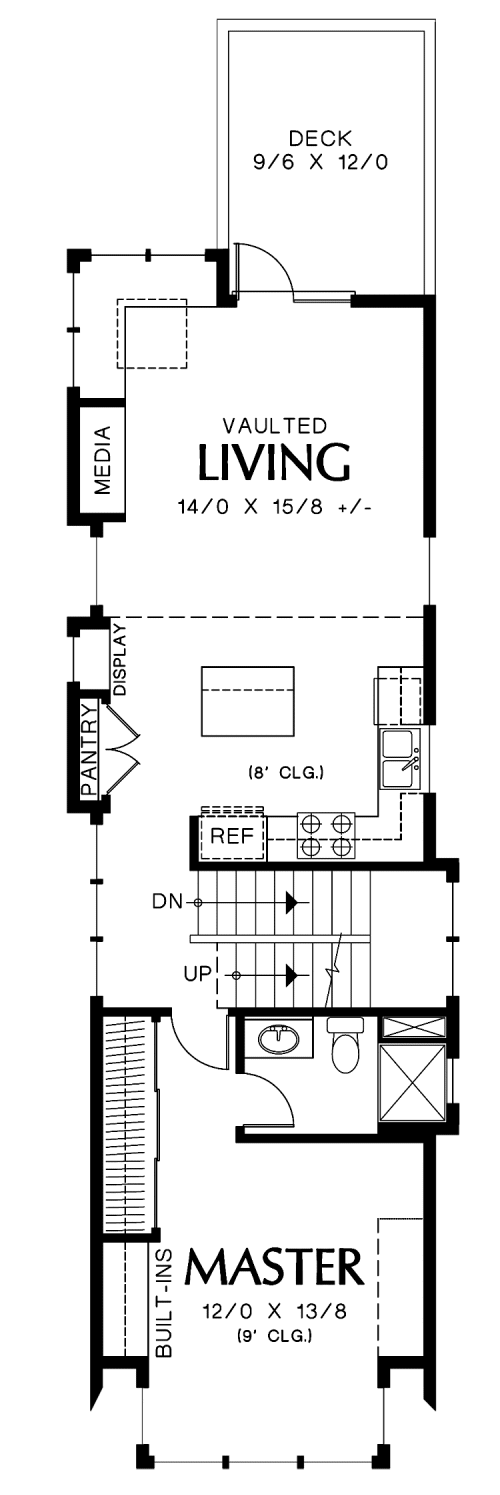

SECOND Plan – westhomeplanners.com

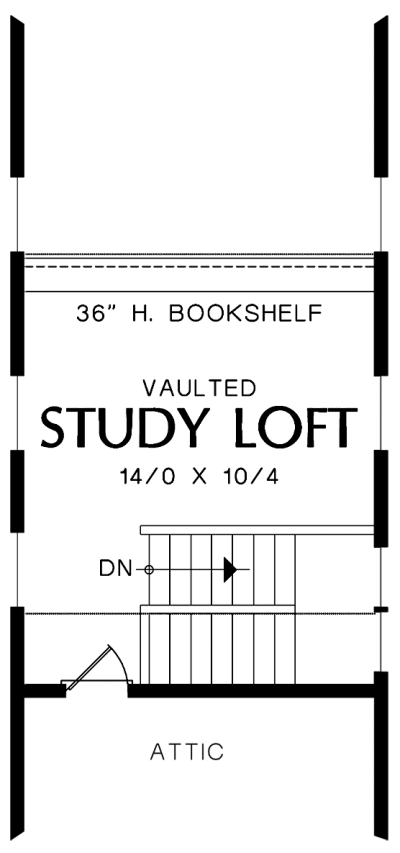

ATTIC Plan – westhomeplanners.com

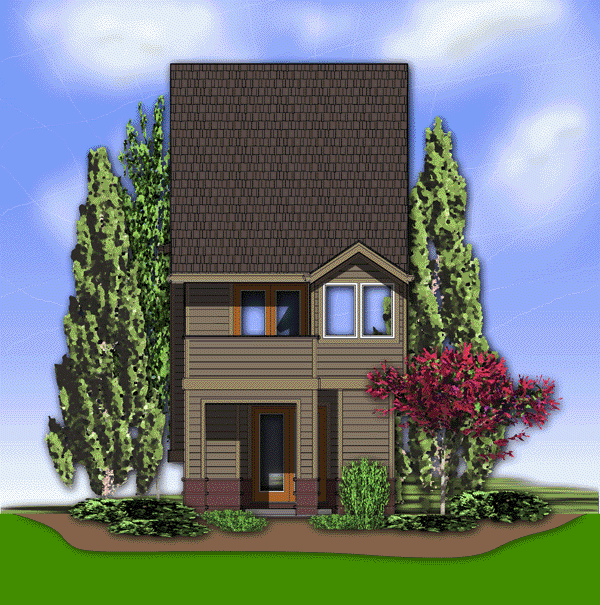

REAR Elevation – westhomeplanners.com
