Plan No.326105

Double Duty

Doing double duty beautifully, this three-car garage offers space for a two-bedroom apartment on its upper level. The exterior is reminiscent of the architecture of the Arts and Crafts movement and features sturdy columns on stone bases, lap siding and cedar shingles. Stairs in the garage lead up to a thoughtfully arranged guest suite with two bedrooms and a large living/dining area. Both bedrooms have roomy closets and wide windows along one wall. Double doors in the living area open to a charming railed deck. An L-shaped kitchen offers a full complement of appliances. The full bath has access at either end and is near a large linen closet. ADDITIONAL NOTES: Unlimited Build License issued on CAD File orders. Total Living Area may increase with Basement Foundation option. Regarding PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Specifications

Total 1987 sq ft

  • Main: 1079
  • Second: 908
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 1079

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 8'0

Details

  • Exterior Walls: 2x6
  • Garage Type: 3 Car Garage
  • Width: 41'0
  • Depth: 32'0

Roof

  • Max Ridge Height: 26'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

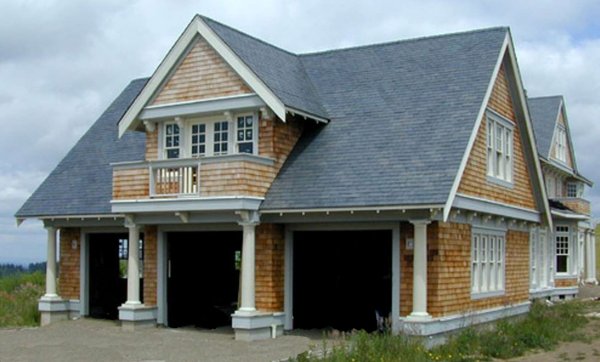

Full Rendering – westhomeplanners.com

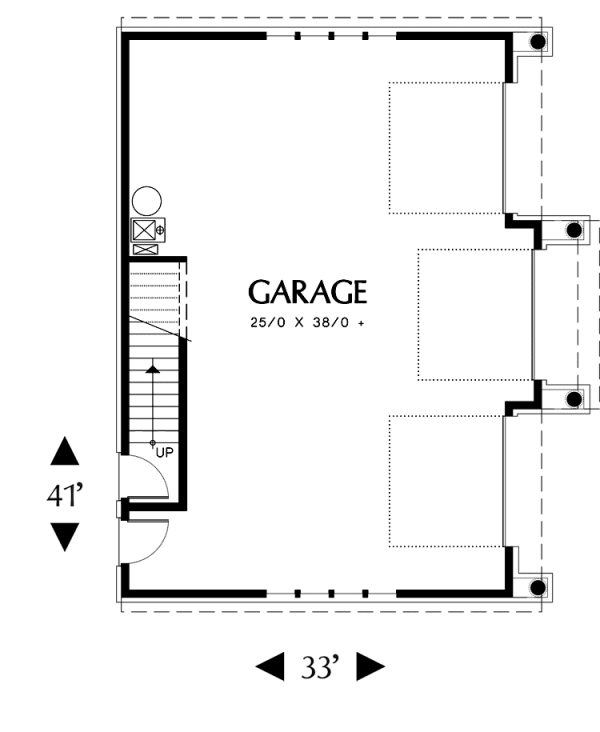

MAIN Plan – westhomeplanners.com
SECOND Plan – westhomeplanners.com
 – westhomeplanners.com
 – westhomeplanners.com
 – westhomeplanners.com

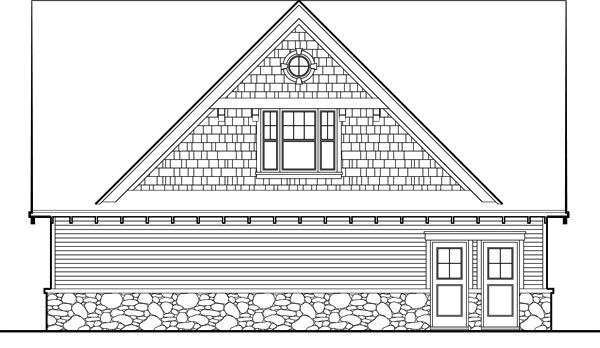

REAR Elevation – westhomeplanners.com
