Plan No.322164

Schoolhouse Charm

With schoolhouse-like charm, this quaint two-story plan easily will nestle into a neighborhood of narrow homes. In addition, it will accommodate a home site that rises in the back, such as those built into a hillside. The facade's traditional elements, solid porch balustrades, awnings, and gable roofline, are given a modern edge when combined with horizontal siding and geometric windows. These elements make the home an apt candidate for a development of both traditional and contemporary homes. The interior of the home is as carefully detailed as the exterior. The front porch leads into a hall that feeds traffic into a large living room with a fireplace and built-in media center. The living room is open to the kitchen and dining room. Angled dining room patio doors slide open to connect with an outdoor patio. A curved edge on the kitchen island, rather than one that is squared off, promotes a visual connection with the living room and acts as a counterpoint to the angles of the dining room patio doors. A flight of stairs leads to a half bath before continuing up to a landing that connects to the garage and an under-the-stairs storage closet. From there, a U-shape staircase ascends to the second level, where it joins with the laundry room to divide the bedroom wings. The master suite fills one end of the upper level, contributing a fireplace, a deck, and a large walk-in closet. At the other end of the home is a study alcove with built-ins that can accommodate multiple children and computers. The secondary bedrooms share an adjacent bath.

Specifications

Total 2111 sq ft

  • Main: 863
  • Second: 1248
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 477

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 27'0
  • Depth: 69'6

Roof

  • Max Ridge Height: 31'8
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

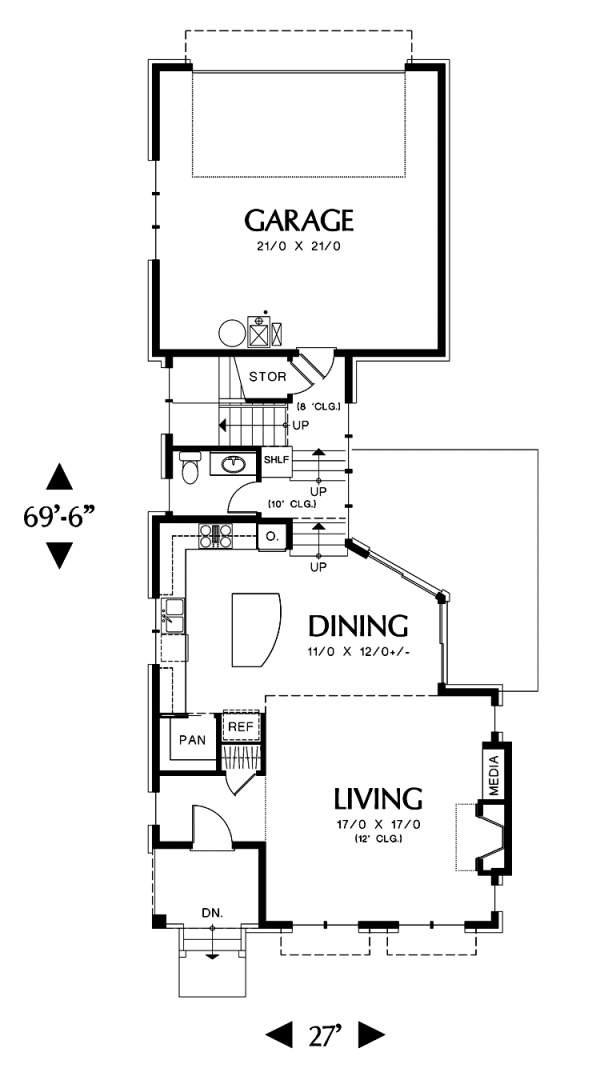

MAIN Plan – westhomeplanners.com

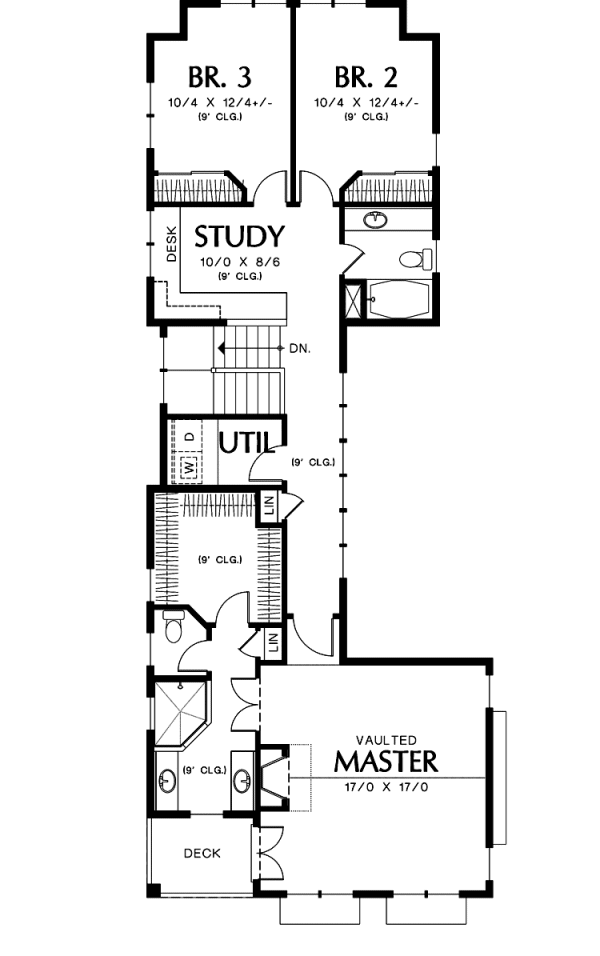

SECOND Plan – westhomeplanners.com

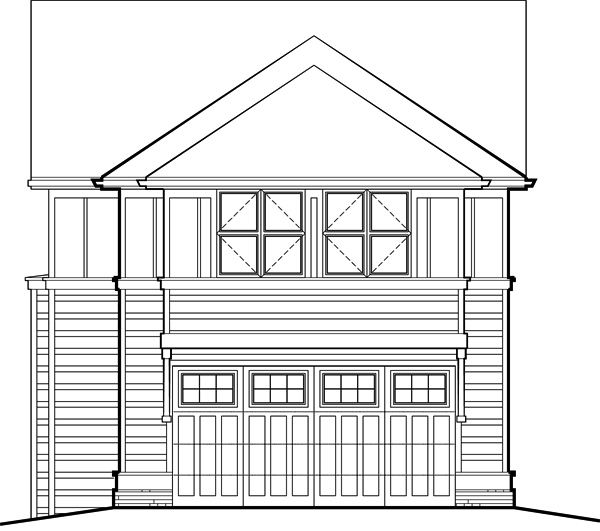

REAR Elevation – westhomeplanners.com
 – westhomeplanners.com
