Plan No.322115

Country Style

Retreat to the comfort of this country styled vacation home. A covered porch, spanning across the front, coupled with details like shingles and a stone chimney create an inviting exterior. The great room opens the space in the center of the home. Tall windows face the front, and a fireplace keeps the interior cozy. The kitchen features corner counter space, spacious cabinets and a window alcove to provide space for a table. A bedroom is also located on the main floor with windows to match those in the great room. The bathroom is across the hall for convenient access from all areas of the home. The second floor is a large loft area featuring more closet space and a built-in desk providing an area for the kids to bunk down. This cabin is designed for the snow loads found in mountains and clad in a pre-finished metal roof.

Specifications

Total 950 sq ft

  • Main: 738
  • Second: 212
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 1
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 32'0
  • Depth: 31'0

Roof

  • Max Ridge Height: 26'0
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

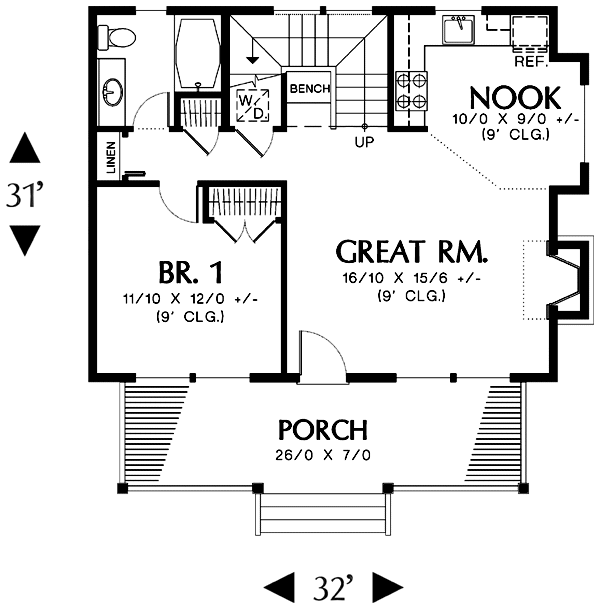

MAIN Plan – westhomeplanners.com

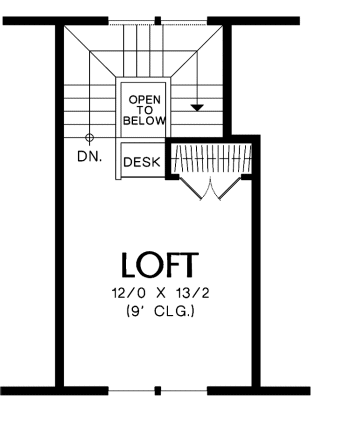

SECOND Plan – westhomeplanners.com

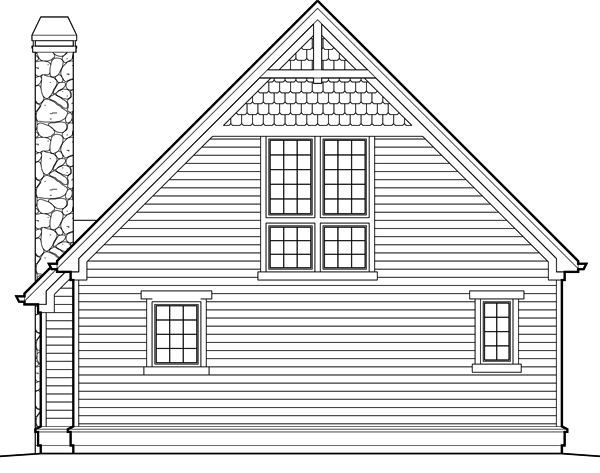

REAR Elevation – westhomeplanners.com
