Plan No.475700

Nostalgic Facade

This home's tasteful facade receives a nostalgic touch from a wraparound porch adorned with classic columns. Inside, a cozy fireplace anchors the living room, inviting you to relax. Nearby, the efficient kitchen enjoys a pass-through to the living room, while a handy pantry lies just around the corner. A second pantry lies near the entrance to the living room. The bright nook features a window seat nestled into a boxed-out window, making for cheerful breakfasts. For larger meals, head to the dining room, where French doors open to the wraparound porch. A skylighted hobby room is just the right place for cultural pursuits. It would also make a fine guest room, being located adjacent to a full hall bath. Upstairs, the upper-floor master bedroom includes three sunny windows and a walk-in closet, plus a private bath with all the amenities. Two additional bedrooms—one with a walk-in closet—share a full hall bath, rounding out the home.


Total 2077 sq ft

  • Main: 1124
  • Second: 953
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 433


  • Beds: 4
  • Baths: 3
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0"
  • Second: 8'0"
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'4"


  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 42'2"
  • Depth: 58'10"


  • Max Ridge Height: 30'0"
  • Comments: ()
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12

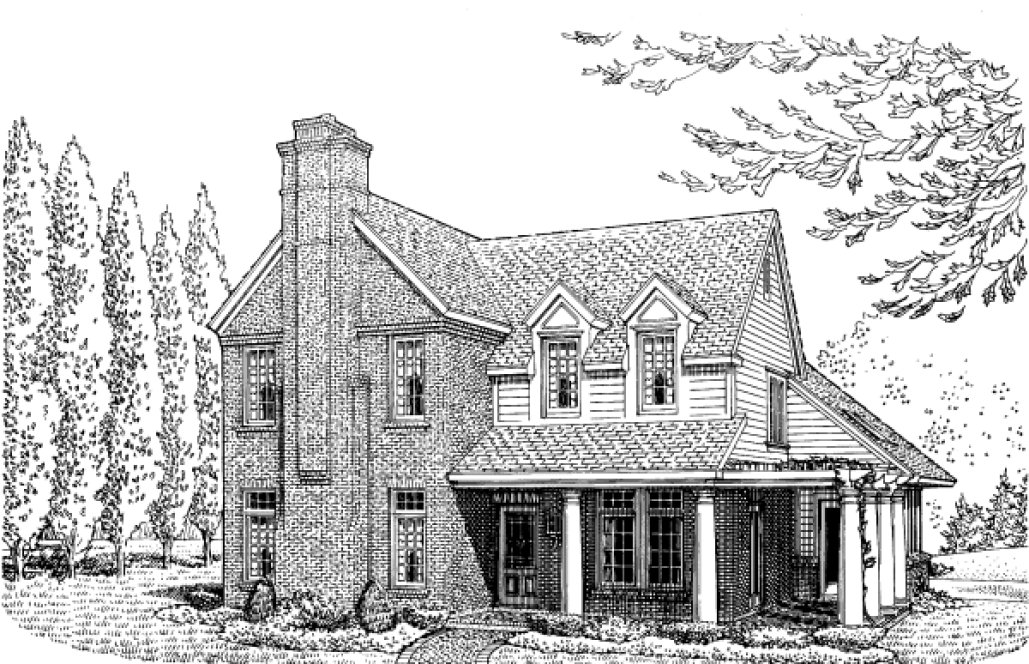

Full Rendering –

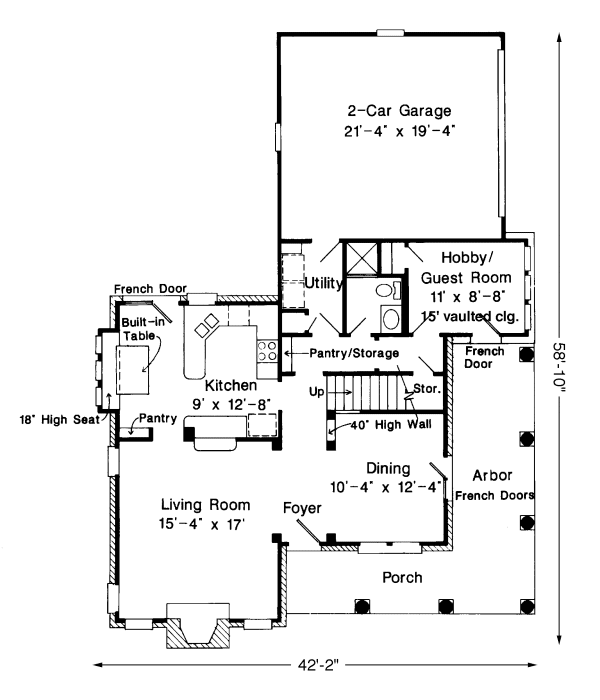

MAIN Plan –
