Plan No.471000
Detached Guest Quarters or In-Law Suite
This attractive home's adaptable spaces include a resource center, a quiet study and detached in-law or guest quarters with a full bath and walk-in closet. Living spaces that are open to each other define the floor plan. The living room boasts a fireplace and a built-in media center. Highlights of the master bedroom include a pleasant sitting area, two walk-in closets and a well-appointed bath. Please note that, upon completion, the future area would add 328 sq. ft. to the total finished area.
Specifications
Total 2381 sq ft
- Main: 2381
- Second:
- Third:
- Loft/Bonus: 328
- Basement:
- Garage: 448
Rooms
- Beds: 4
- Baths: 3
- 1/2 Bath:
- 3/4 Bath:
Ceiling Height
- Main: 9'0
- Second:
- Third:
- Loft/Bonus: 8'0
- Basement:
- Garage: 10'4
Details
- Exterior Walls: 2x4
- Garage Type: doubleGarage
- Width: 65'0
- Depth: 86'4
Roof
- Max Ridge Height: 25'0
- Comments: ()
- Primary Pitch: 8.00/12
- Secondary Pitch: /12
Buy Plan
Pricing Options
Full Rendering – westhomeplanners.com

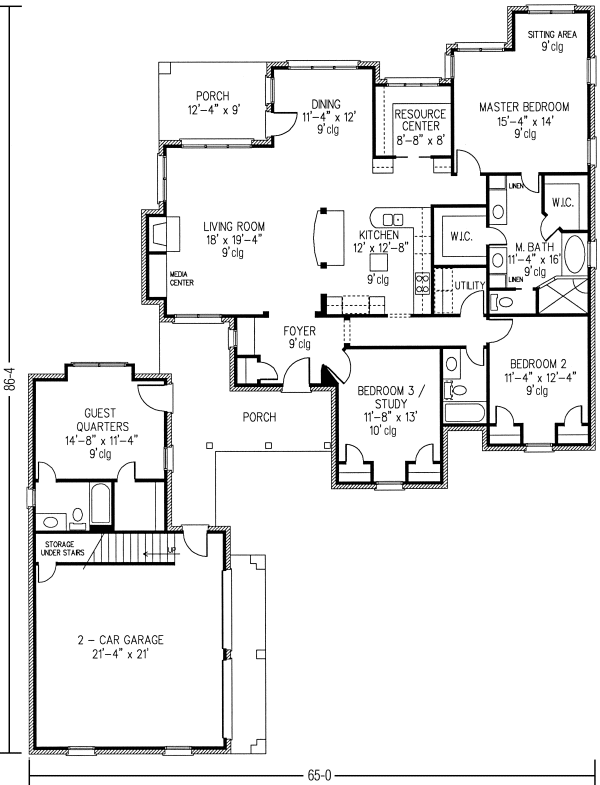

MAIN Plan – westhomeplanners.com

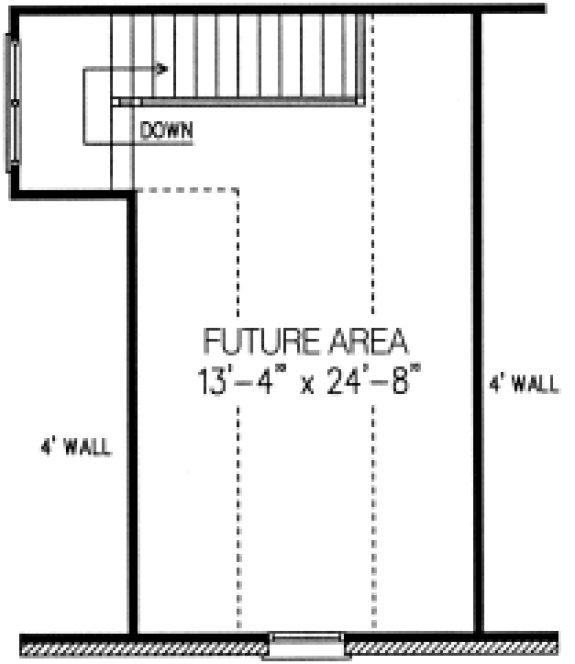

SECOND Plan – westhomeplanners.com

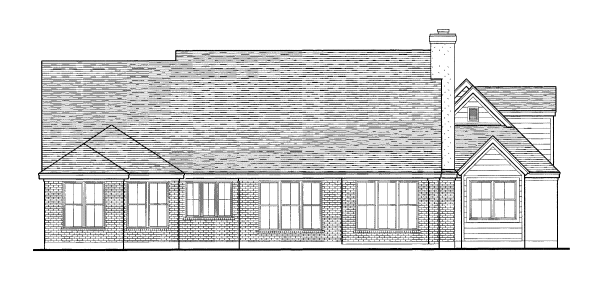

REAR Elevation – westhomeplanners.com
