Plan No.321511

Adorable and Surprising

This adorable little cottage is full of surprises, both inside and out. Begin with a covered front deck, a stone chimney stack and cedar shake shingle on the outside. Then look to the interior for a completely livable main level and a lower level with additional bedrooms. A vaulted great room is at the center of the main level. It is flanked by two decks and warmed by a fireplace. A kitchen and light-filled dining area are close by, as is a coat closet and the stairway to the lower level. At the front of the main level is a bedroom with a window seat in a box-bay window; a full bath is located nearby for convenience. The two lower-level bedrooms have ample closets (Bedroom 3 has an optional built-in) and share a full bath. The lower-level hall opens to a covered patio outside. Note the storage area under the stairwell.

Specifications

Total 1225 sq ft

  • Main: 735
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 490
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 30'0
  • Depth: 42'0

Roof

  • Max Ridge Height: 17'0
  • Comments: ()
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

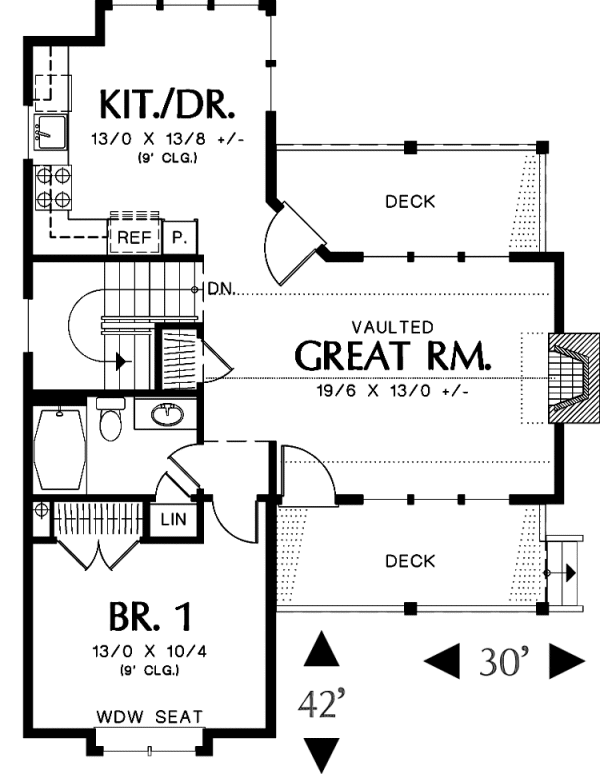

MAIN Plan – westhomeplanners.com

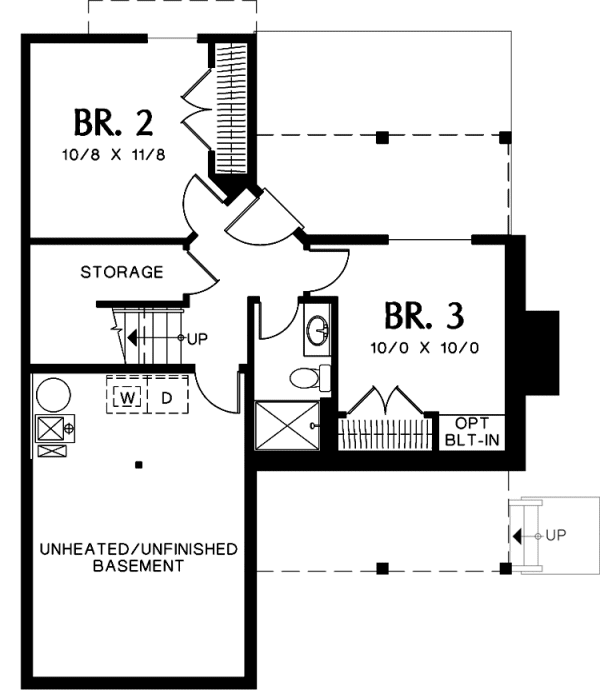

BASEMENT Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com
