Plan No.322404

Captivating Duplex

Large windows, beautifully shingled exteriors, attractive porticos and steeply pitched rooflines create depth and beauty along the facades of these captivating row houses. Compact enough for one, yet with enough space for an entire family, these flexible three bedroom homes come complete with unexpected built-ins (including benches, storage, media units, pantries and more). Layouts are supremely thoughtful: on the first levels, vaulted foyers lead into two, main level bedrooms. Upstairs: vaulted living, dining and kitchen areas give way to back decks and the vaulted master bedrooms, creating spaciousness and practicality within an attractively narrow framework. Unit A: Heated Space = Second Floor 974 Sq.Ft., Main Floor 688 Sq.Ft., Total Area 1662 Sq.Ft.. Amenities: Bedrooms 3, Full Baths 2, Half Baths 1, & Garage 427 Sq.Ft.. Unit B: Heated Space = Second Floor 987 Sq.Ft., Main Floor 688 Sq.Ft., Total Area 1675 Sq.Ft.. Amenities: Bedrooms 3, Full Baths 2, Half Baths 1, & Garage 447 Sq.Ft..

Specifications

Total 3340 sq ft

  • Main: 1379
  • Second: 1961
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 894

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 60'0
  • Depth: 45'0

Roof

  • Max Ridge Height: 32'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

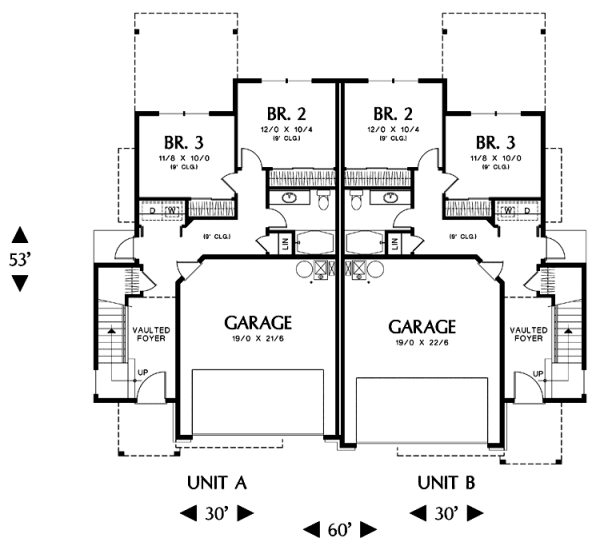

MAIN Plan – westhomeplanners.com

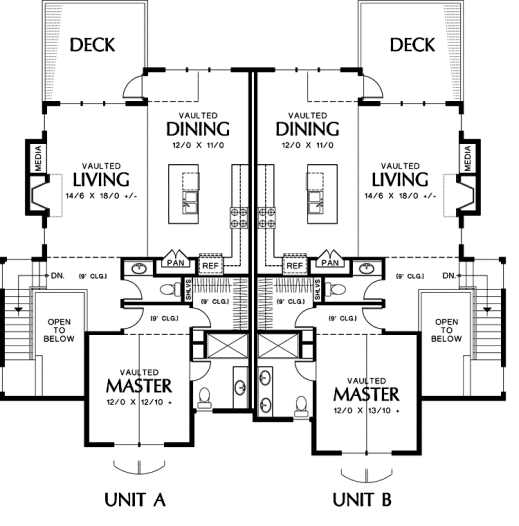

SECOND Plan – westhomeplanners.com

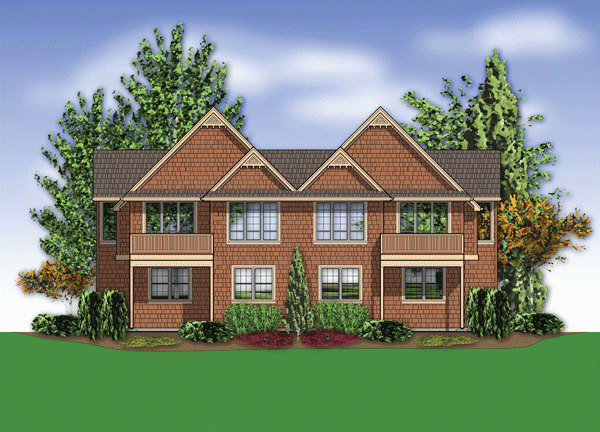

REAR Elevation – westhomeplanners.com
