Plan No.340741

A Bay Window

Designed to meet the complex needs of a modern family; great for entertaining. Spacious and bright family room is totally open to kitchen and bayed dining room. A bay window expands the living room; shelves or cabinets flank the fireplace

Specifications

Total 2689 sq ft

  • Main: 2226
  • Second: 463
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 664

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 2
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 65'0
  • Depth: 72'0

Roof

  • Max Ridge Height: 26'6
  • Comments: ()
  • Primary Pitch: 9.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

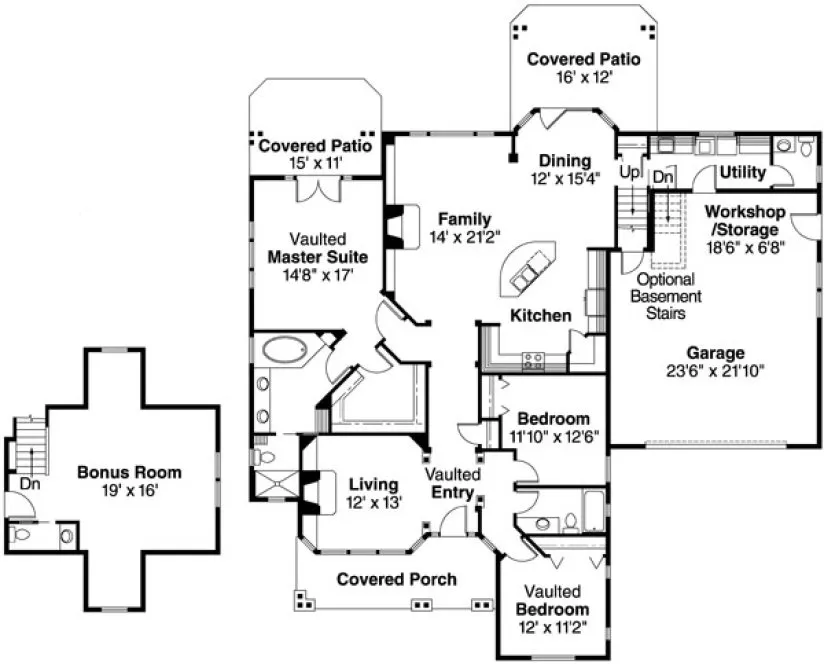

First&Second Floor – westhomeplanners.com

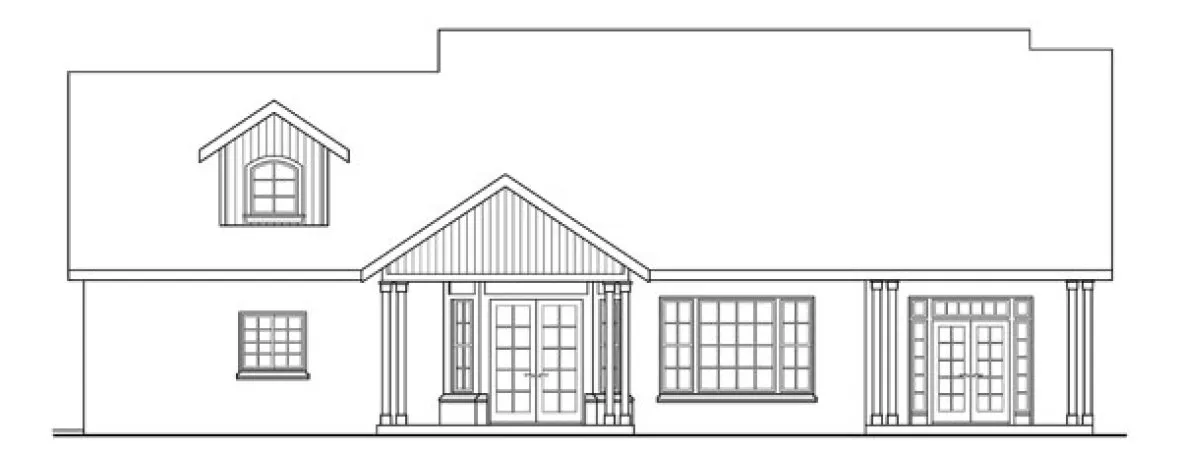

REAR Elevation – westhomeplanners.com
