Plan No.235221

Versatile Floor Plan

A full-length covered front porch is a welcoming feature to this country farm house. This versatile floor plan offers the potential for two master suites; one upstairs and one on the main floor. The country kitchen is complete with a peninsula cook top and eating bar. Upstairs is shown with a bonus room or an optional second master suite for extended family living.

Specifications

Total 1986 sq ft

  • Main: 1130
  • Second: 856
  • Third:
  • Loft/Bonus:
  • Basement: 1130
  • Garage: 564

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 62'0
  • Depth: 38'0

Roof

  • Max Ridge Height: 26'4
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12.00/12
  • Secondary Pitch: 6.00/12
Full Rendering – westhomeplanners.com

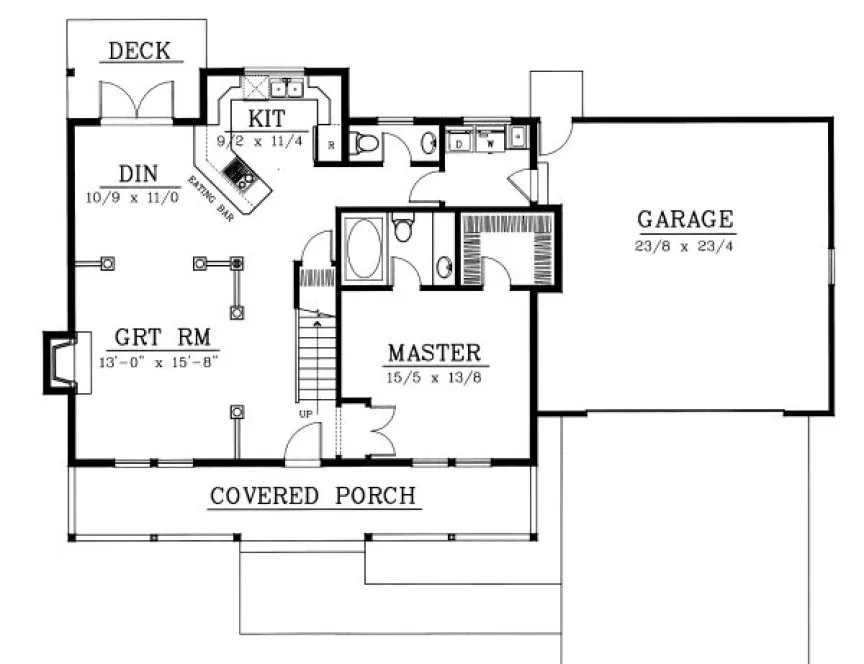

MAIN Plan – westhomeplanners.com

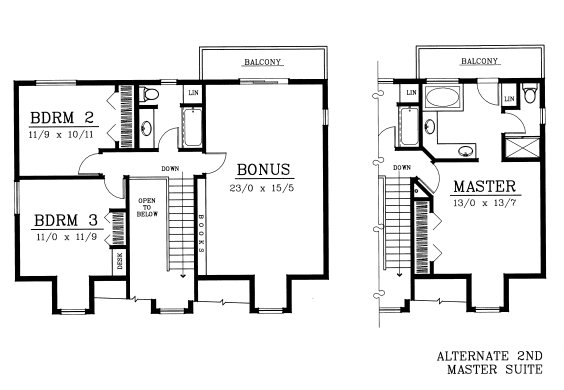

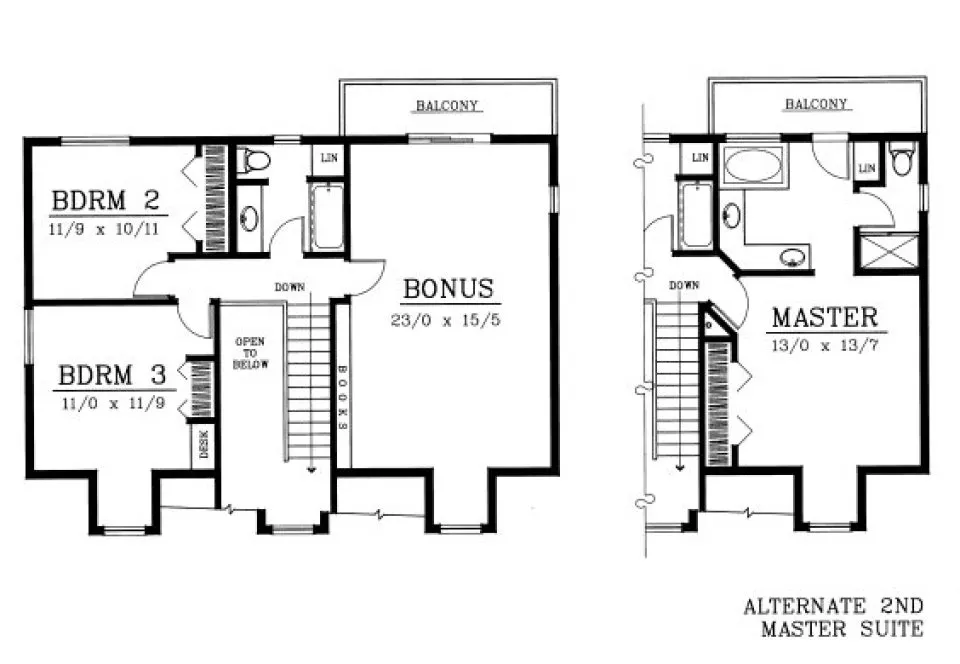

SECOND Plan – westhomeplanners.com

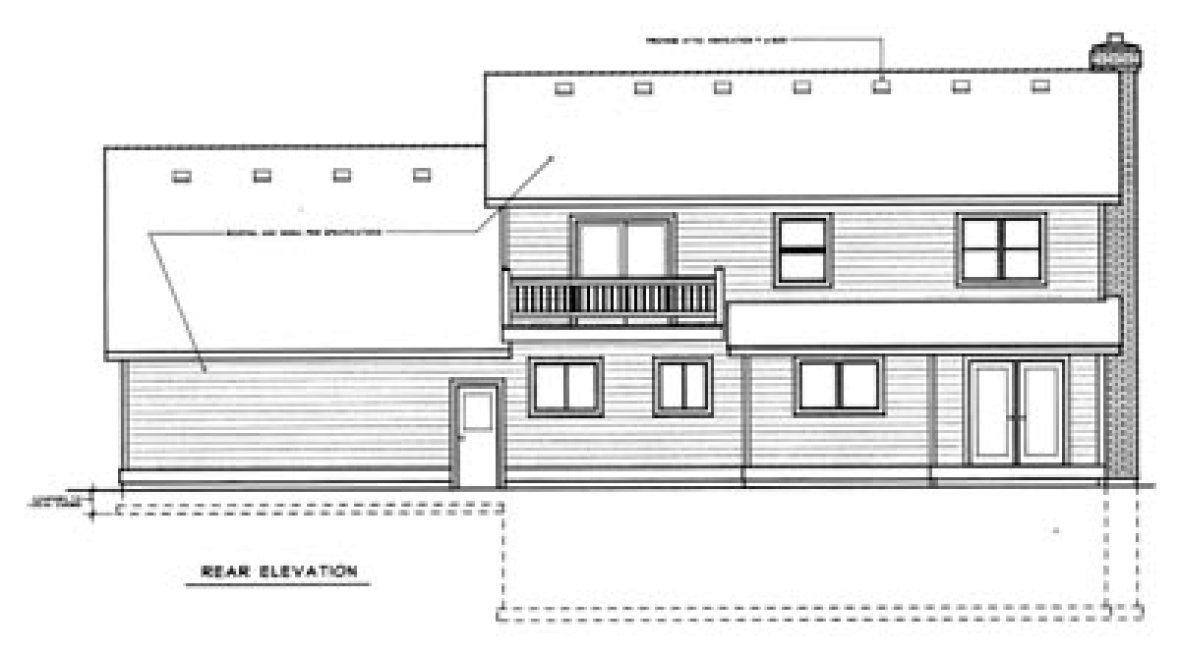

REAR Elevation – westhomeplanners.com
