Plan No.195148

Elegant Victorian Duplex

This gorgeous Victorian style duplex combines a classic look with a modern layout. The open living area, large bedrooms, master suite with walk in closet and en suite, make for a very livable home. The attractive turret on the front of the house, along with the covered porches and Victorian details gives it excellent road appeal. Floor Areas: Main Floor 1652 sq. ft. or 826 sq. ft. per unit, Second Floor 1646 sq. ft. or 823 sq. ft. per unit for a Total Finished Area of 1649 sq. ft. per unit. The Unfinished Basement is 1613 sq. ft. or 806 sq. ft. per unit.

Specifications

Total 1649 sq ft

  • Main: 826
  • Second: 823
  • Third:
  • Loft/Bonus:
  • Basement: 806
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 47'0
  • Depth: 46'6

Roof

  • Max Ridge Height: 28'3
  • Primary Pitch: 6.00/12
  • Secondary Pitch: 9.00/12

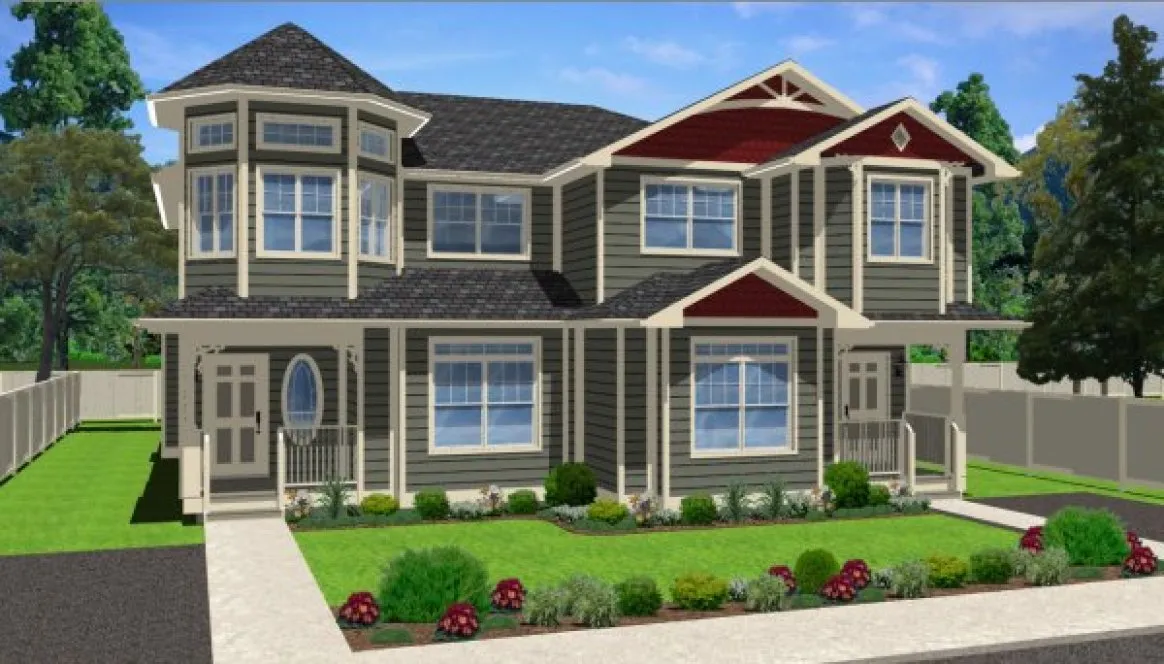

Full Rendering – westhomeplanners.com

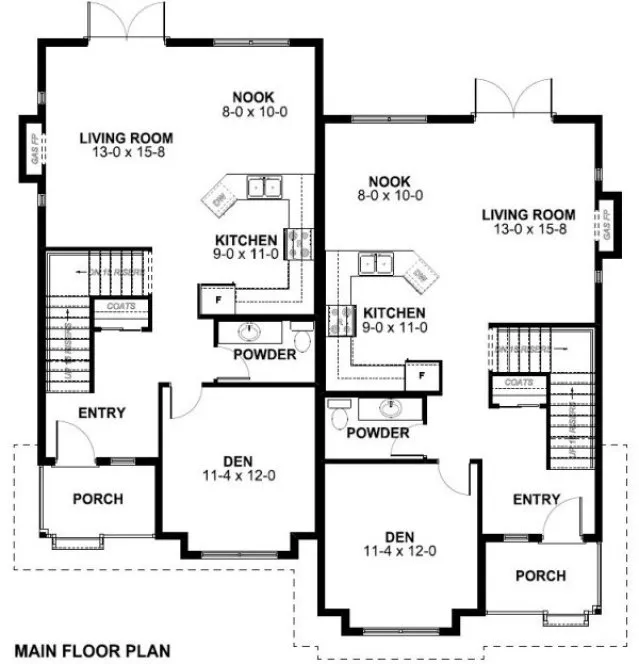

MAIN Plan – westhomeplanners.com

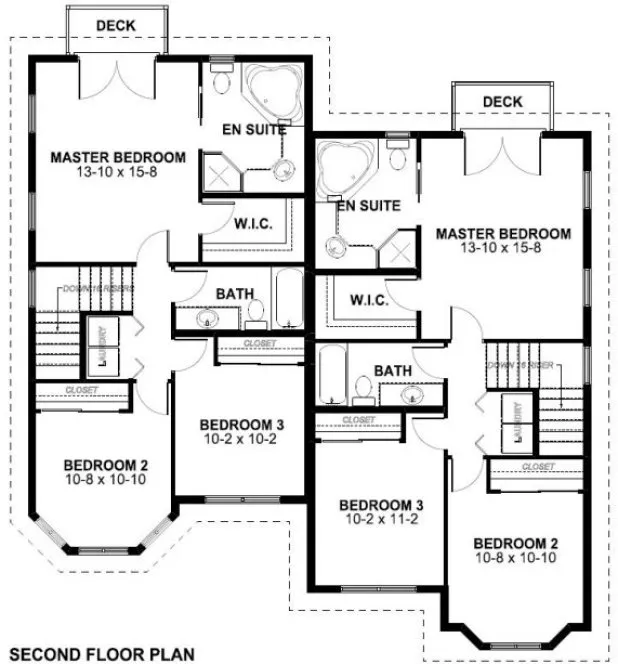

SECOND Plan – westhomeplanners.com

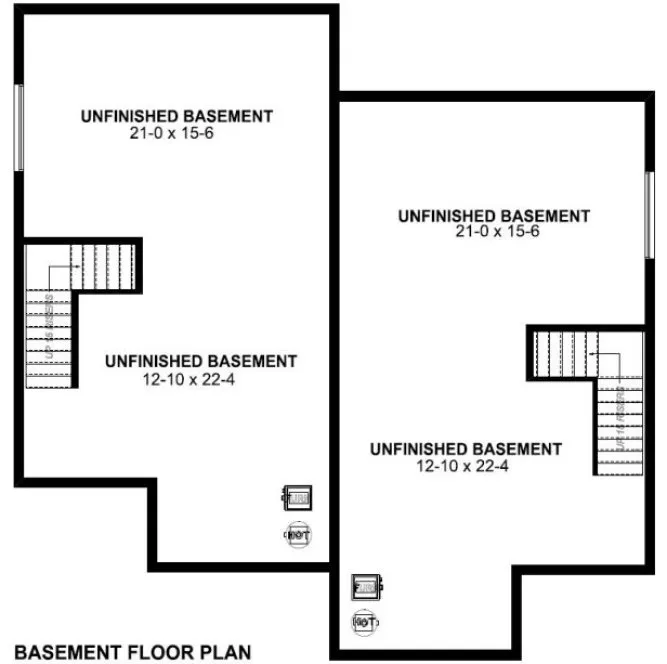

BASEMENT Plan – westhomeplanners.com

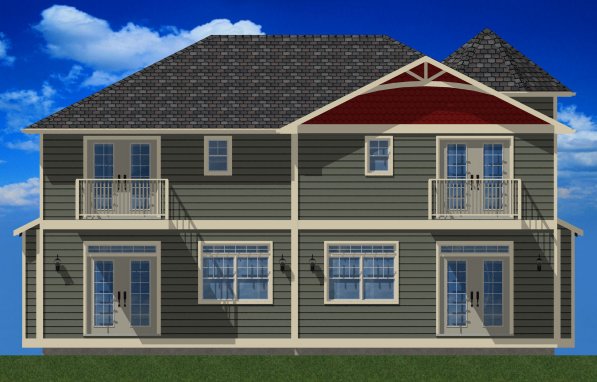

REAR Elevation – westhomeplanners.com

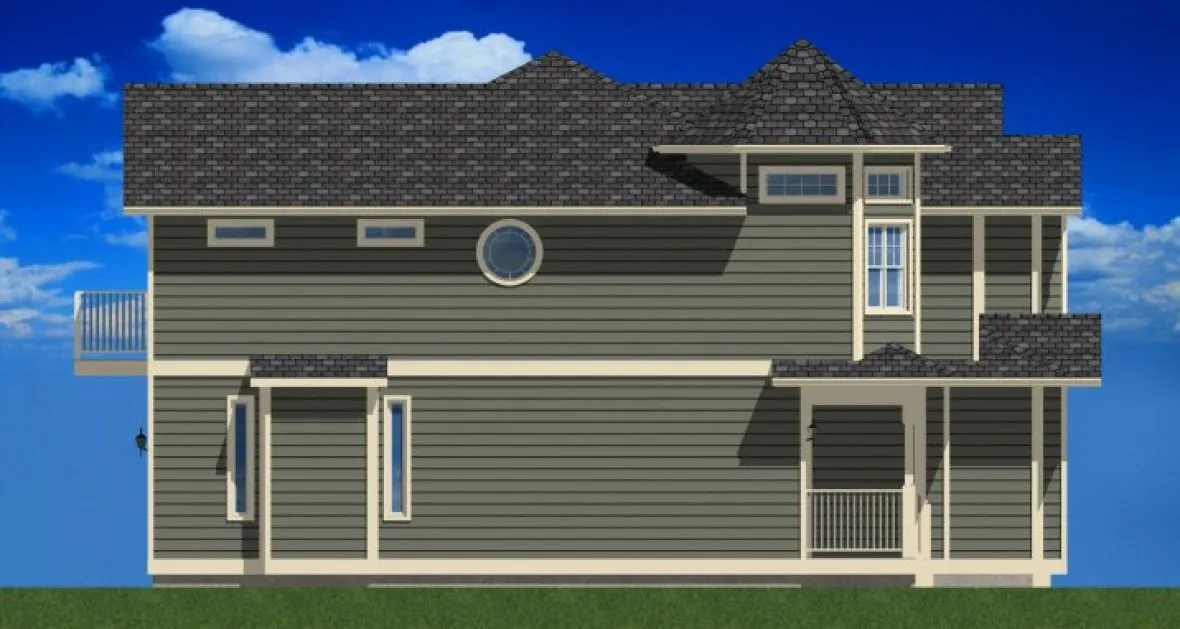

LEFT Elevation – westhomeplanners.com

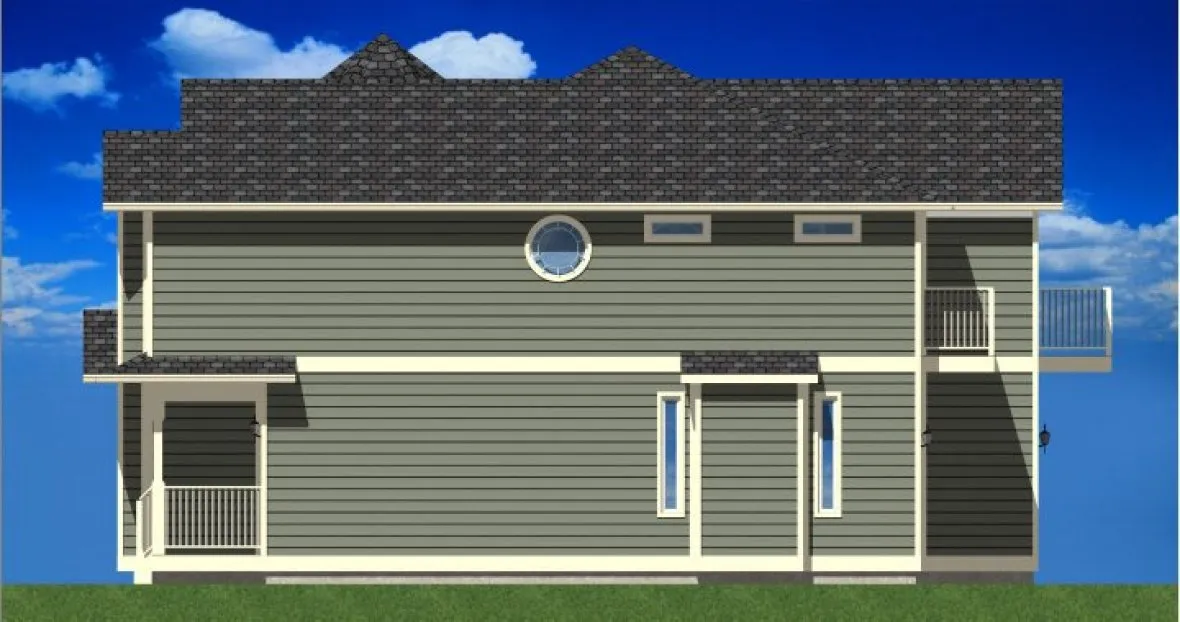

RIGHT Elevation – westhomeplanners.com
