Plan No.322231

Trio of Peaked Gables

A front porch and a trio of peaked gables stamp this two-bedroom home with architectural impact. Architectural characteristics impact the interior too. Flowing spaces maximize the efficiency and comfort of the public spaces. The kitchen is set off by a long angular island, furnished with a sink, dishwasher, and snack counter. To supplement storage, there's an overhead cabinet in the island's left leg. A corner fireplace in the great room creates a cozy ambience. Sliding doors in the dining room link to the patio. Need a formal room or a private retreat? You choose whether you want to furnish the front room as a living room or a den. It can even serve as a third bedroom.


Total 1420 sq ft

  • Main: 1420
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 440


  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 58'0


  • Max Ridge Height: 20'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 7.00/12
  • Secondary Pitch: /12
Full Rendering –

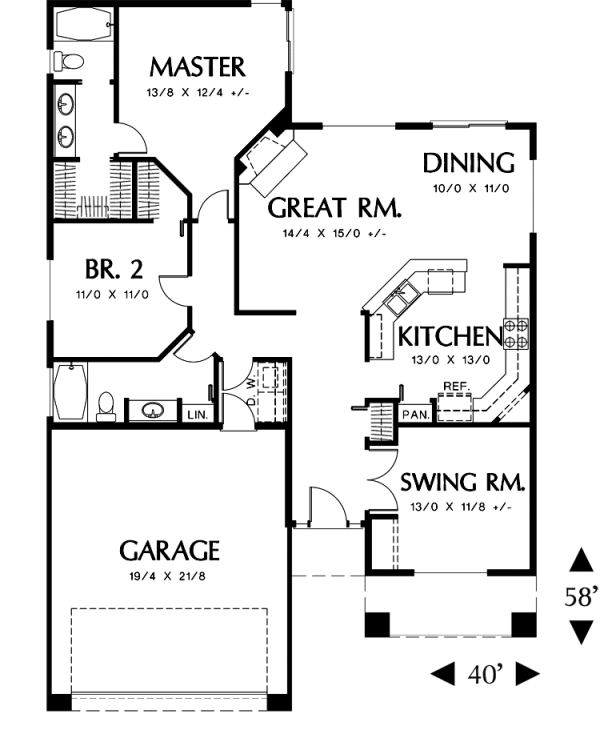

MAIN Plan –

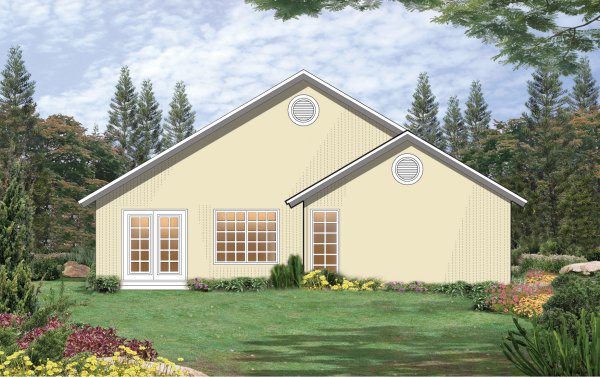

REAR Elevation –
