Plan No.295039

The Perfect Combination

This comfortable duplex masterfully blends versatile, open living spaces for the whole family with a cost-effective plan. Inside, sunlight streams into both the dining and living rooms through dazzling windows. An optional wet bar would make parties great fun. Upstairs, the master suite features an enormous walk-in closet and a private bath with a dual-sink vanity. Area of each unit is as follows: Left unit has a 847 sq. ft. main floor and 742 sq. ft. second for a total of 1589 sq. ft.; Right unit has a main floor of 998 sq. ft. and a second of 893 for a total of 1891 sq. ft.

Specifications

Total 3480 sq ft

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main:
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 67'0
  • Depth: 56'0

Roof

  • Max Ridge Height: 29'0
  • Primary Pitch: /12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

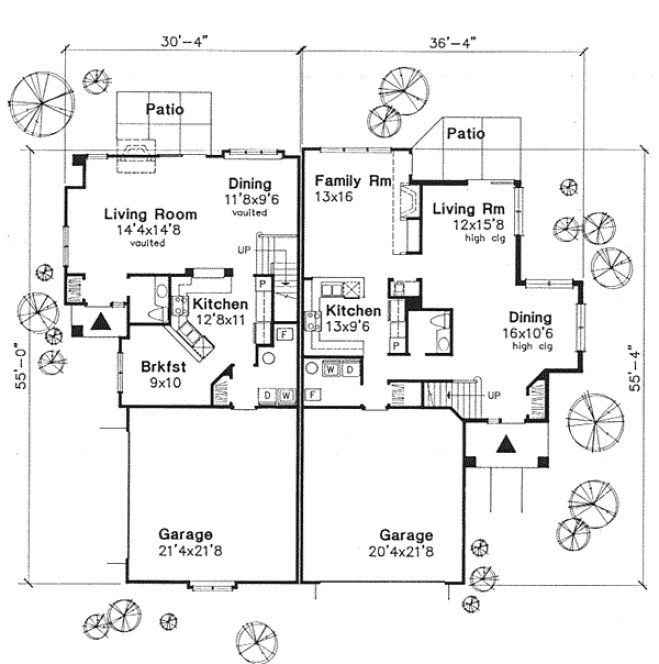

MAIN Plan – westhomeplanners.com

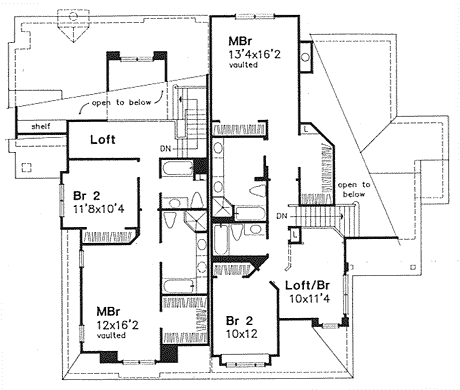

SECOND Plan – westhomeplanners.com
