Plan No.272112

Simple yet Spacious

Simplicity is the key to this 2,111 sq. ft. traditional ranch. It is shown here with an exterior of stucco with stacked stone accents. With outside dimensions of 55' width x 70' depth and a side-loading garage, this would be an ideal plan for a corner lot. This plan boasts both a living room and a less formal family room, with a fireplace. A vaulted ceiling accents the living/dining area. The kitchen features a center work island with range. Measuring 11'x9', the breakfast nook has double French doors leading onto the deck with corner spa. The three secondary bedrooms, two of which feature corner windows, share a hall bath which also has an outside entrance from the spa area. The master bedroom is isolated from the other bedrooms and features separate his and hers walk-in closets and a large master bath with twin vanities, commode closet and separate garden tub and shower.


Total 2111 sq ft

  • Main: 2111
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 440


  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0"
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 10'4"


  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 55'0"
  • Depth: 70'0"


  • Max Ridge Height: 20'0"
  • Comments: ()
  • Primary Pitch: 7.00/12
  • Secondary Pitch: /12
Full Rendering –

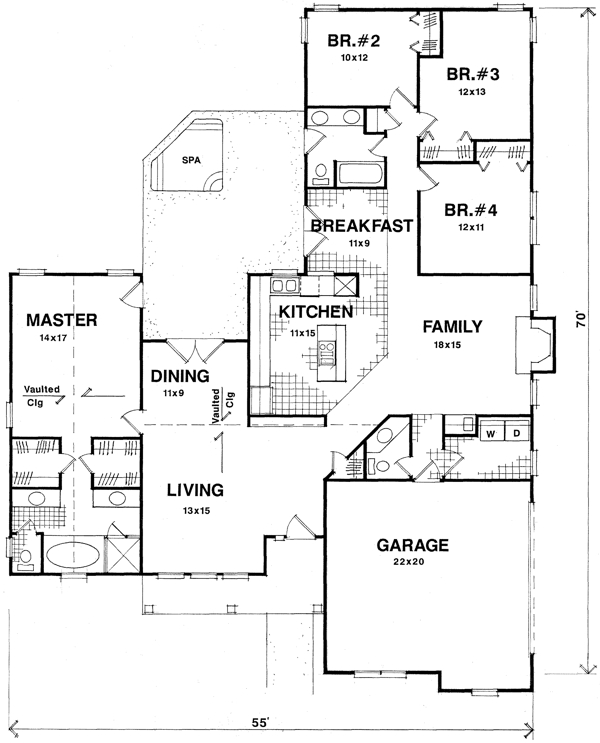

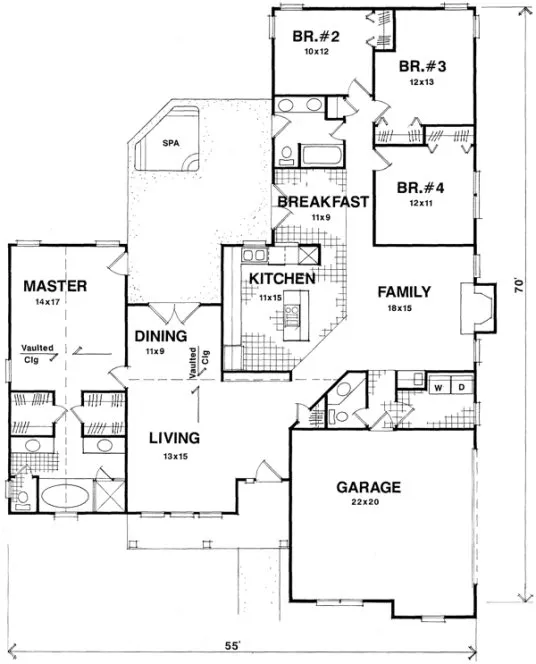

MAIN Plan –
