Plan No.140503

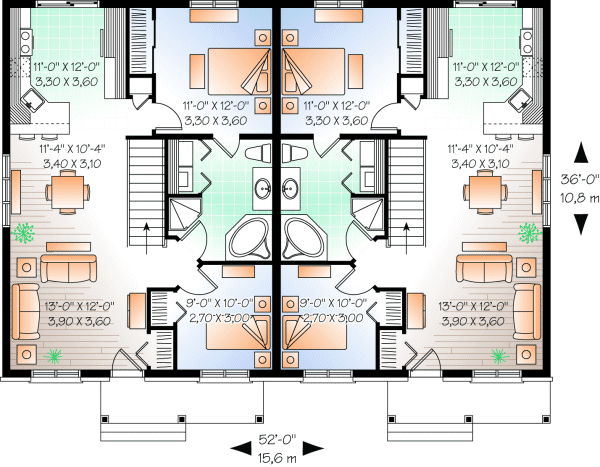

Entirely open activity area. Bathroom with laundry, bath and corner shower. Patio doors in the back at each extremity for more privacy. Different front elevations for both sections. Each unit is 936 sq. ft. on the main floor for a total finished area of 1872 sq. ft.

Specifications

Total 1872 sq ft

  • Main: 936
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 936
  • Garage:

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 52'0
  • Depth: 36'0

Roof

  • Max Ridge Height: 20'6
  • Comments: ()
  • Primary Pitch: /12
  • Secondary Pitch: /12

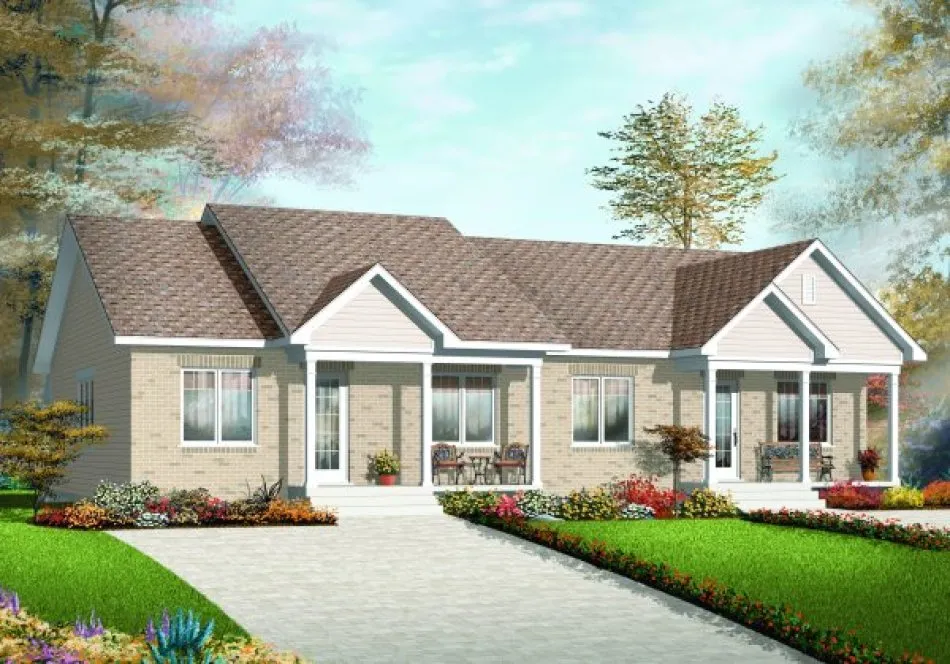

Full Rendering – westhomeplanners.com

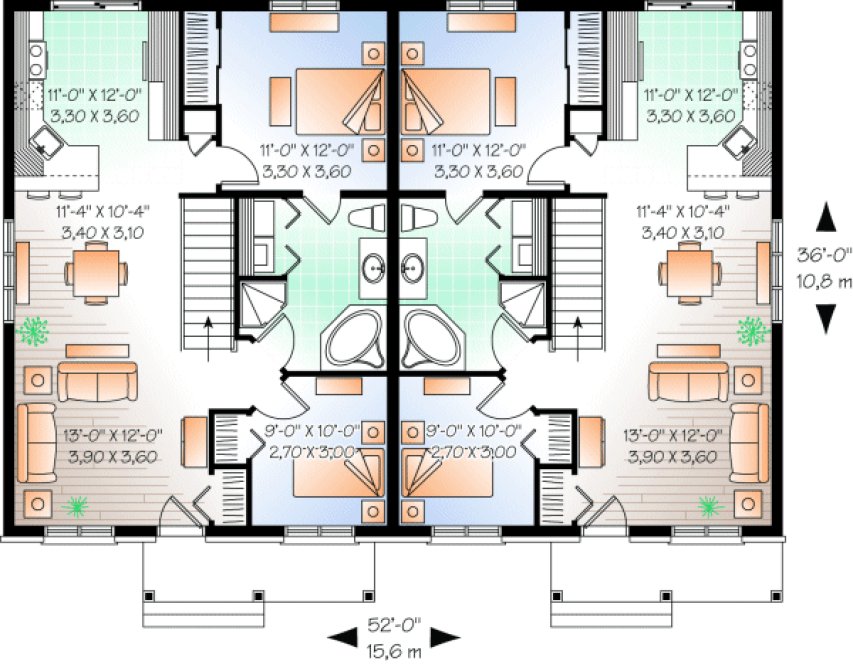

MAIN Plan – westhomeplanners.com

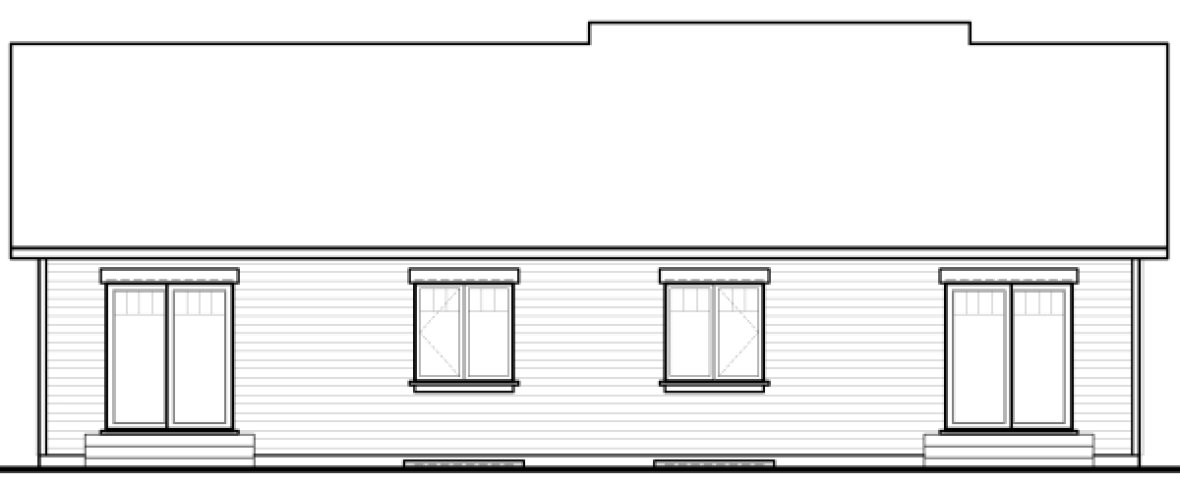

REAR Elevation – westhomeplanners.com
